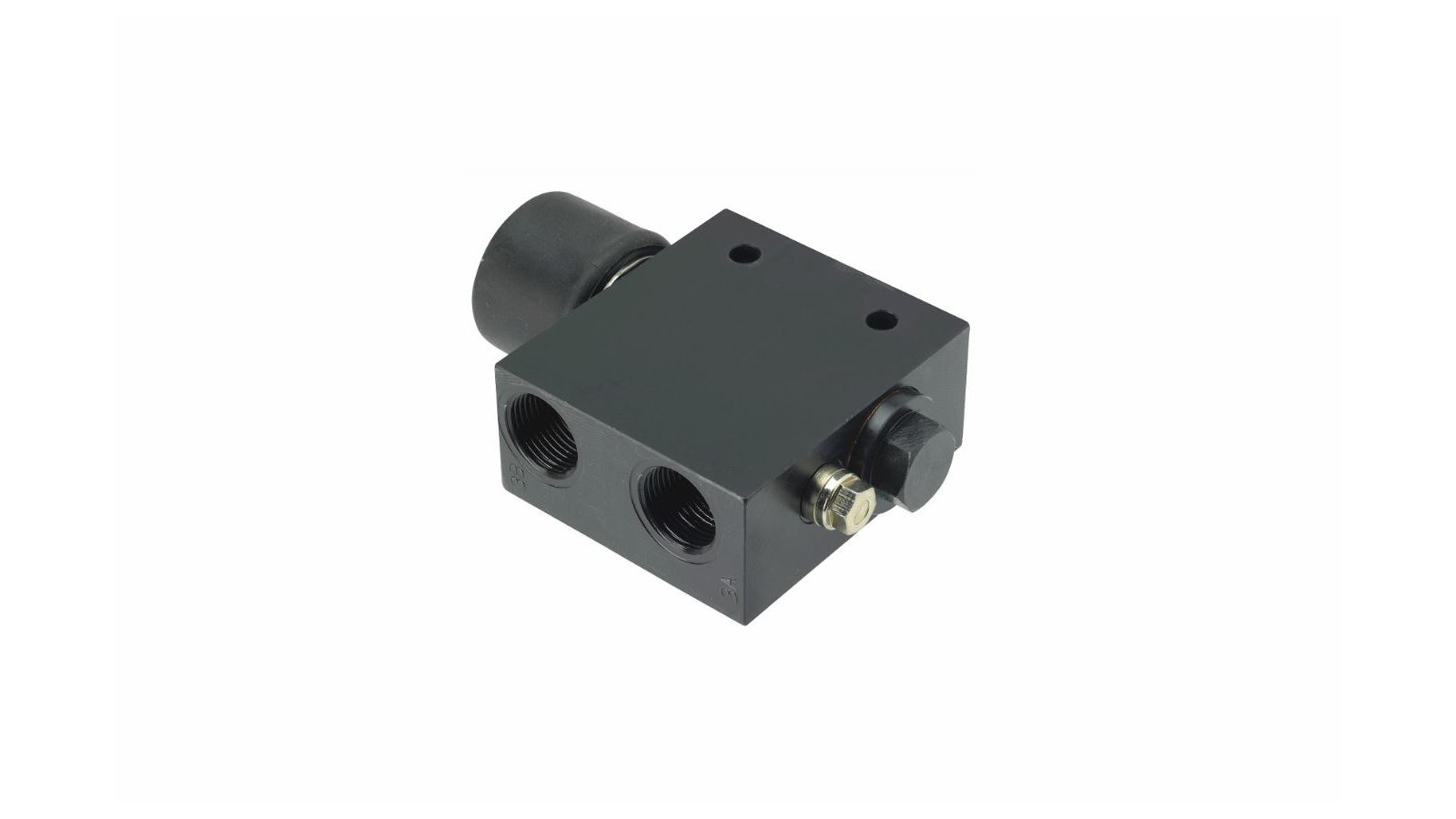

VENTIL TYPE 504/96, 315Bar - MEILLER

504/96
05042040096
61192572600

----------

Width (mm): 45
Weight (kg): 3,8
Height (mm): 100
switching only possible without pressure
pressure switch connection M 10x1 internal thread
Length (mm): 152
Type 504/96
Max. operating pressure (bar): 315
Material: steel
Connection pressure input: M 27x2 internal thread
Connection pneumatic: 6x1
Max. pneumatic pressure (bar): 10
Connection pressure output 1: M 27x2 internal thread
Connection pressure output 2: M 27x2 internal thread
