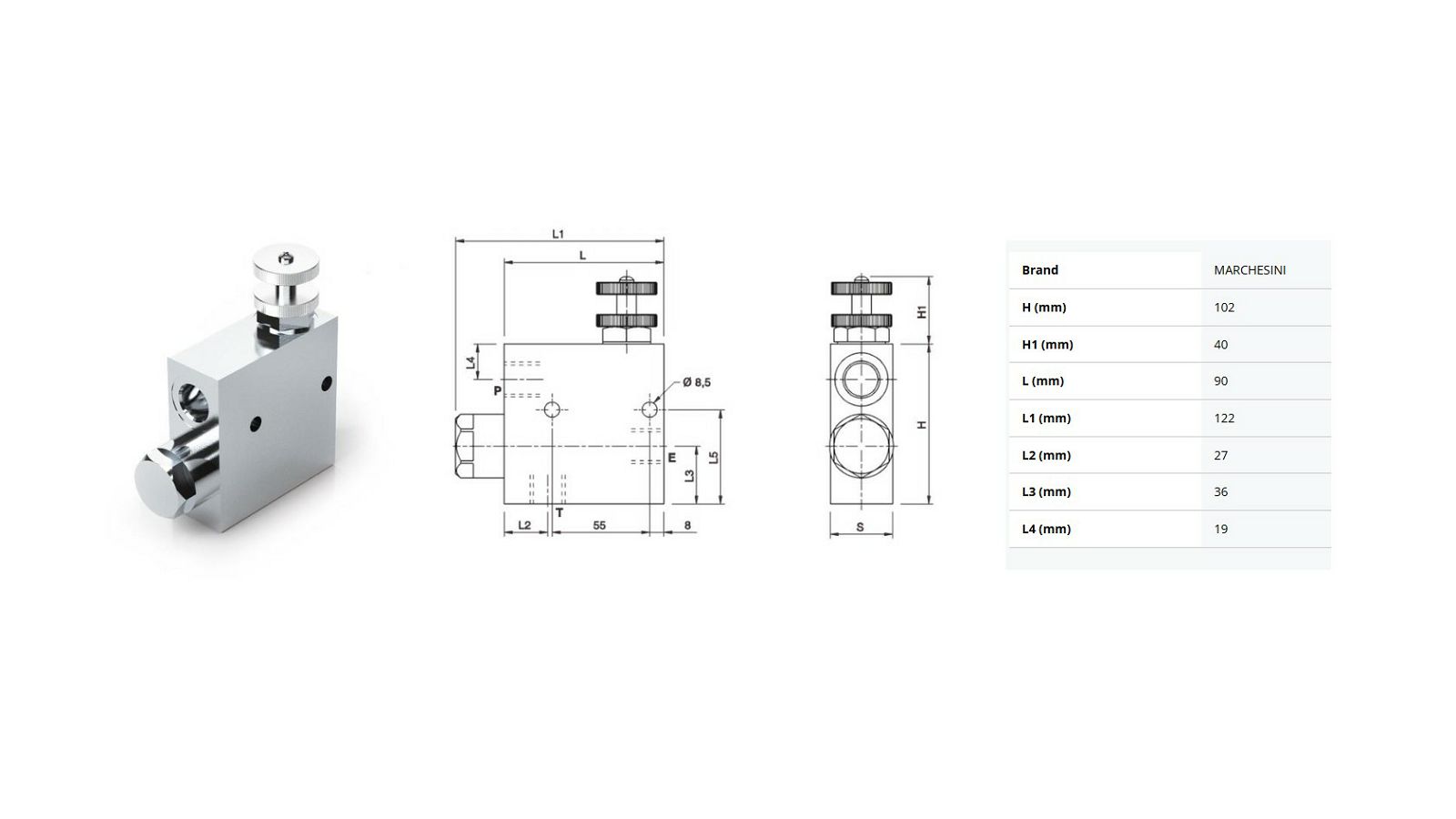

VENTIL REGULACIJE PROTOKA 3/4'' BSP, 100l/min, 350bar

V1130
61100435800

-------------

The priority flow control valve allocates the input oil quantity (E - pressure input) to the oil port P (controlled quantity) depending on the setting of the dial and keeps it constant.
The excess residual oil is drained off to the tank via port T (return).


Connection pressure input (inches)
G 3/4 internal thread

Connection pressure output (inches)
G 3/4 internal thread

Connection return flow (inches)
G 3/4 internal thread

Material
steel

Max. flow rate (l/min)
100

Maximum Flow Rate LPM
120

Max. operating pressure (bar)
350

Setting type
mechanical with rotary knob

Surface
Cr6-free galvanized

Weight (kg)
3,34
