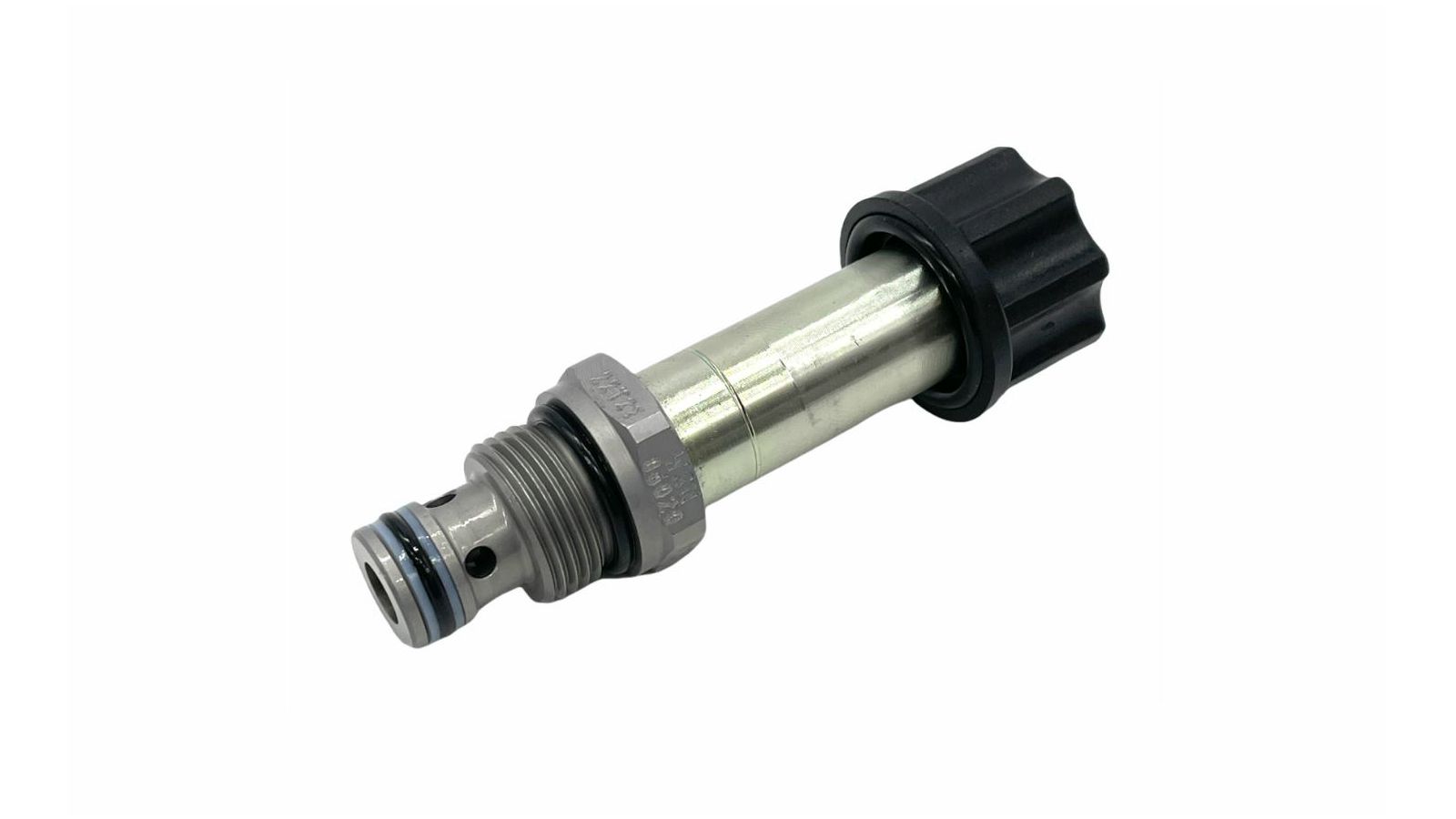

VENTIL PODIZNE RAMPE, 2/2 WAY, 350Bar, M20x1,5 - BAR CARGOLIFT

01.124863
101124863
2501498H
14814329
Sörensen 1: 20 907 305
Sörensen 2: 20907305

-------------

Weight (kg)
0,175

Brand
Haco

Integral thread
M 20x1,5

Max. operating pressure (bar)
350

Function
2/2-way double locked

Usage
liftgate system

Usage
lifting cylinder

fi connection spool (mm)
18

Length connection spool (mm)
40

fi nose (mm)
15

--------------

ZA TIPOVE:

BC601A2V
BC601S2V-T
BC602A2V
BC602S2V-T
BC603A2V
BC603S2V-T
BC502A2V
BC502S2V-T
BC1500H42-G1
2000H42-D1
BC2000H42-H1
BC1500R42-G1
BC1500R42-G3
BC1500R42-G4
BC2000R42-D1
BC2000R42-H1
BC1500H42-D3
BC1500H42-D3
BC1500H42-H3
BC1500H42-H4
BC1500R42-D3
BC1500R42-D4
BC2000H42-D3
BC2000H42-D4
BC2000H42-G3
BC2000H42-G4
BC2000H42-H3
BC2000H42-H4
BC2000R42-D3
BC2000R42-D4
BC2000R42-G3
BC2000R42-G4
BC750S2-R3
BC750S2-R4
BC750S2L-R5
BC750A2L-R3
BC750A2L-R4
BC750A2L-R5
BC1000F2-A3
BC1000F4-A3
BC1500F2-B3
BC1500F4-B3
BC1000S2-M1
BC1000S2-M2
BC1000S2-M3
BC1000S2-M5
BC1500S2-K1
BC1500S2-K2
BC1500S2-K3
BC1500S2-K4
BC1501S2-K3
BC1000S4-A1
BC1000F2-A1
BC1500S4-B1
BC1500S4U-B4
BC1500S4-B4
BC1500F2-B1
BC1500F4-B1
BC2000S4-C1
BC2000S4-C4
BC2000S4A-D1
BC2000S4U-C1
BC1500F2-L2
BC1500H42-G3
BC1500H42-G4
BC2000H42-D1
BC2000R41-D1
BC2500R41-D1
BC1500R2T
BC1500R21-K
BC2000R2T-P1
BC2000R2T-P2
BC2000R2T-P3
BC2000R2T-P4
BC2000R2T-P5
BC1500S4-B3
BC1500S4-B4
BC2000S4-C3
BC2000S4A-D3
BC2000S4A-D4
BC3000S4-S3
BC1000S4-A3
BC1000S4-A4
BC1500S4L-A4
BC2000S4A-D4
BC2000S4U-W3
BC2000S4U-W4
