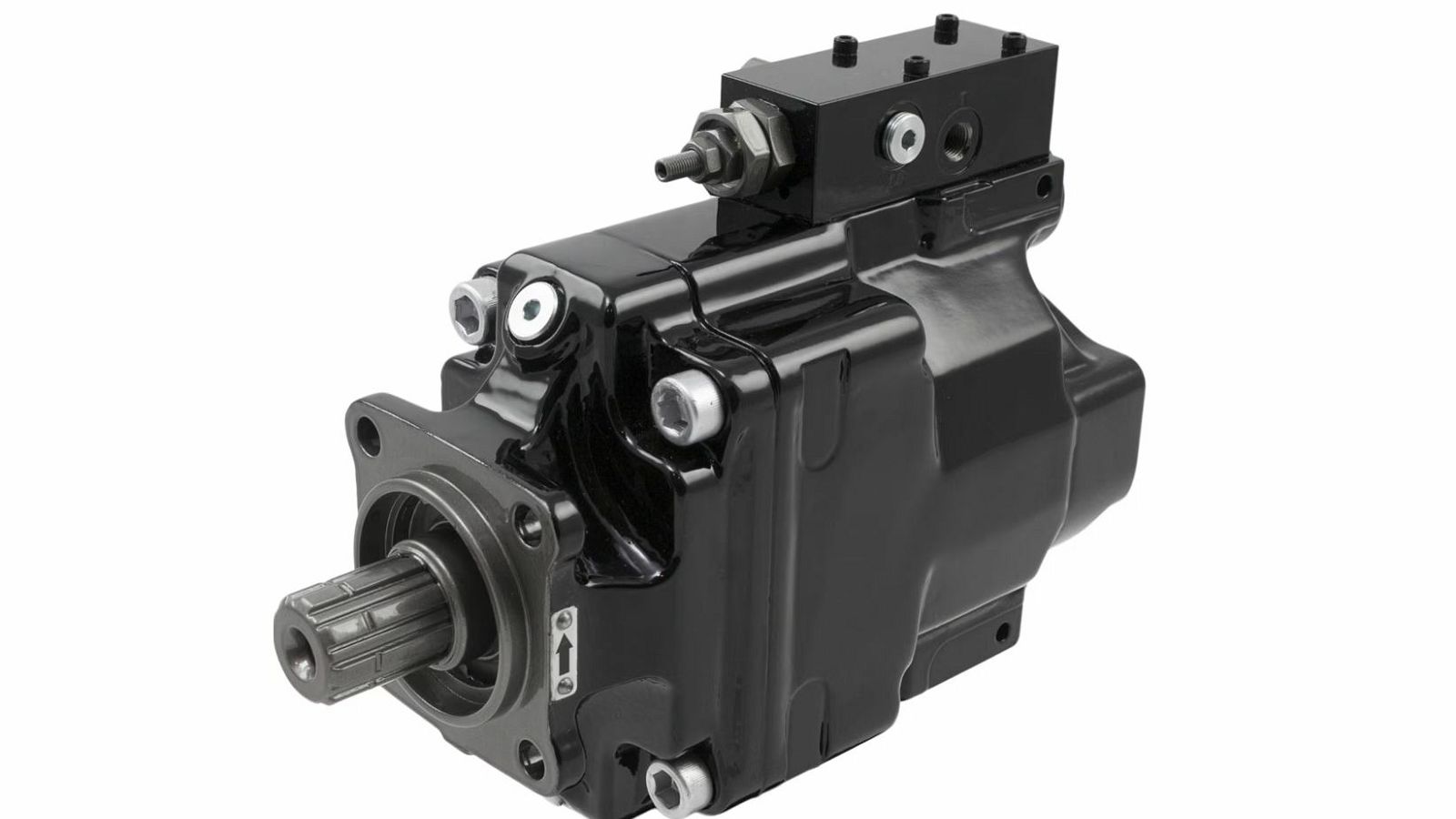

VARIJABILNA PUMPA VP1-130 L, 130cm3/r, LIJEVA - PARKER

3783183
VP1-130L
VP1-120-LA-ZX-Z-000
3786849
61100335900

--------

Weight (kg)
27,048

Brand
Parker

Operating pressure (bar)
400

Max. revolution (rpm)
1900

Direction of rotation changeable
no

Max. pressure (bar)
420

Delivery rate (cm3/r)
130

Direction of rotation
left

Standard drive DIN
5462

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm

Type
VP1-130 L

Differential pressure valve (bar)
15-40

Suction connection
clamped

Pressure connection
1 inch internal thread

Leakage oil connection
1/4 inch internal thread

Running fit connection (inches)
1/4 internal thread

Material housing
cast steel
