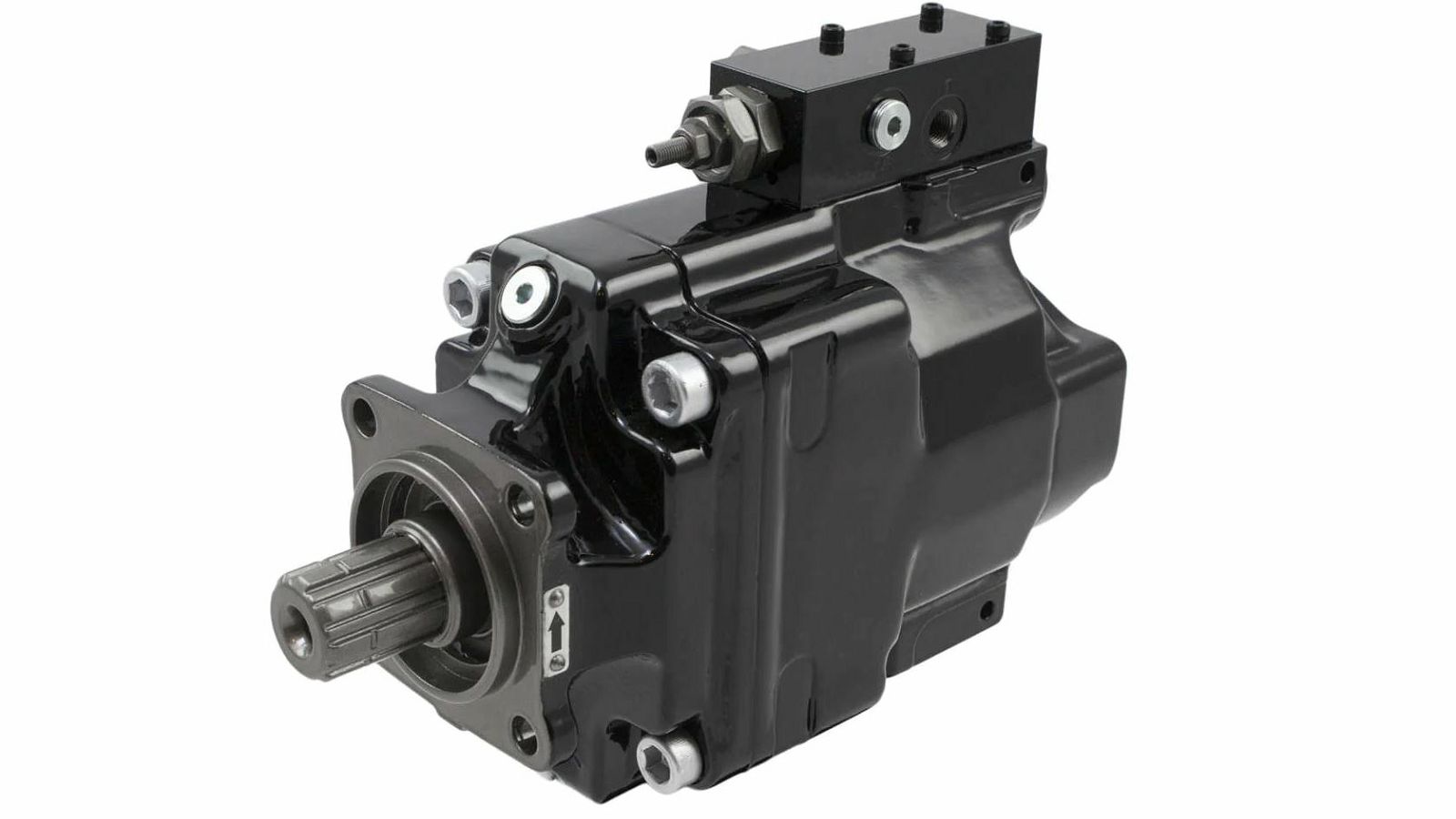

VARIJABILNA PUMPA VP1-120 R, 120cm3/r, DESNA - PARKER (ZAMJENA VP1-130R - 130963)

3783182
3784500
VP1-130R
VP1-120-RA-ZX-Z-000


-------

Assembly flange drive
4-hole 80x80 mm

Brand
Parker

Delivery rate (cm3/r)
120

Differential pressure valve (bar)
< 35

Direction of rotation
right

Direction of rotation changeable
no

Leakage oil connection
3/8 inch internal thread

Material housing
cast steel

Max. pressure (bar)
380

Max. revolution (rpm)
1900

Max. torque (Nm)
680

Operating pressure (bar)
360

Pressure connection
1 inch internal thread

Running fit connection (inches)
1/4 internal thread

Specification drive
shaft 8x32x36

Standard drive
DIN 5462

Suction connection
clamped

Type
VP1-120-R

Weight (kg)
27,9
