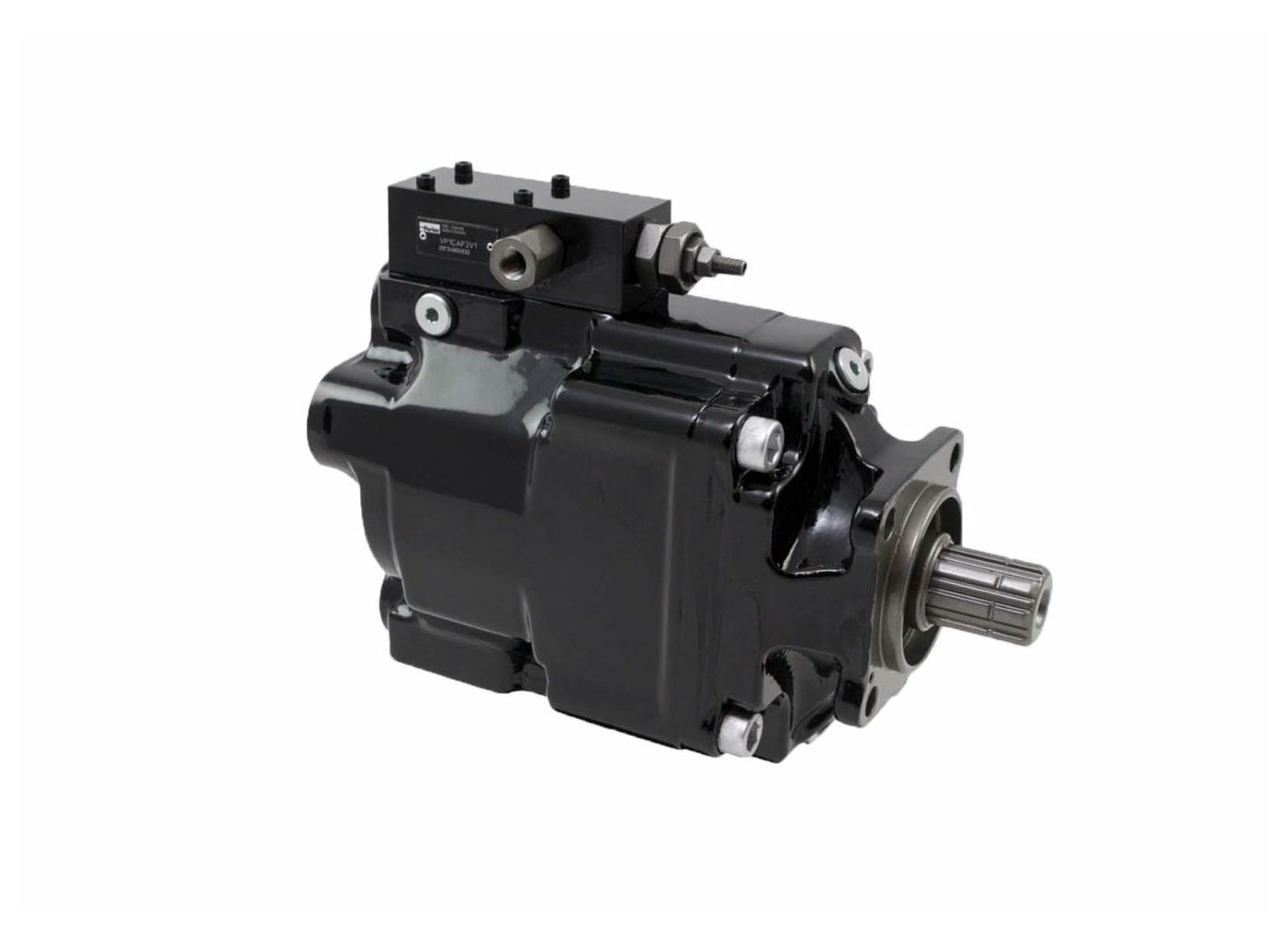

VARIJABILNA PUMPA VP1-110-L, 110cm3/r, LIJEVA - PARKER

3784111
VP1-110-L
3783815 - CRNO OBJANA PUMPA
VP110L
TXV120HPL
0515705
60802305
TXV1200515705
EP945L
VP1-110-L3784111
KVA7VO107DRS/63L-MEK64
A18VO107DRS00/1
11NLWK0E8100
R902230084
61100457300
senzor opterećenja VP1-110-LA-ZX-Z-000 VP1110LAZXZ000

---------------

Weight (kg)
27

Brand
Parker

Operating pressure (bar)
400

Max. revolution (rpm)
1900

Direction of rotation changeable
no

Max. pressure (bar)
400

Delivery rate (cm3/r)
110

Direction of rotation
left

Standard drive DIN
5462

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm

Type
VP1-110 L

Differential pressure valve (bar)
15-40

Suction connection
clamped

Pressure connection
1 inch internal thread

Leakage oil connection
1/4 inch internal thread

Running fit connection (inches)
1/4 internal thread

Material housing
cast steel
