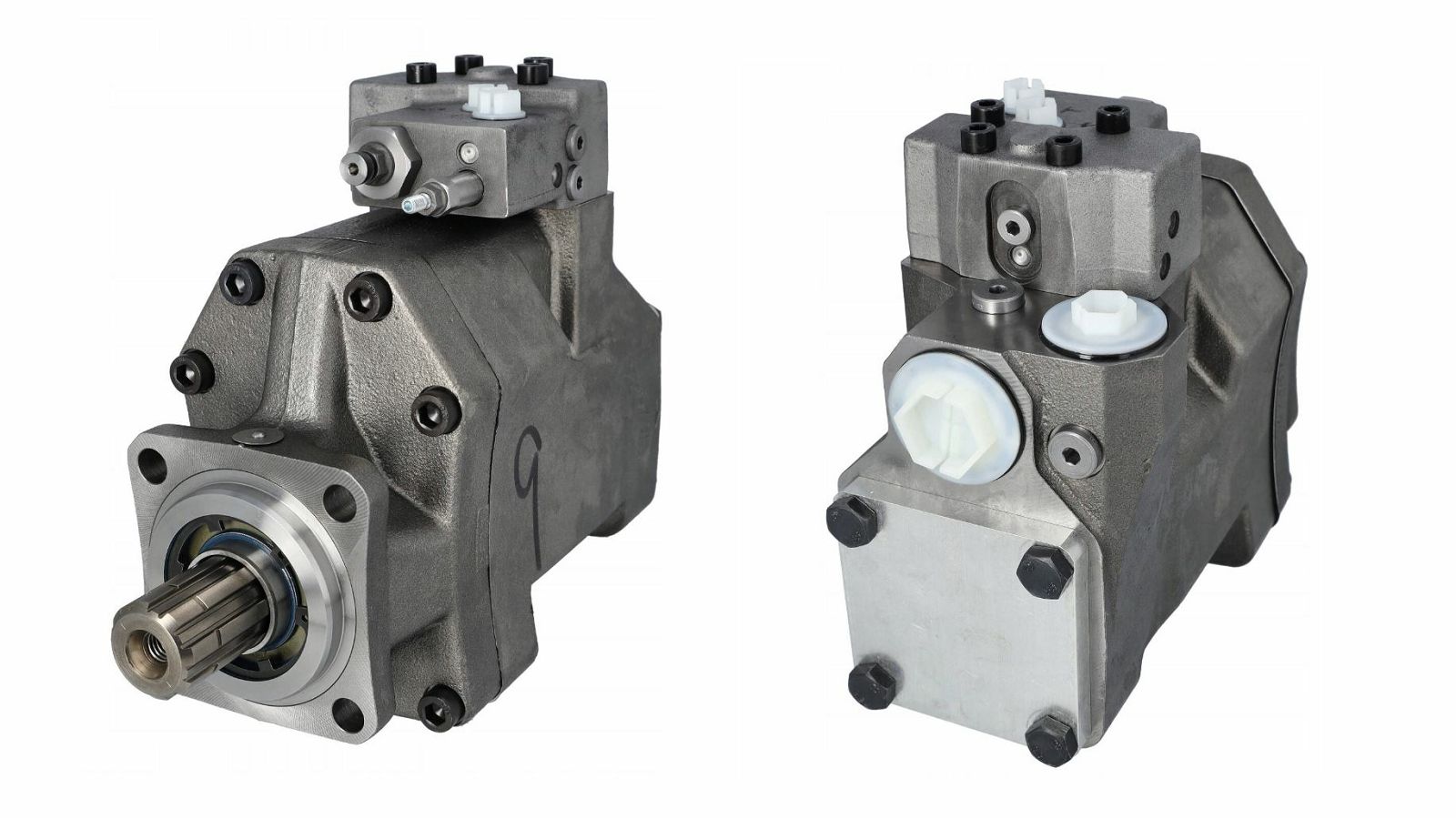

VARIJABILNA PUMPA, VP1-095-R, 95cm3/r, DESNA (POJAČANA 4 VIJKA NAPRIJED) - PARKER

3786003
VP1-095-R
61100463900

---------

Weight (kg)
27,198

Brand
Parker

Operating pressure (bar)
400

Max. torque (Nm)
375

Max. revolution (rpm)
2200

Direction of rotation changeable
no

Max. pressure (bar)
420

Delivery rate (cm3/r)
95

Direction of rotation
right

Standard drive DIN
5462

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm

Type
VP1-095-R

Differential pressure valve (bar)
{lt} 35

Suction connection
clamped

Pressure connection
1 inch internal thread

Leakage oil connection
1/4 inch internal thread

Running fit connection (inches)
1/4 internal thread

Material housing
cast steel
