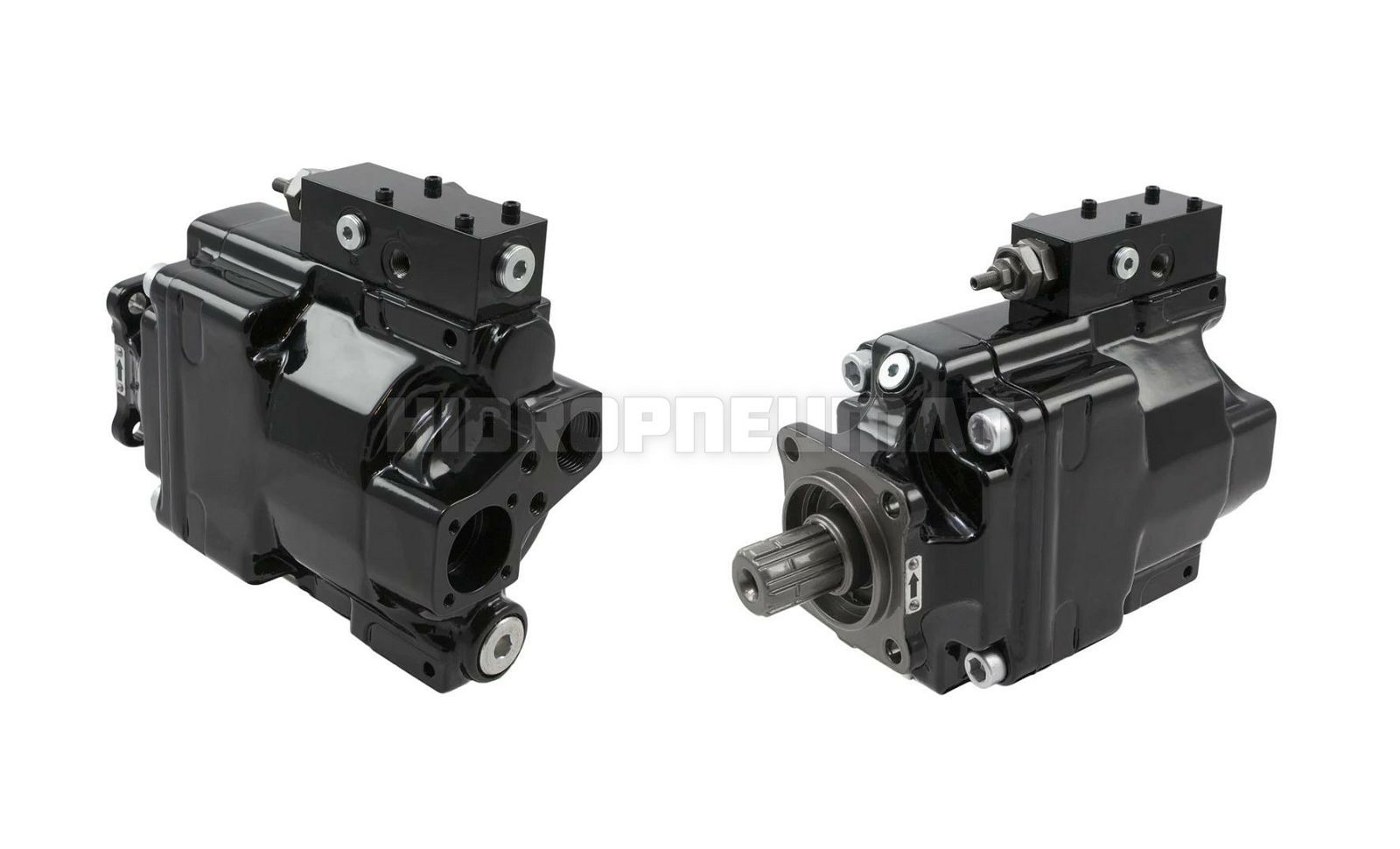

VARIJABILNA PUMPA VP1-095-R, 95cm3/r, DESNA - PARKER

3786000
VP1-095-R
VP1095R
0512520
61100012800
TXV92R
EP770R
60802304
KVA7VO80DRS/63R-MEK64
A18VO080DRS00/11NRWK0E810-0
TXV-92
0512525
SVH-092
SVH92
VP1-095
VP1-95
3786001; 3786002; 3786003; 3788066
10805000903OMFB

---------------

Max. torque (Nm)
375

Max. revolution (rpm)
2200

Direction of rotation changeable
no

Delivery rate (cm3/r)
95

Direction of rotation
right

Standard drive DIN
5462

Differential pressure valve (bar)
{lt} 35

Pressure connection
1 inch internal thread

Running fit connection (inches)
1/4 internal thread

Type
VP1-095-R

Weight (kg)
27

Operating pressure (bar)
400

Brand
Parker

Suction connection
clamped

Max. pressure (bar)
420

Material housing
cast steel

Leakage oil connection
1/4 inch internal thread

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm
