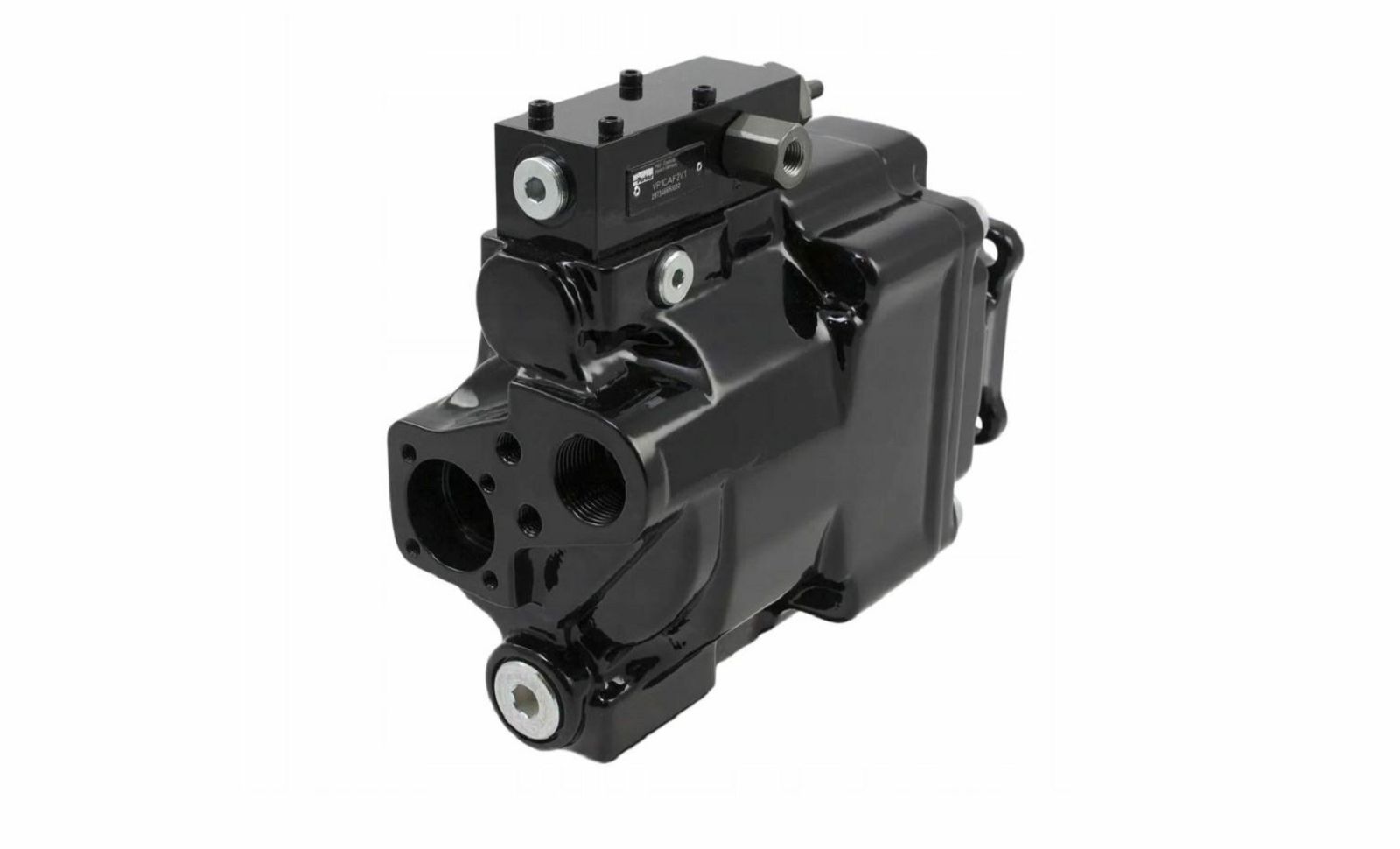

VARIJABILNA PUMPA VP1-075-L, 75cm3/r, LIJEVA - PARKER

3780337
VP1-075-L
VP01-075-L
TXV60; TXV-60;
0512500
0512505
SVH-062
SVH62
VP1-75
3786172
3780337
3780336
3786171


Max. torque (Nm)
375

Max. revolution (rpm)
2100

Direction of rotation changeable
no

Delivery rate (cm3/r)
75

Direction of rotation
left

Standard drive DIN
5462

Differential pressure valve (bar)
{lt} 35

Pressure connection
1 inch internal thread

Running fit connection (inches)
1/4 internal thread

Type
VP1-075-L

Assembly flange drive
4-hole 80x80 mm

Weight (kg)
27

Operating pressure (bar)
350

Brand
Parker

Suction connection
1 1/4 inch internal thread

Max. pressure (bar)
400

Material housing
cast steel

Leakage oil connection
1/4 inch internal thread

Specification drive
shaft 8x32x36
