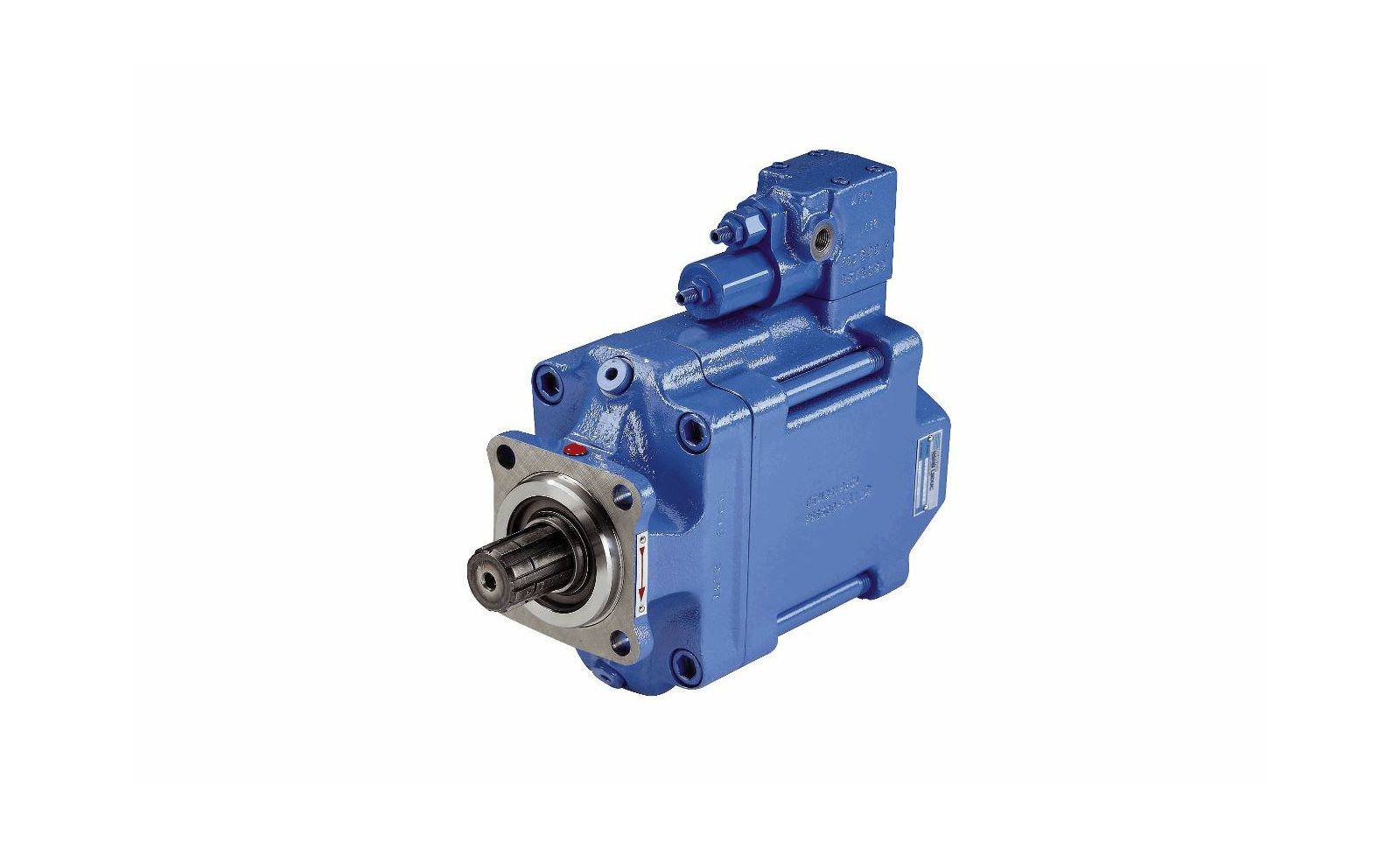

VARIJABILNA PUMPA TXV92R, 92cm3/r, DESNA - HYDRO LEDUC

0512520
61100012800
TXV92R
EP770R
60802304
VP1-095-R
3786000
KVA7VO80DRS/63R-MEK64
A18VO080DRS00/11NRWK0E810-0
TXV-92
0512525
SVH-092
SVH92
VP1-095
VP1-95
VDPP90R
3786001; 3786002; 3786003; 3788066
10805000903OMFB

-----------------


Max. torque (Nm)
483

Max. revolution (rpm)
1900

Direction of rotation changeable
no

Delivery rate (cm3/r)
92

Direction of rotation
right

Standard drive DIN
5462

Differential pressure valve (bar)
{lt} 40

Pressure connection
3/4 inch internal thread

Running fit connection (inches)
1/4 internal thread

Type
TXV 92 R

Weight (kg)
26,575

Operating pressure (bar)
330

Suction connection
1 1/2 inch internal thread

Max. pressure (bar)
400

Material housing
cast steel

Leakage oil connection
3/8 inch internal thread

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm
