VARIJABILNA PUMPA TXV150 (PROMJENJIVI SMJER) - HYDRO LEDUC

TXV150P001475
P001475
TXV150BI-P001475
61100436800

--------

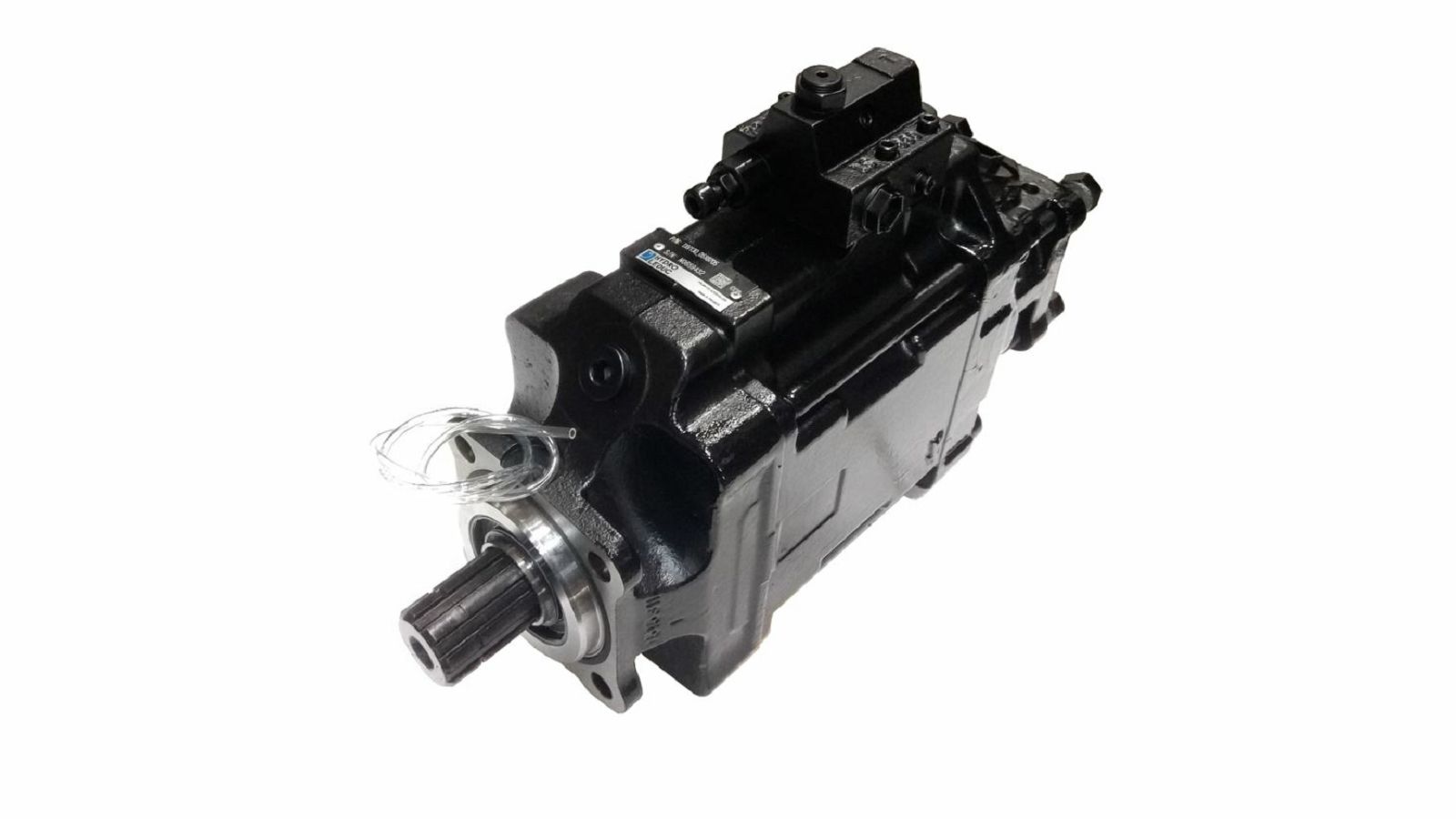

Variable pump with axial piston rotary group for special use in commercial vehicles
The volume flow is proportional to the drive speed and the displacement volume.
By adjusting the swivel angle, the volume flow can be changed continuously.

--------

Weight (kg)
29,3

Brand
Leduc

Operating pressure (bar)
310

Max. torque (Nm)
840

Max. revolution (rpm)
1900

Direction of rotation changeable
yes

Max. pressure (bar)
310

Delivery rate (cm3/r)
150

Direction of rotation
left/right

Standard drive DIN
5462

Specification drive
spline shaft B8x32x36

Assembly flange drive
4-hole 80x80 mm

Type
TXV 150

Differential pressure valve (bar)
{lt} 40

Suction connection
1 1/2 inch internal thread

Pressure connection
1 inch internal thread

Leakage oil connection
1/2 inch internal thread

Running fit connection (inches)
1/4 internal thread

Material housing
cast steel
