0515700
TXV120HPR
60802306
TXV-120
EP945R
VP1-110-R
0512705
3784110
SVH-112
SVH112
KVA7VO107DRS/63R-MEK64
A18VO107DRS00
VDPP110R
R902191760
10805001108
61100045800
Weight (kg):26.66
Brand Leduc
Operating pressure (bar): 300
Max. torque (Nm): 680
Max. revolution (rpm): 1900
Direction of rotation changeable: no
Max. pressure (bar): 350
Delivery rate (cm3/r): 120
Direction of rotation :right
Standard drive DIN 5462
Specification drive: shaft 8x32x36
Assembly flange drive: 4-hole 80x80 mm

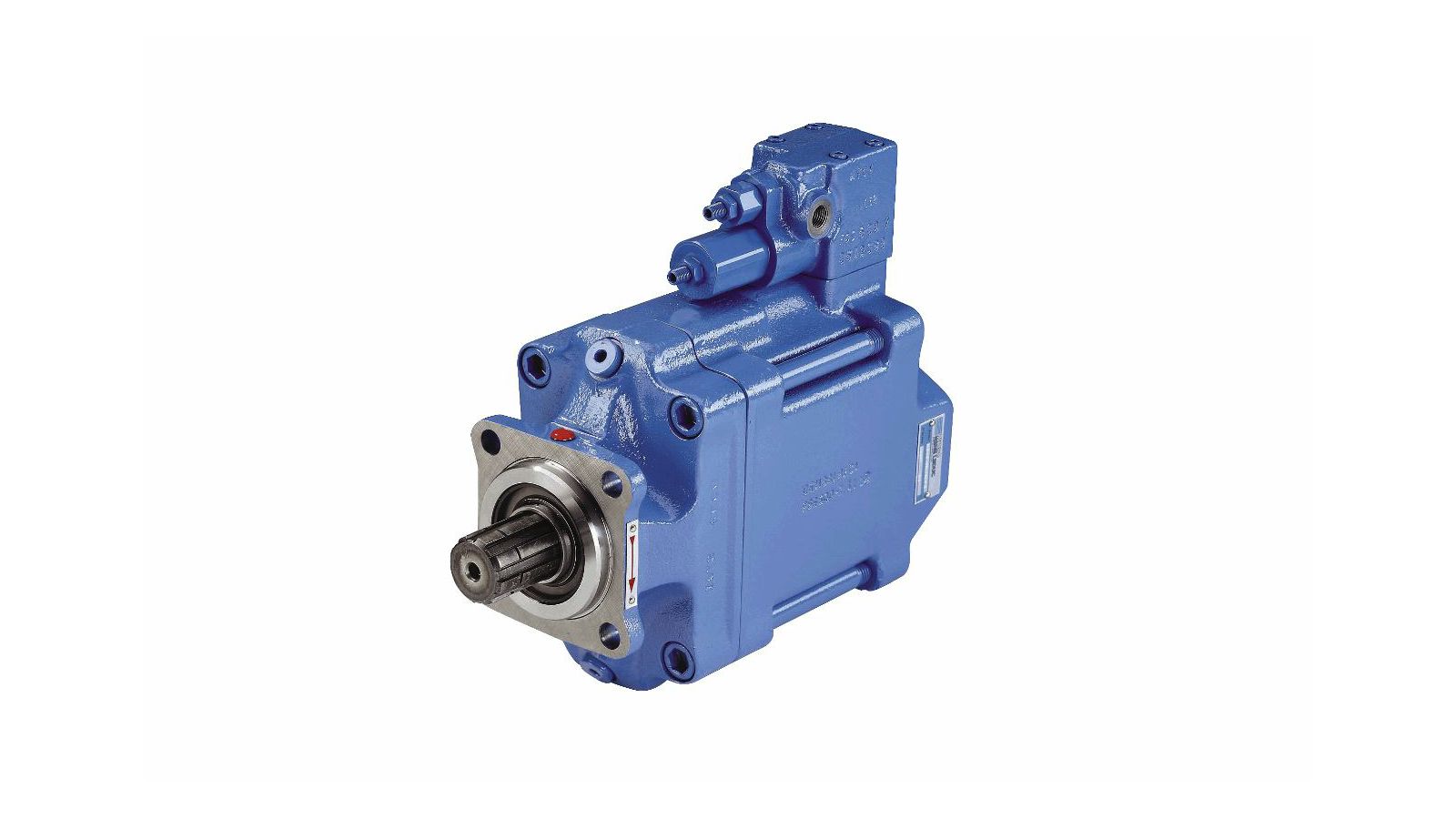

Type TXV 120 HP R
Differential pressure valve (bar): {lt} 40
Suction connection: 1 1/2 inch internal thread
Pressure connection :1 inch internal thread
Leakage oil connection :3/8 inch internal thread
Running fit connection (inches) :1/4 internal thread
Material housing :cast steel
