TXV120HPL
0515705
60802305
TXV1200515705
EP945L
VP1-110-L3784111
3784111
KVA7VO107DRS/63L-MEK64
A18VO107DRS00/1
11NLWK0E8100
R902230084
VDPP110L
SVH-112
SVH112
10805001117
0512700
61100045900
Weight (kg)
26.66
Brand
Leduc
Operating pressure (bar)
300
Max. torque (Nm)
680
Max. revolution (rpm)
1900
Direction of rotation changeable
no
Max. pressure (bar)
350
Delivery rate (cm3/r)
120
Direction of rotation
left
Standard drive DIN
5462
Specification drive
shaft 8x32x36
Assembly flange drive
4-hole 80x80 mm
Type

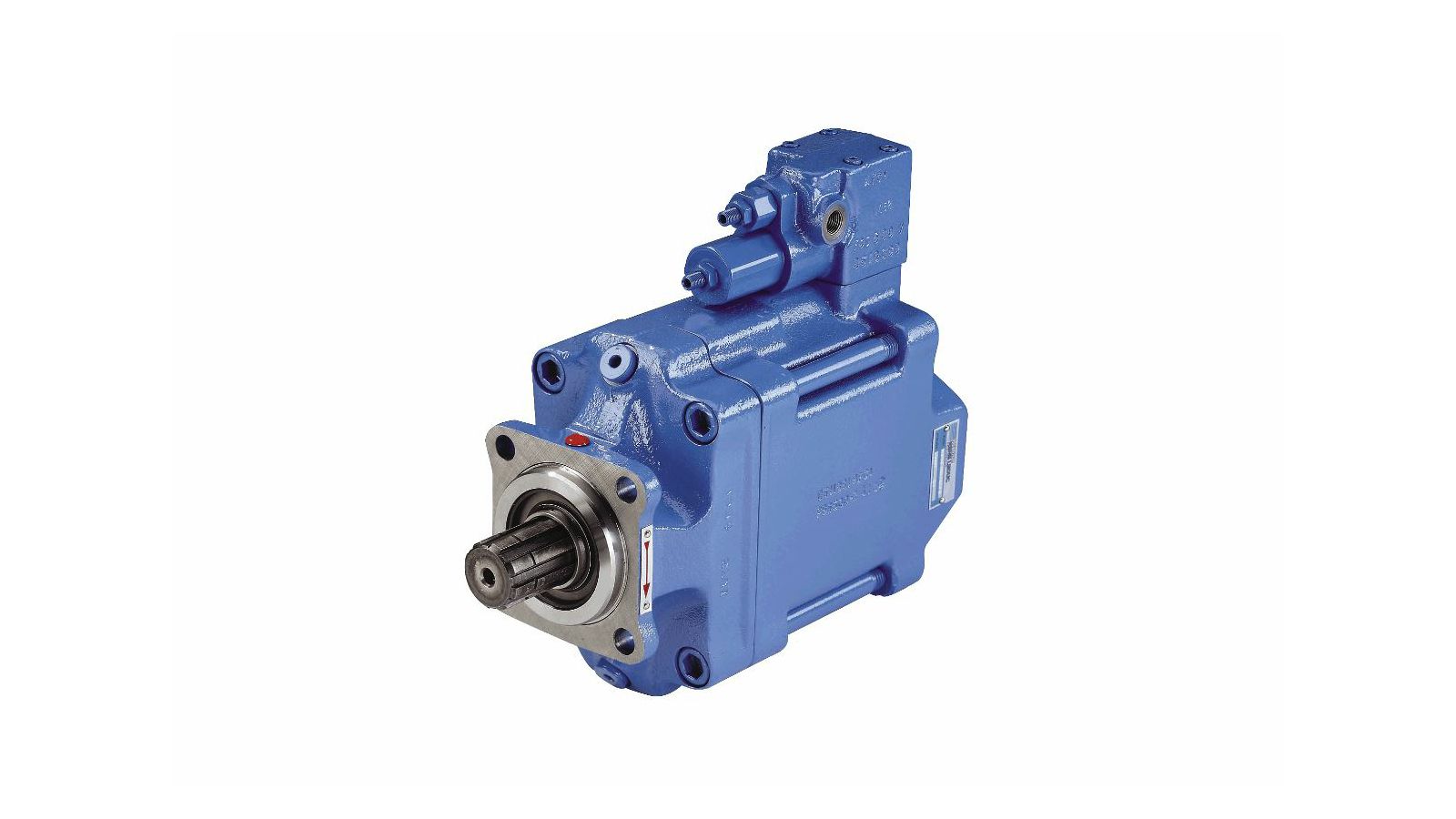

TXV 120 HP L
Differential pressure valve (bar)
{lt} 40
Suction connection
1 1/2 inch internal thread
Pressure connection
1 inch internal thread
Leakage oil connection
3/8 inch internal thread
Running fit connection (inches)
1/4 internal thread
Material housing
cast steel
