0513130
TXV120HPR
Max. torque (Nm)
680
Max. revolution (rpm)
1900
Direction of rotation changeable
no
Delivery rate (cm3/r)
120
Direction of rotation
right
Standard drive DIN
5462
Differential pressure valve (bar)
{lt} 40
Pressure connection
1 inch internal thread
Running fit connection (inches)
1/4 internal thread
Type

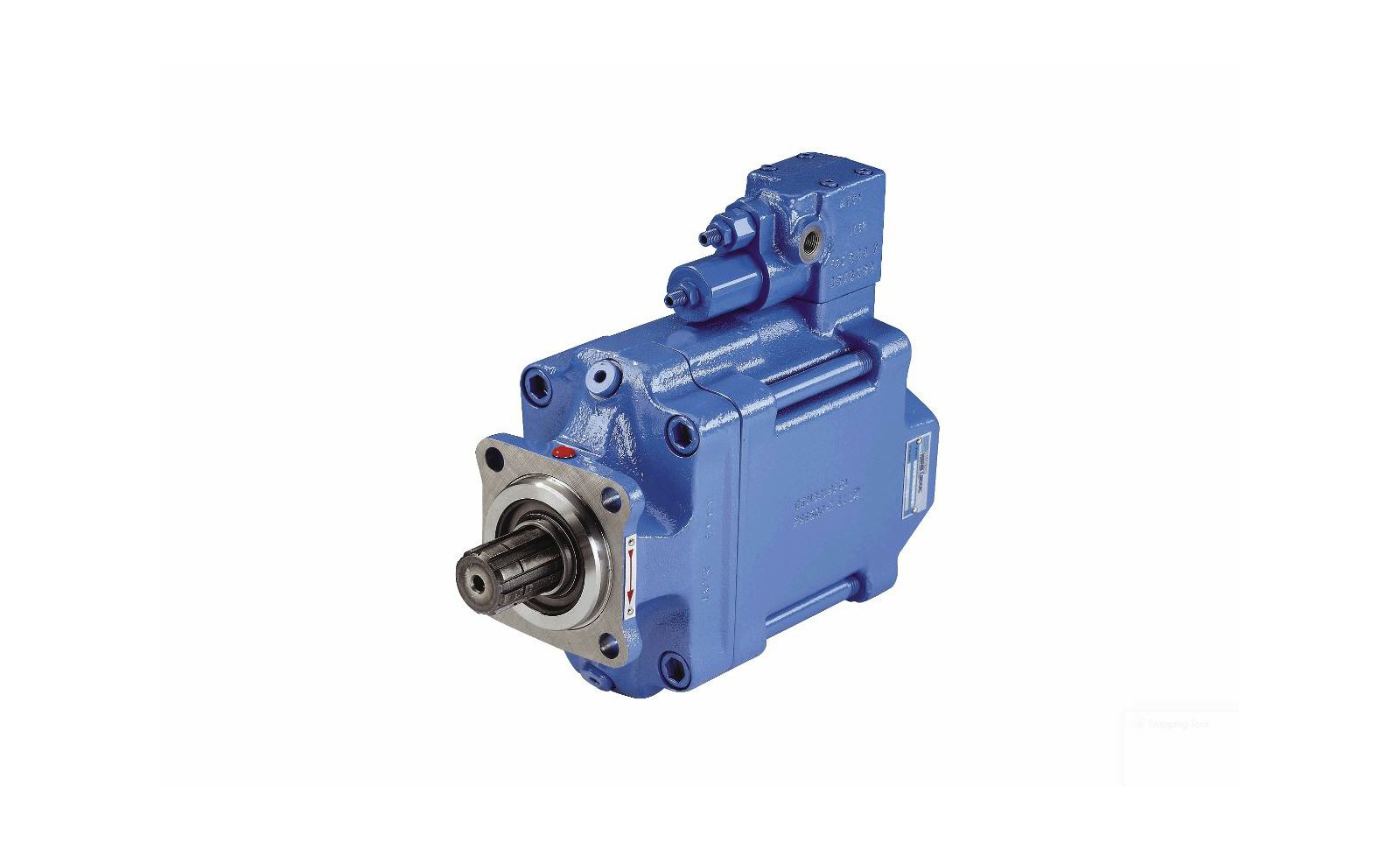

TXV 120 HP R
Assembly flange drive
4-hole 80x80 mm
Weight (kg)
26,66
Operating pressure (bar)
300
Brand
Leduc
Suction connection
1 1/2 inch internal thread
Max. pressure (bar)
350
Material housing
cast steel
Leakage oil connection
3/8 inch internal thread
Specification drive
shaft 8x32x36
