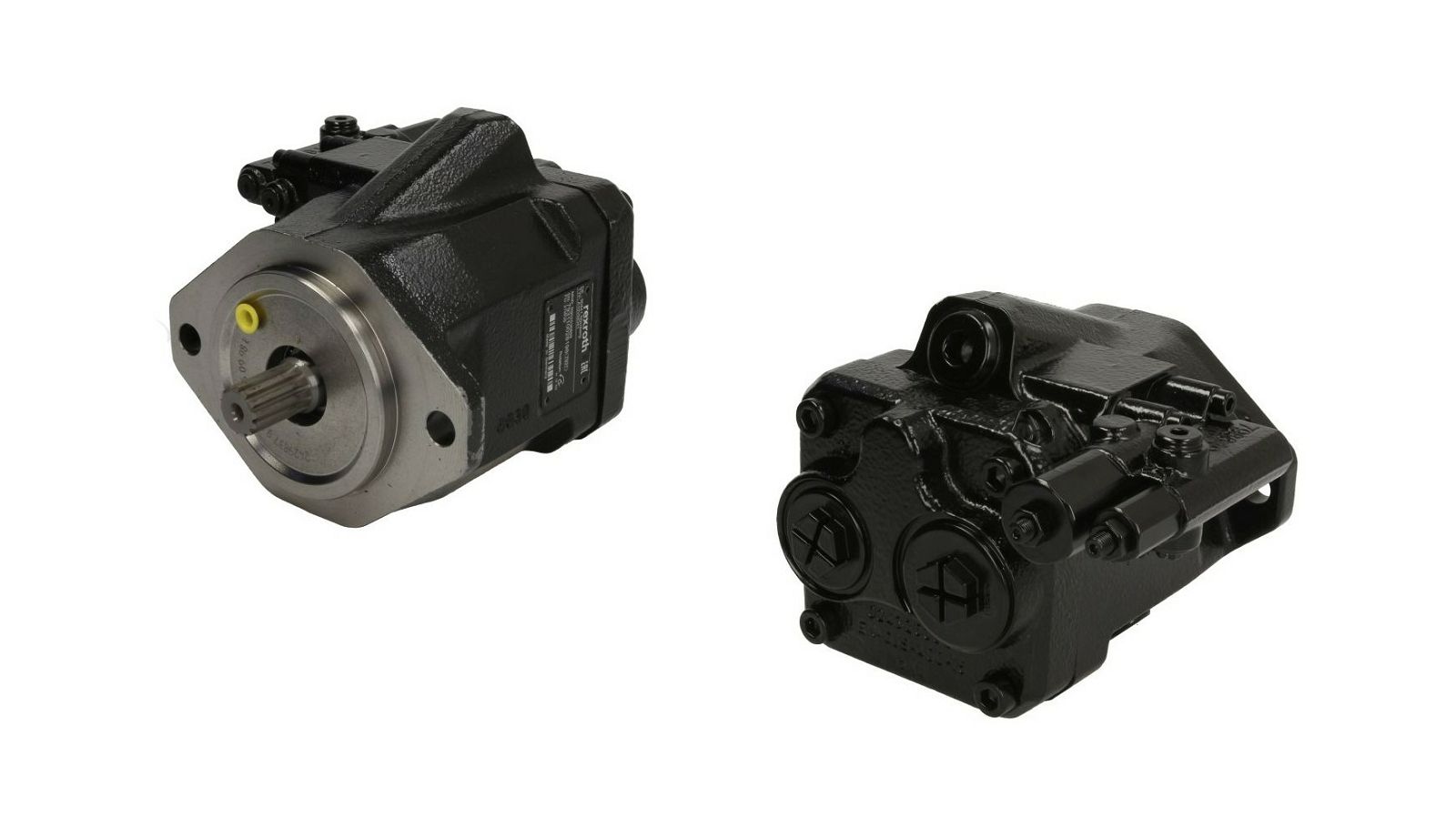

VARIJABILNA PUMPA CASE IH MX 1004-40TW/6-359 - BOSCH REXROTH

R902536859
52L-HRC40N00E BOSCH
R902429741 BOSCH
R902536860 BOSCH
RLA10VNO41DFR1 BOSCH
394268A1,394268A2 MACK
394268A2 PARKER/RACOR
394268A1
394268A2
25/566-238
25902064

-----------

Assembly flange drive
2-hole o 14.3 mm

Brand
Bosch-Rexroth

Delivery rate (cm3/r)
41

Direction of rotation
left

Direction of rotation changeable
no

Leakage oil connection
3/4-16UNF-2B

Material housing
cast steel

Max. pressure (bar)
250

Max. revolution (rpm)
2900

Operating pressure (bar)
205

Pressure connection
M 33x2

Specification drive
7/8 inch in spline shaft size 13 teeth

Suction connection
M 42x2

Type
LA10VNO

Weight (kg)
15
