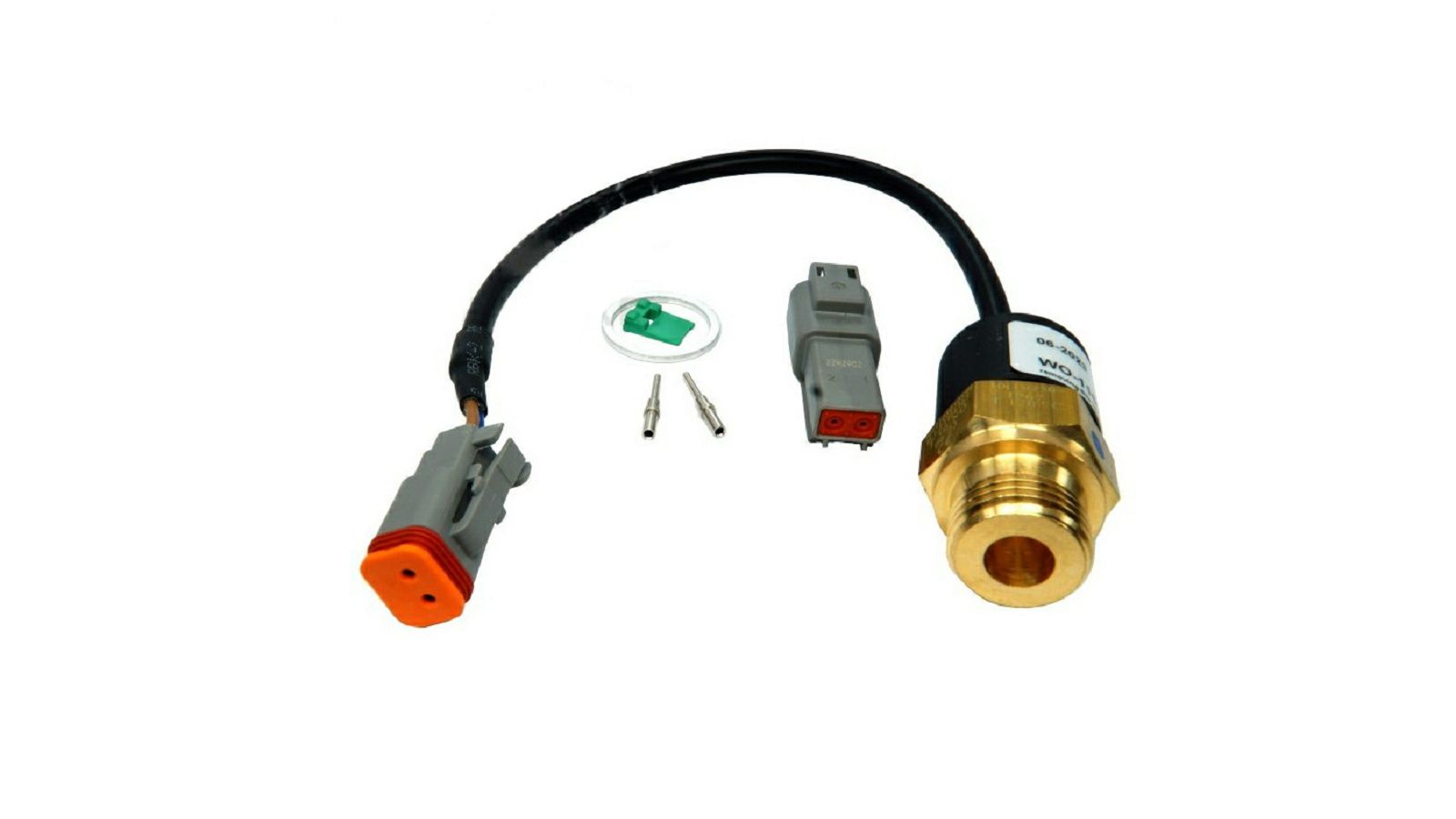

TEMPERATURNI PREKIDAČ 50°, 12,24V, 1/2” BSP, Deutsch DT 06-2S - ASA

ILLZTH4767K
61100416800

------------

The fan speed is controlled depending on the oil temperature in the system.
The starting temperature is 44°C.
The maximum speed is reached at the specified switching temperature.

Brand : asahydraulik
Degree of protection : IP67
Gearshift : make contact
Switching temperature (°) : 50
Thread connection : 1/2 inch
Voltage (V): 12, 24
Weight (kg) : 0,132

------------

Radna temperatura: 50°C +/-5°C

Diferencijal: 10°C (18°F)

Kućište: Materijal: mesing OT58

Klasa zaštite: IP 67

Bilo koji položaj montaže

okretni moment: 50 Nm

Kontakt: NE

Priključak: DT 06-2 utični konektor

Maksimalna struja: 12V DC: 10A

24 V istosmjerne struje: 10 A

120 V AC: 15 A

240 V AC: 10 A

Raspon temperature ulja: 20 do +100°C (-4 do +212°F)

Raspon temperature okoline: 20 do +85 °C (-4 do +185 °F)

Regulacija temperature ILLZTC12, ILLZTC24

Razvodna kutija za ventilator ILLZKL29
