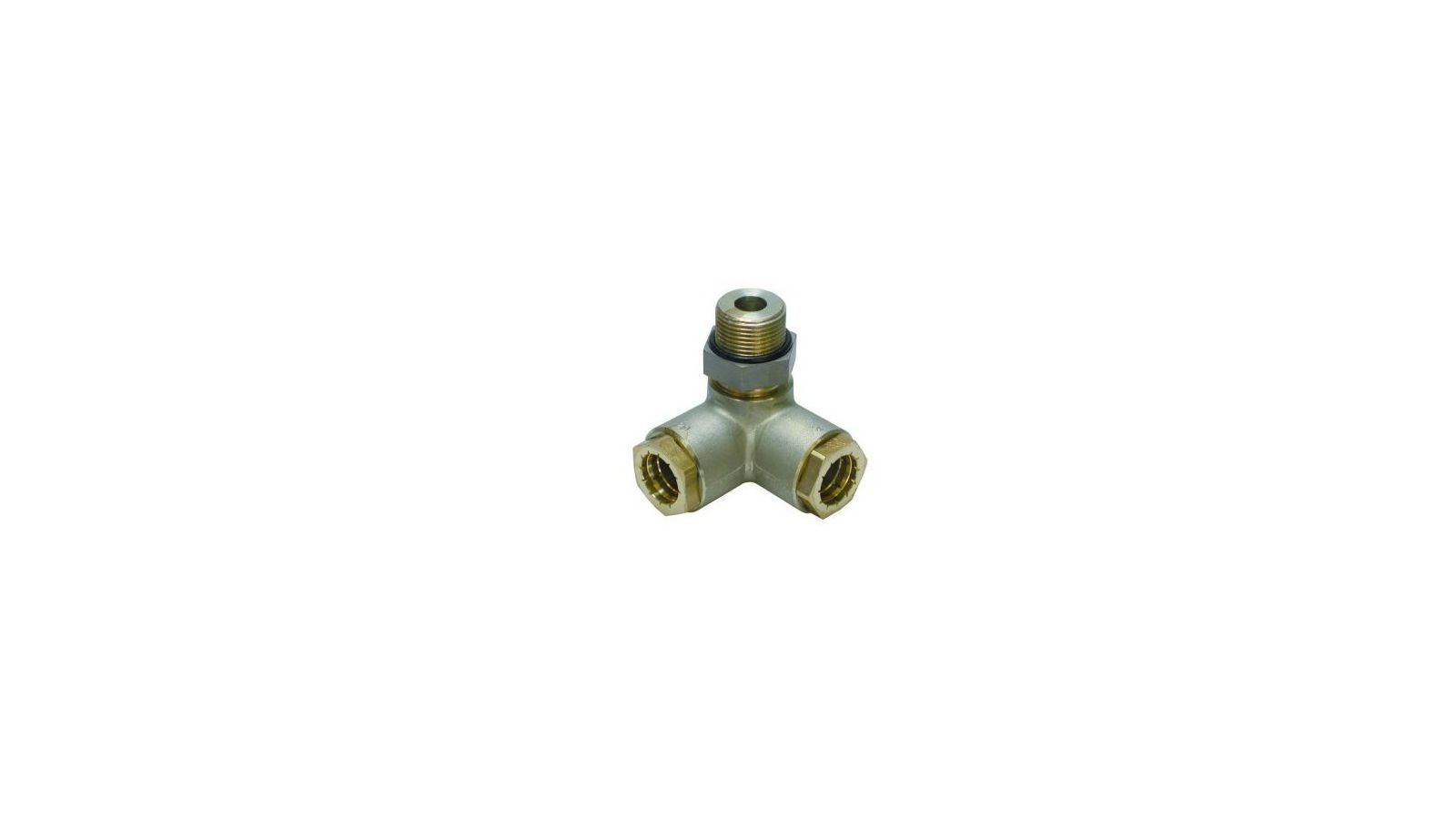

T-SPOJ Voss232, NG12, M22x1,5 VANJSKI

5232412270
81981836218
227EB466
49200012400

------------

Angle side outlet (°)
90

Brand
Voss

Info 1
including sealing nut and O-ring

Length L1 (mm)
39

Length L2 (mm)
46

Lenth screw-in L (mm)
24

Material
brass

Screw-in thread metric
M 22x1,5

Sealing thread
sealing nut and O-ring

Size coupling T
NG 12

System
Voss 232

Version bulkhead
no

Weight (kg)
0,178

Width across flats counter nut (mm)
27

Width across flats S1 (mm)
24

With side outlet
yes
