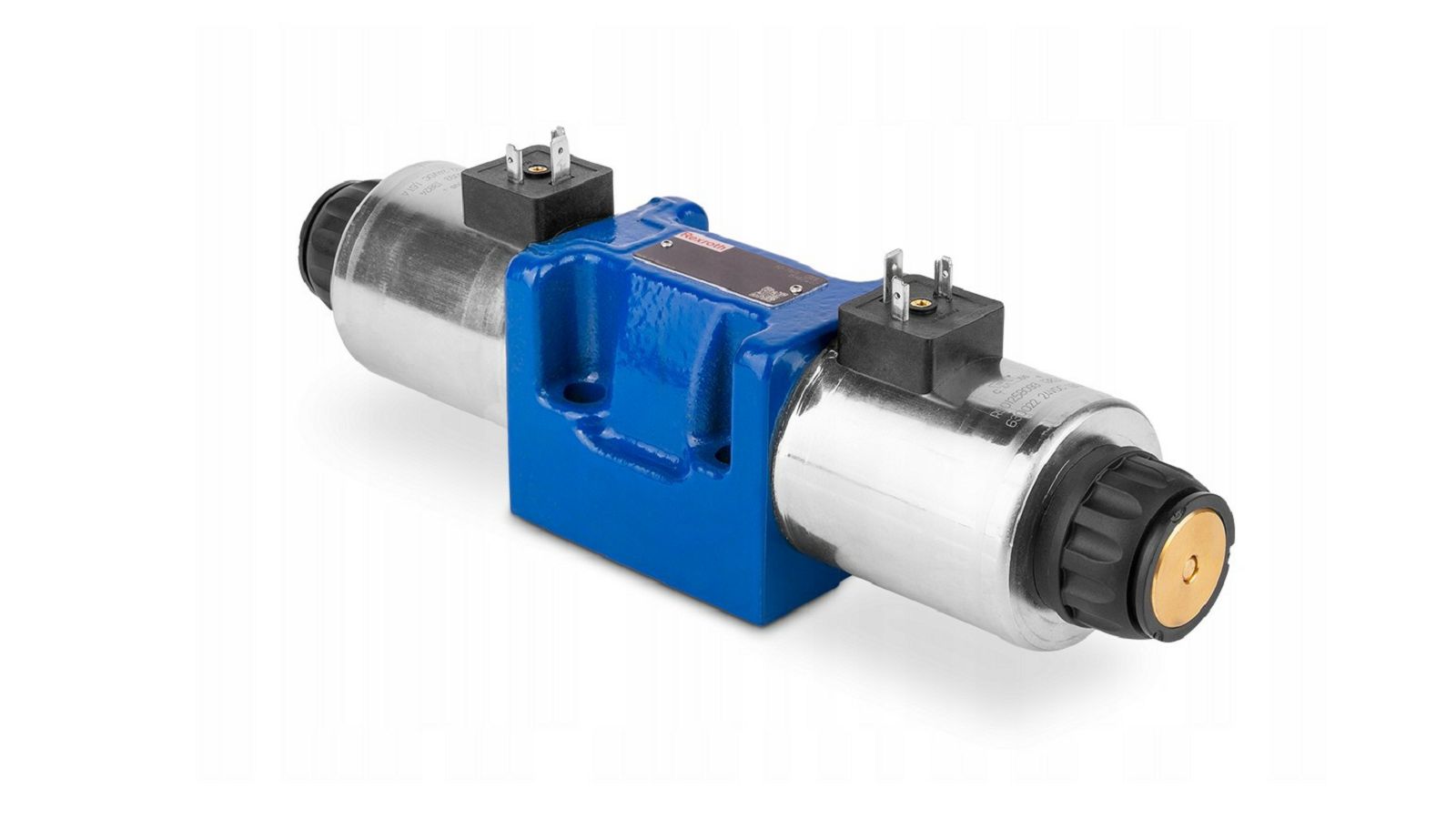

SOLENOIDNI VENTIL, VELIČINA 10, 24V, MAX 120L/min - BOSCH REXROTH

R901278762
4WE10H5X/EG24N9K4/M
4WE10H50/EG24N9K4/M

------------

Connection diagram ISO 4401-05-04-0-05
Product family WE10../E
Operating pressure, max. [bar] 350.0
Max. flow [l/min] 120.0
Spool symbol Symbol H
Type of connection Subplate mounting
Size 10
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 3
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803

Hydraulic fluid:
HFC
HL
HLP
HLPD
HVLP
HVLPD

Seals NBR
Weight [kg] 5.42
