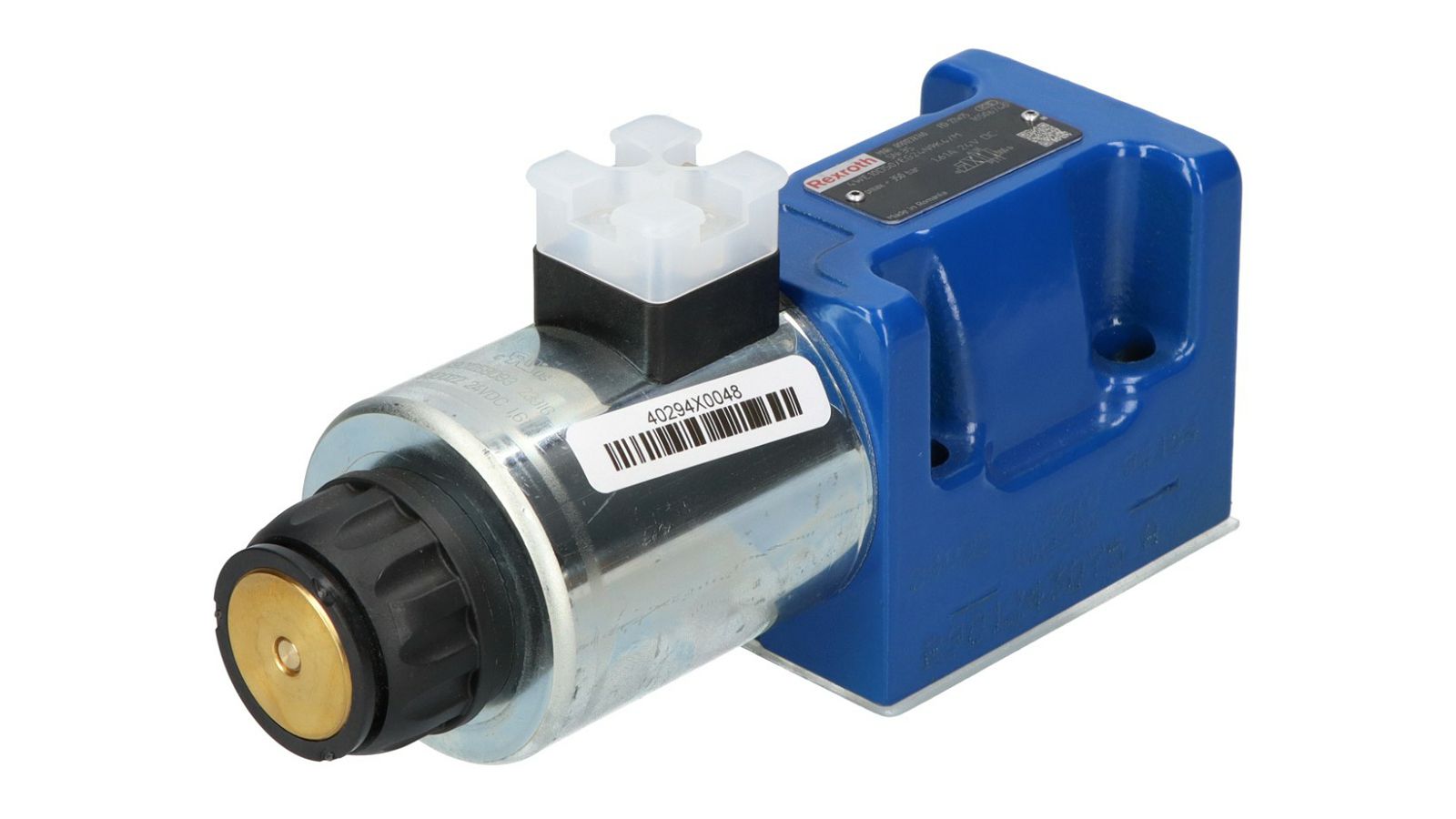

SOLENOIDNI VENTIL, MAX 160L/min, 24V - BOSCH REXROTH

R901278760
4WE10D5X/EG24N9K4/M

-----------

Main ports (4) 4 main ports
Series (WE) WE
Size (10) 10
Symbols (D) D
Component Series (5X) Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)
Spring return With spring return
Solenoid (E) High-power wet-pin solenoid with detachable coil
Electrical voltages (G24) 24V
Manual override (N9) With concealed manual override (standard)
Corrosion resistance None (valve housing primed)
Electrical connection (K4) Standard
Switching time increase Without switching time increase
Throttle insert Without throttle insert (standard)
Control spool play Standard (recommended)
Seal Material (M) NBR seals
Approval Standard
