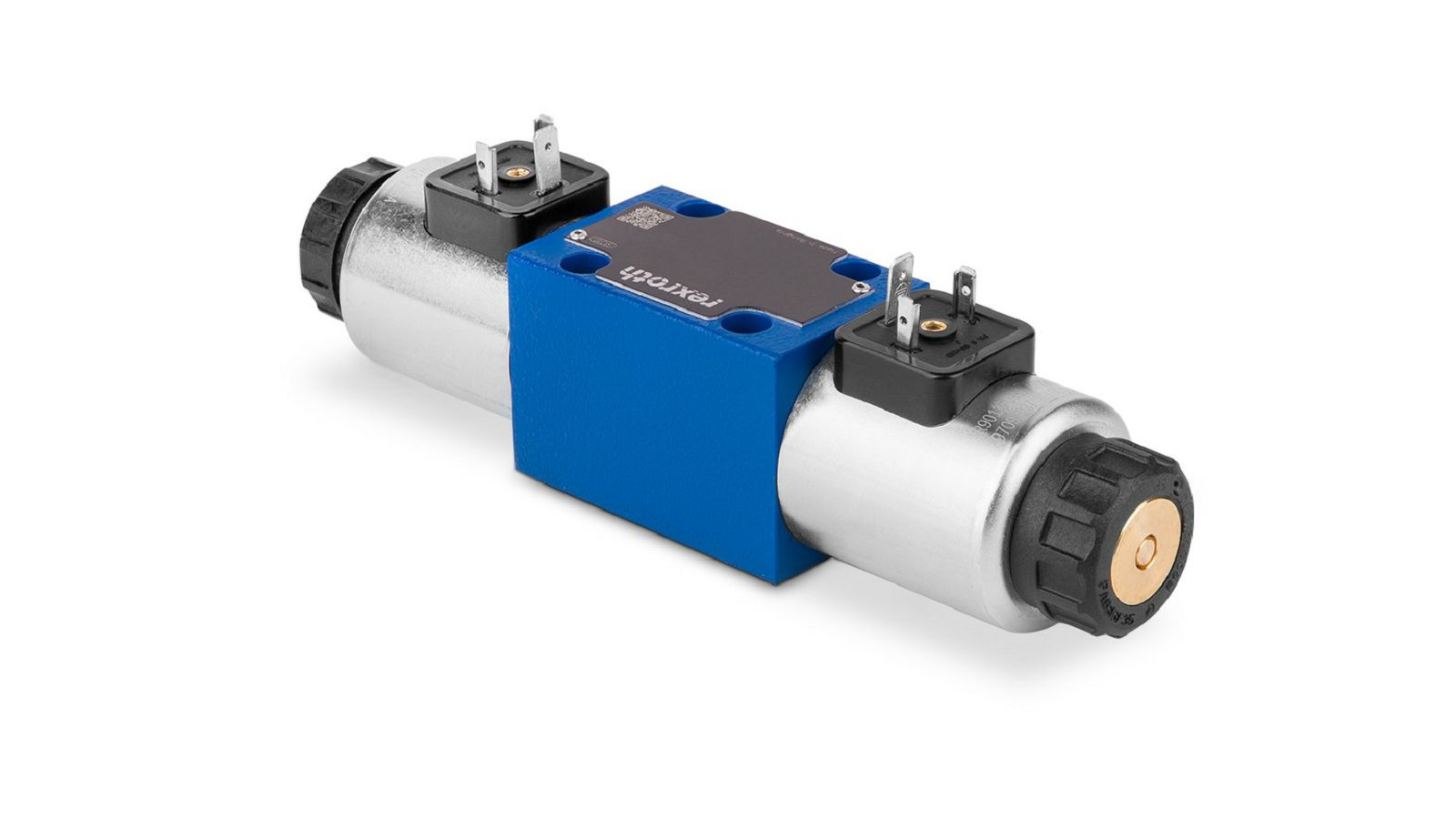

R900933648
4WE6F6X/EG24N9K4
-----------
Main ports (4) 4 main ports
Series (WE) WE
Size (6) 6
Symbols (F) F
Component Series (6X) 60 ... 69: unchanged installation and connection dimensions
Spring return With spring return
Solenoid (E) High-power wet-pin solenoid with detachable coil
Electrical voltages (G24) 24V
Manual override (N9) With concealed manual override (standard)
Corrosion resistance None (valve housing primed)
Electrical connection (K4) Standard
Spool position monitoring Without position switch
Switching time increase Without switching time increase
Throttle insert Without throttle insert (standard)
Clamping length 42 mm [1.65 inch] (standard)
Control spool play Standard (recommended)
Seal Material NBR seals
Approval Standard
Locating hone Without locating hole
Power consumption Standard
