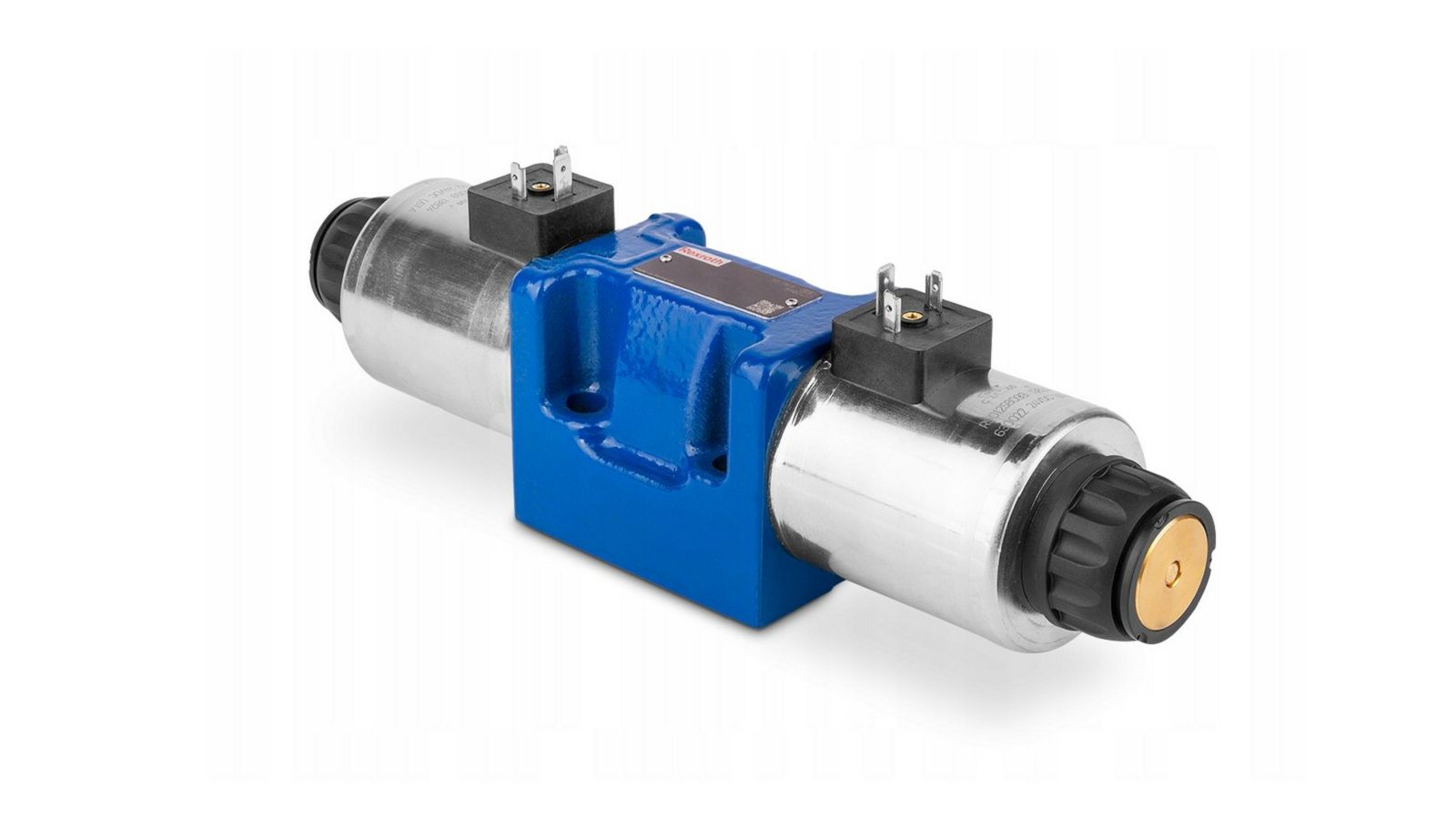

SOLENOIDNI VENTIL - BOSCH REXROTH

R901278744
4WE10J5X/EG24N9K4/M
4WE10J50/EG24N9K4/M

-----------

Main ports (4) 4 main ports
Series (WE) WE
Size (10) 10
Symbols (J) J
Component Series (5X) Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)
Spring return With spring return
Solenoid (E) High-power wet-pin solenoid with detachable coil
Electrical voltages (G24) 24V
Manual override (N9) With concealed manual override (standard)
Corrosion resistance None (valve housing primed)
Electrical connection (K4) Standard
Switching time increase Without switching time increase
Throttle insert Without throttle insert (standard)
Control spool play Standard (recommended)
Seal Material (M) NBR seals
Approval Standard
Seals NBR
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Number of switching positions 3
Type of actuation Solenoid-actuated
Type of connection Subplate mounting
Spool symbol Symbol J
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Electrical connector Connector 3-pole (2 + PE)
Number of ports 4
Size 10
Controls Solenoid-actuated
Connection diagram ISO 4401-05-04-0-05
