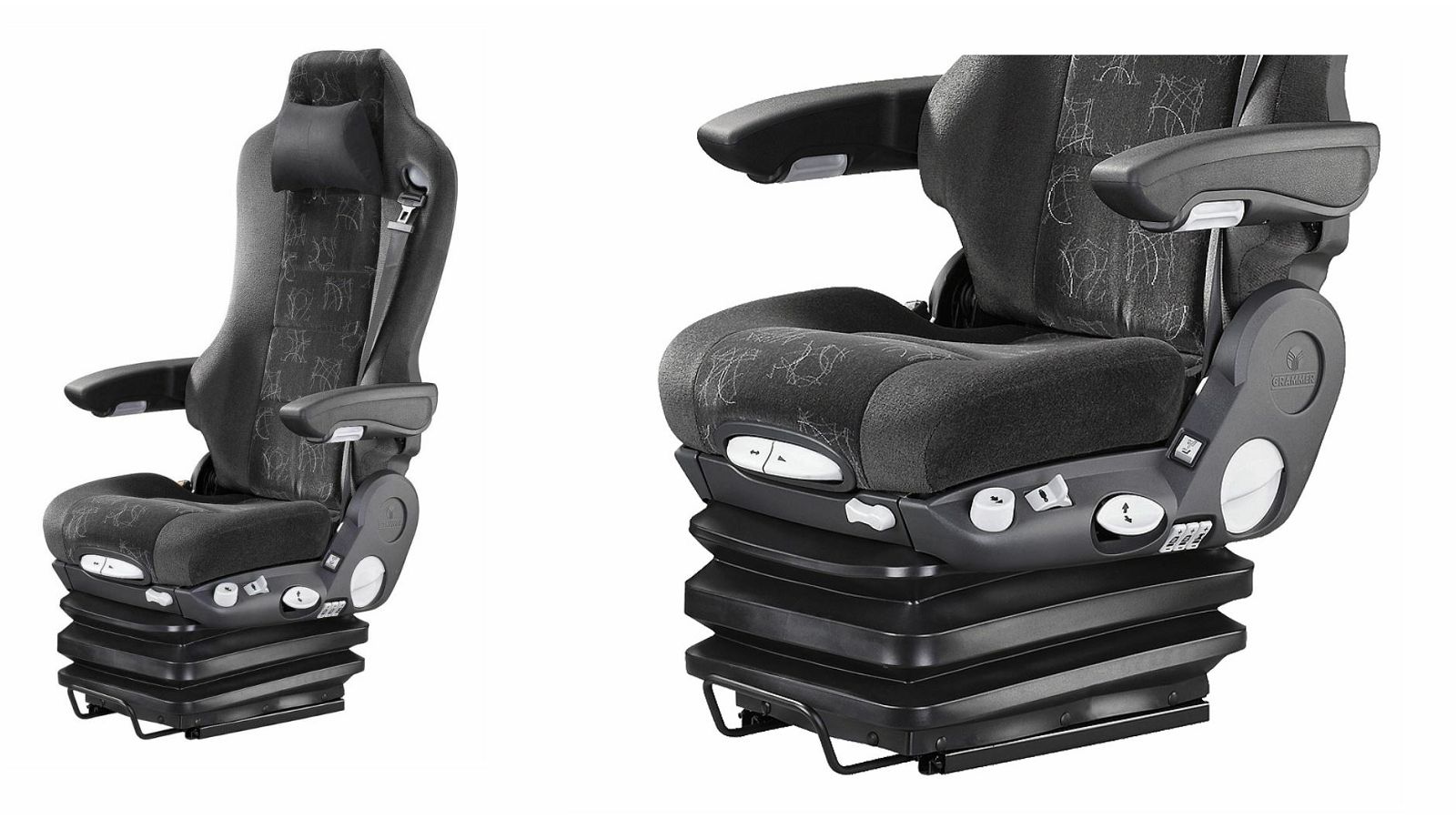

SJEDALO ZRAČNO KINGMAN HP COMFORT, MAN TGA, TGM, TGL, TGS, TGX - GRAMMER

1208136
150584
81623076531
81623076529
58100126400

MAN TGA, TGM, TGL, TGS, TGX

----------

Weight (kg)
41

Brand
Grammer

Voltage (V)
24

Track width (mm)
230

For mount EPS
no

Spring deflection (mm)
70

Material seat cover
textile

Color cover
anthracite

Swivel adapter
without

Suspension
pneumatic

Weight setting to (kg)
130

Height setting (mm)
100

Inclination adjustment (mm)
60

Horizontal adjustment (mm)
180

Lumbar support
pneumatic

Air supply
of vehicle

Position operating element
left

Position operating element
front

Backrest adjustment (°)
10

Width seat (mm)
545

Control lever support console
without

Usage
truck driver

Additional settings
weight setting automatic

Additional settings
horizontal adjustment

Additional settings
height setting

Additional settings
backrest adjustment

Additional settings
seat cushion inclination adjustment

Additional settings
seat cushion depth adjustment

Additional settings
shock absorber adjustable

Comfort features
fore/aft isolator

Comfort features
neck cushion

Comfort features
quick lowering

Comfort features
seat backrest contour adjustment

Comfort features
seat heating

Safety equipment
integrated 3-point belt system

Safety equipment
head restraint

Safety equipment
seat belt pre-tensioner

Width seat cushion (mm)
500

Type designation
Kingman HP Comfort
