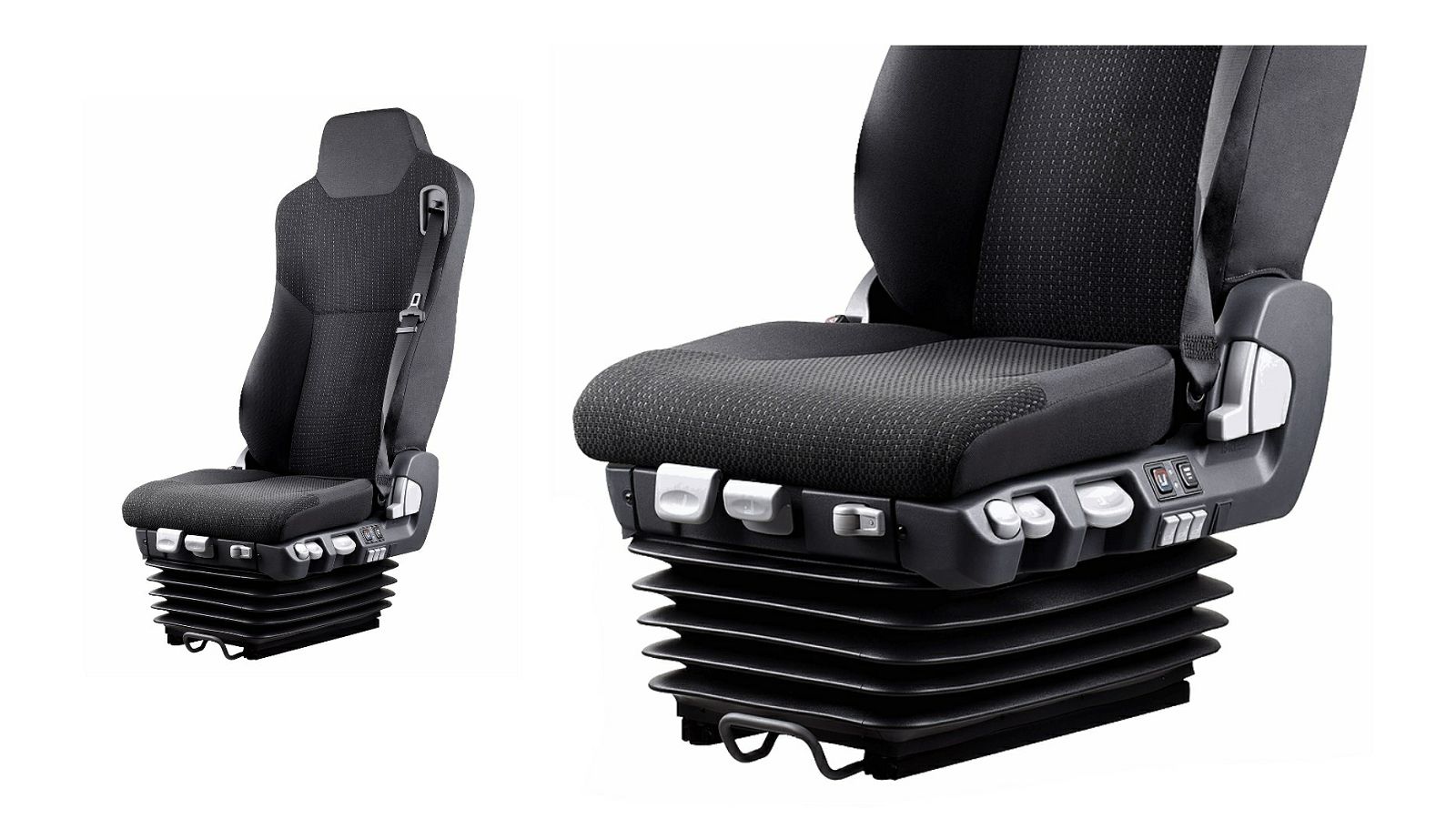

SJEDALO ISRI 6860/875 NTS, DAF XF/CF - OE

89713-31/04
89713-31/00
897133104
897133100
58100029600

-----------

Additional settings
weight setting automatic
horizontal adjustment
height setting
seat cushion inclination adjustment
seat cushion depth adjustment
IPS
shock absorber adjustable

Air supply
of vehicle

Backrest adjustment (°)
52

Brand
Isri

Color cover
anthracite/gray

Comfort features
horizontal suspension
memory function
quick lowering
shoulder adjustment
adjustable vibration damper
integrated head restraint

Control lever support console
without

For mount EPS
no

Height setting (mm)
100

Horizontal adjustment (mm)
200

Inclination adjustment (°)
16

Lumbar support
pneumatic

Material seat cover
textile

Position operating element
left

Safety equipment
integrated 3-point belt system
upper belt guide adjustable
belt height adjustment

Spring deflection (mm)
80

Suspension
pneumatic

Swivel adapter
without

Track width (mm)
305

Type designation
6860/875 NTS

Usage
truck driver

Weight (kg)
50

Weight setting to (kg)
150

Width seat (mm)
542

------------
ZA:

DAF 65 CF (1998-2001)
DAF 75 CF (1998-2001)
DAF 85 CF (1998-2001)
DAF 95 XF (1997-2002)
DAF CF 65 (2001-2006)
DAF CF 65 (2006-2013)
DAF CF 75 (2001-2006)
DAF CF 75 (2006-2013)
DAF CF 85 (2001-2006)
DAF CF 85 (2006-2013)
DAF CF EURO 6 (2013-2017)
DAF XF 105 (2005-2012)
DAF XF 95 (2002-2005)
DAF XF EURO 6 (2012-2017)
