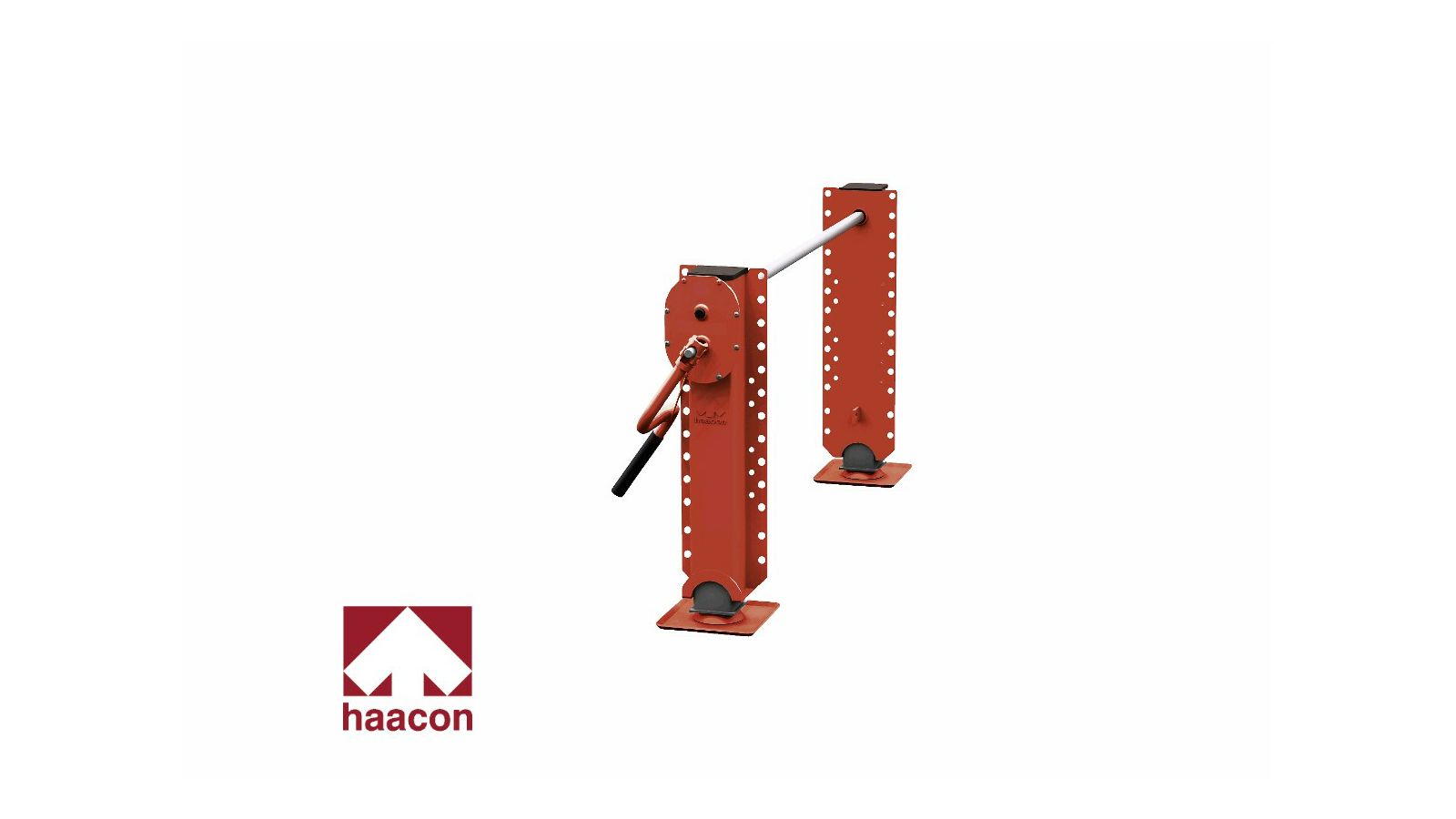

SET NOGARA S 2000 Plus, FORM K - HAACON

211403
1098945
207778
53100007400

DESNI NOSAČ - 211434
LIJEVI NOSAČ - 211435
KURBLA - 206136
KONEKTOR ŠIPKA - 204225

opseg isporuke: dva nosača, dvije noge, ručica, držač ručice i priključna osovina

---------------

Brand
Haacon

Construction form foot
Haacon Form K

Hoisting capacity per set (t)
24

Length connecting shaft (mm)
1470

Material housing
steel

Max. height (mm)
1166

Min. height (mm)
756

Mounting
rigid

Mounting height (mm)
670

Production series
S 2000 Plus

Ref. no.
Haacon 211403

Setting range (mm)
ohne

Stroke (mm)
410

Support load per set (t)
50

Version screw plate
durchgehend

Weight (kg)
76,5
