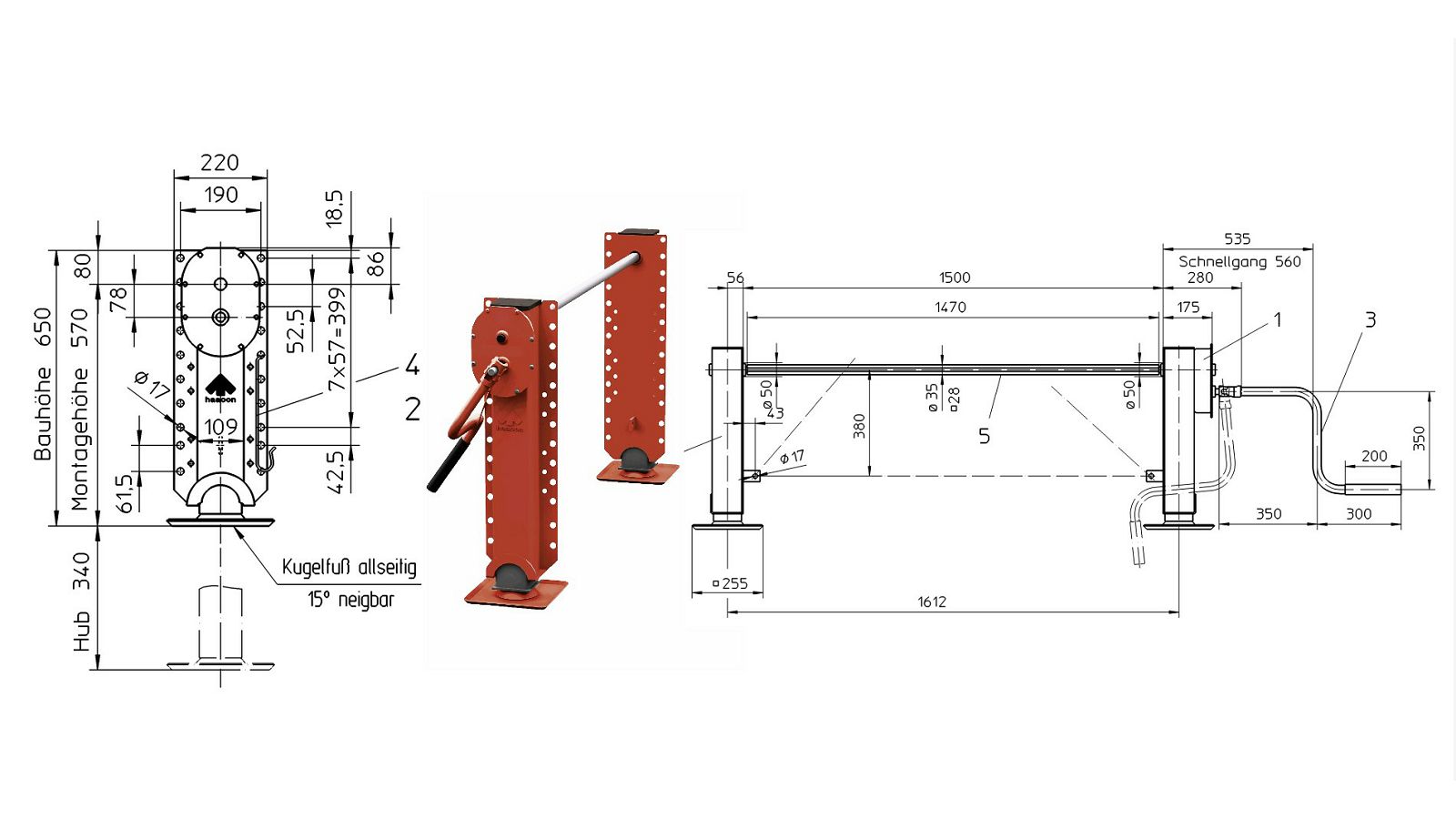

SET NOGARA S 2000 Plus, FORM K - HAACON

211405
SXK560P206
53100001700

DESNI NOGAR - 211424
LIJEVI NOGAR - 209544

------------

Brand
Haacon

Construction form foot
Haacon Form K

Hoisting capacity per set (t)
24

Length connecting shaft (mm)
1470

Material housing
steel

Max. height (mm)
996

Min. height (mm)
656

Mounting
rigid

Mounting height (mm)
570

Production series
S 2000 Plus

Ref. no.
Haacon 211405

Setting range (mm)
ohne

Stroke (mm)
340

Support load per set (t)
50

Version screw plate
durchgehend

Weight (kg)
96,5
