61100082400
------------
scope of delivery:

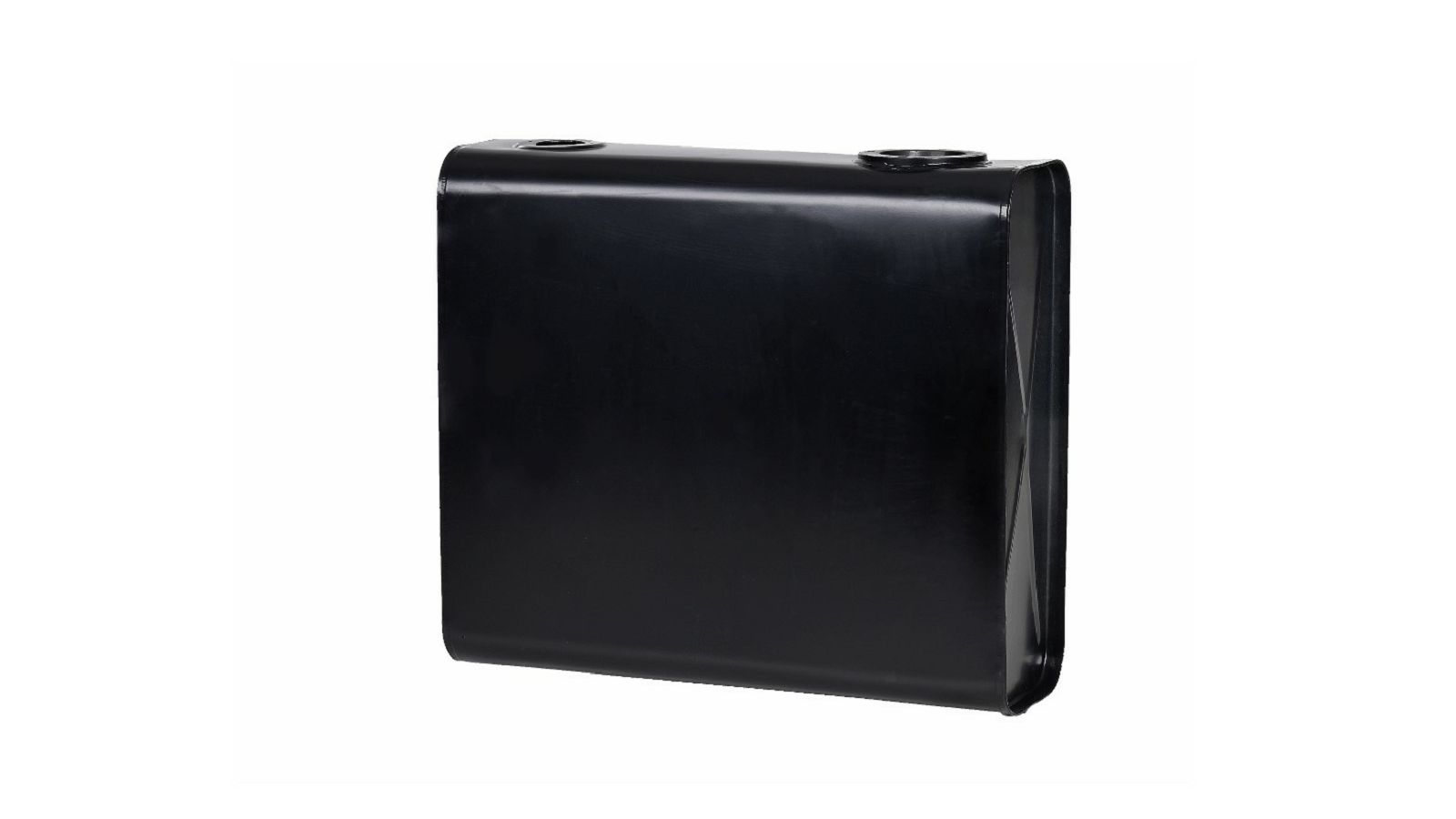

oil container in roll seam welded construction without accessories
Attachment location
behind driver's cab
Fill level indicator
inspection glass
Flange plate tilt valve
without
Form
angular
Height (mm)
565
Width/depth (mm)
197
Length (mm)
460
Installation option return filter
yes
Material
steel
Position suction connection
bottom rear
Suction connection
1 inch internal thread
Thickness material (mm)
1,5
Useable volume (l)
45
Volume container (l)
50
Weight (kg)
10
