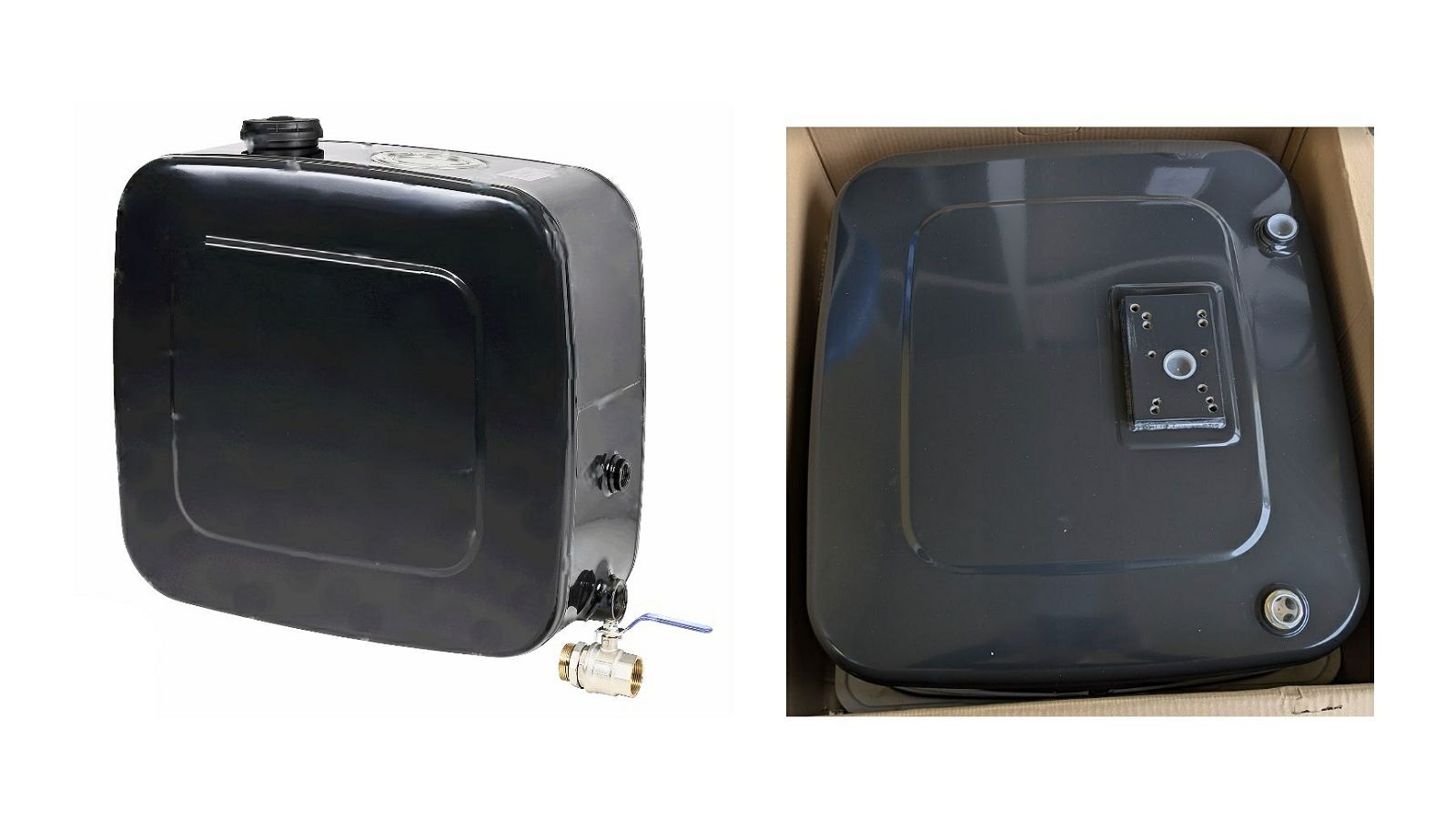

REZERVOAR HIDRAULIKE ULJA, ČELIK, 135L, H-636mm, L-350mm, W-706mm - AM

61100464400

--------------

scope of delivery:
oil container with filling filter, sight glass and shut-off cock

--------------

Height (mm)
636

Length (mm)
350

Width/depth (mm)
706

Attachment location
lateral frame mounting

Color
graphite black RAL 9011

Fill level indicator
inspection glass

Flange plate tilt valve
left

Form
molded

Installation option return filter
yes

Material
steel

Position suction connection
bottom rear

Return flow
1 Zoll Innengewinde

Suction connection
1 1/2 inch internal thread

Surface
powder coated

Thickness material (mm)
2,5

Useable volume (l)
105

Volume container (l)
135

Weight (kg)
36
