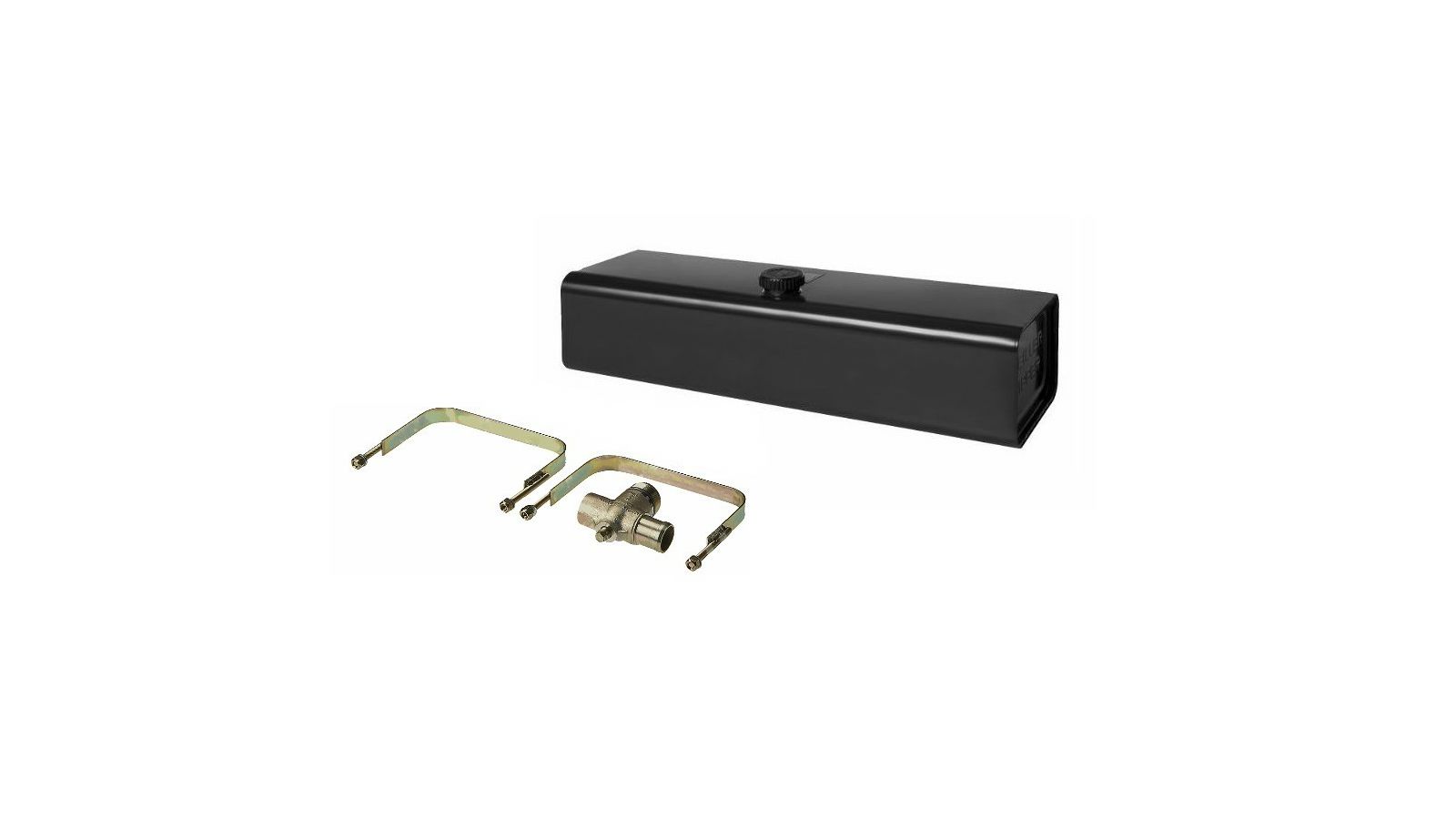

REZERVOAR HIDRAULIKE S NOSAČIMA I VENTILOM ISKLJUČENJA, 25L, H-150mm, W-240mm, L-790mm - MEILLER

70183836
61100321400

-----------

opseg isporuke:oil container in roll seam welded construction, clamping straps, filling filter and shut-off valve

Attachment location
frame installation

Brand
Meiller

Color
black

Fill level indicator
measuring stick

Flange plate tilt valve
without

Form
special form

Height (mm)
150

Width/depth (mm)
240

Length (mm)
790

Installation option return filter
yes

Material
steel

Position suction connection
bottom

Return flow
3/4 inch internal thread

Suction connection
M 50x2 internal thread

Surface
painted

Thickness material (mm)
2

Useable volume (l)
15

Volume container (l)
25

Weight (kg)
7,2
