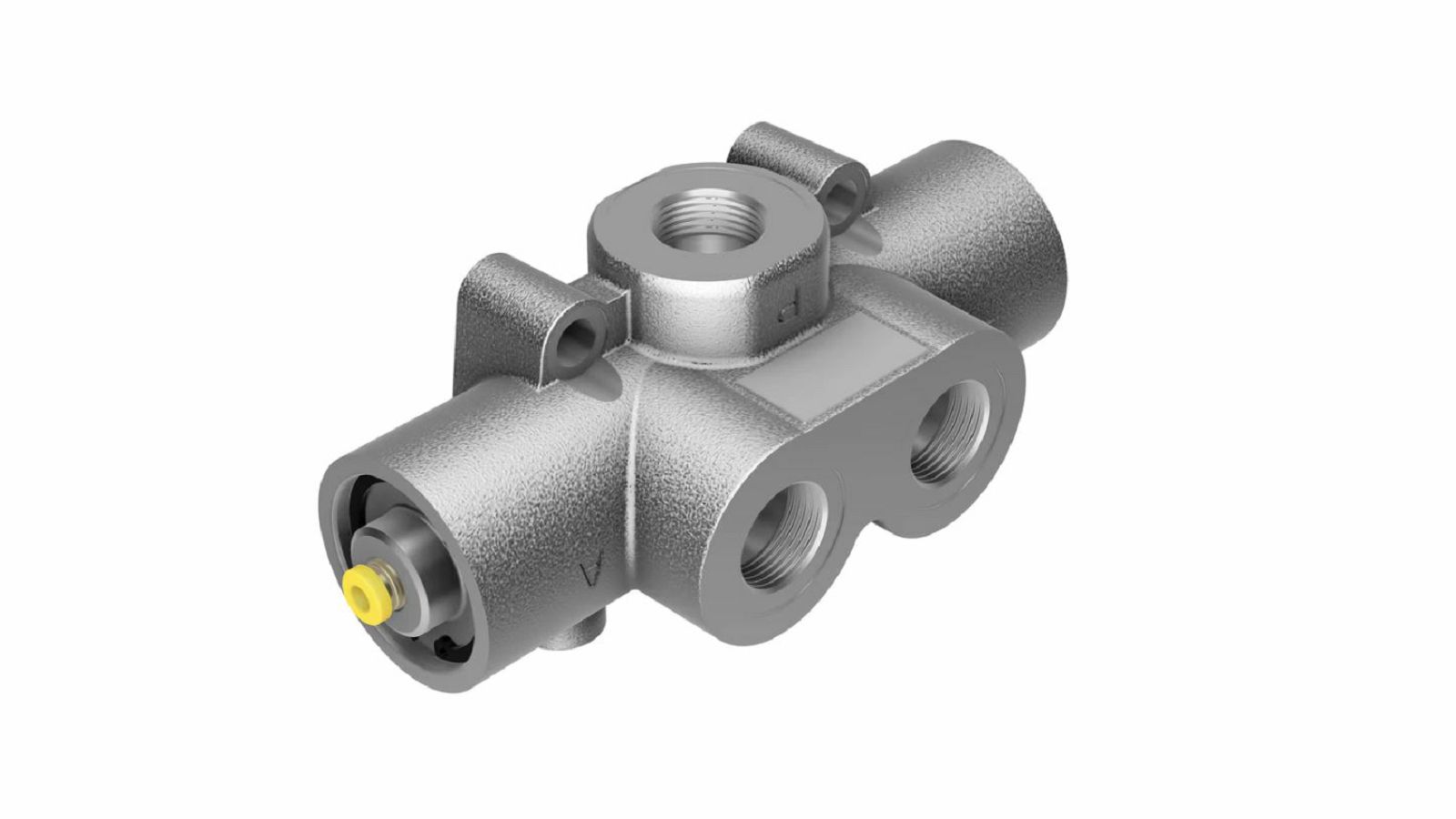

RAZDJELNIK PREKLOPNI VENTIL TIP VDMR, 200L/min, 350BAR

3VDMR100N00
VVDMR0000AH2D0
61100356000

--------------

Width (mm)
101

Weight (kg)
3,083

Height (mm)
75

Length (mm)
191

Brand
Interpump (IPH)

Type
VDMR

Max. flow rate (l/min)
200

Max. operating pressure (bar)
350

Material
cast steel

Connection pressure input
1 inch internal thread

Connection pneumatic
push in 6x1

Max. pneumatic pressure (bar)
12

Connection pressure output 1
1 inch internal thread

Connection pressure output 2
1 inch internal thread
