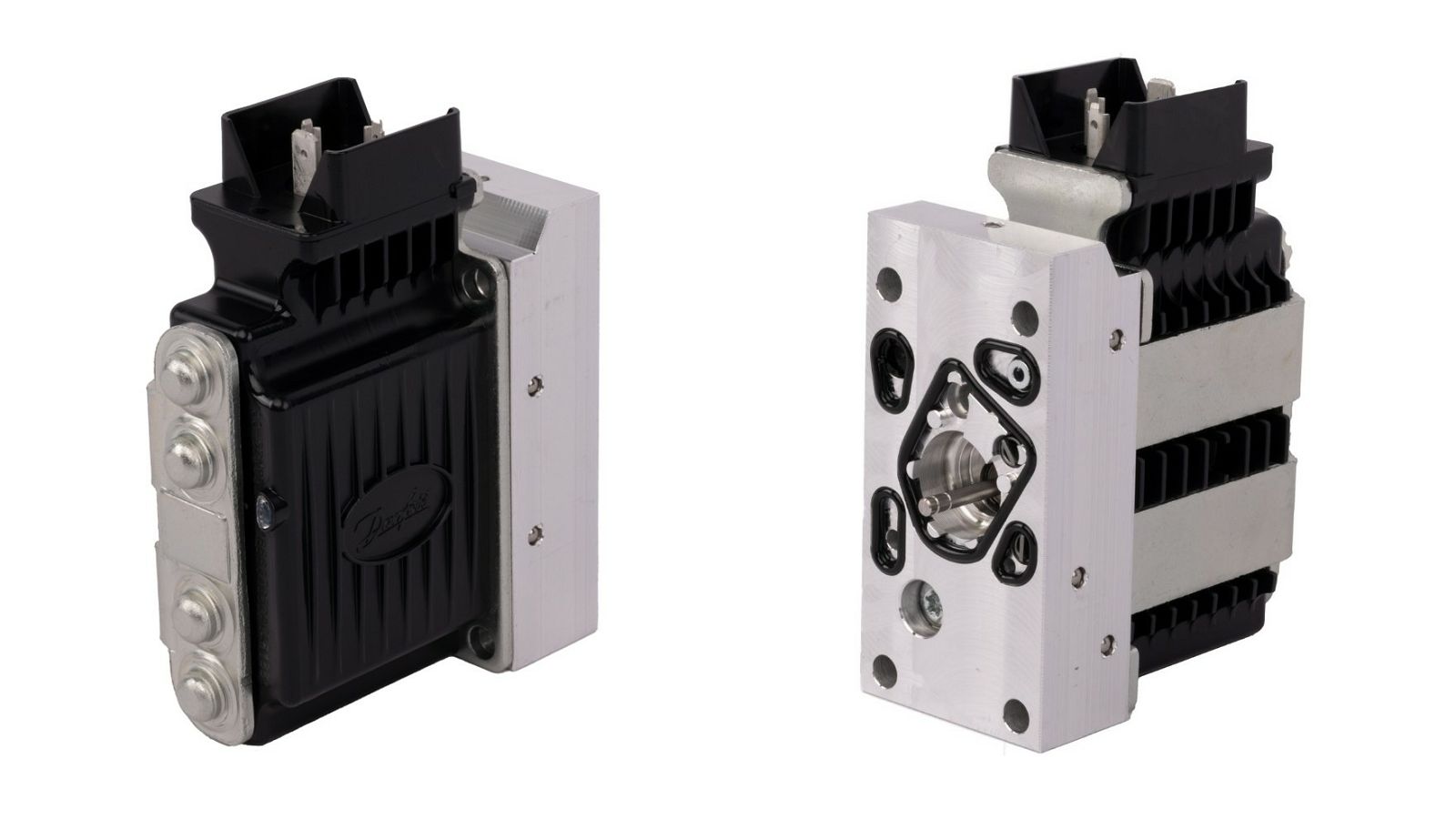

PVEH ELEKTRONSKI AKTUATOR - DANFOSS

11166817


----------

Length: 200 mm
Width: 140 mm
Height: 70 mm
Weight: 0.75 kg

----------

Alternative Material Number: n/a

PVE type: PVEH

Input signal ratiometric

CAN protocol none

Float position: no

Fault monitoring active

Direction indication: no

EX-certified no

Hydraulic ramp: no

Anodized: n/a

Voltage: 11 - 32 V

Connetor: Hirschmann

IP rating: IP65

Cable included: no

Cable type: none

Cable length: none

Extra function: no

Power save: no

------------

Connector kit: included (material number: 984L3156)

Screw set: included (material number: 155L4199)

Installation guide: included ( material number: 520L0619)

-----------

Replacement for Series 0 : 157B4012

Replacement for Series 0 : 157B4024

Replacement for Series 0 : 157B4712

Replacement for Series 0 : 157B4724

Replacement for Series 1 : 157B4013

Replacement for Series 1 : 157B4025

Replacement for Series 1 : 157B4713

Replacement for Series 1 : 157B4725

Replacement for Series 2/3 : 157B4016

Replacement for Series 2/3 : 157B4028

Replacement for Series 2/3 : 157B4716

Replacement for Series 2/3 : 157B4728

Replacement for Series 4 : 157B4032
