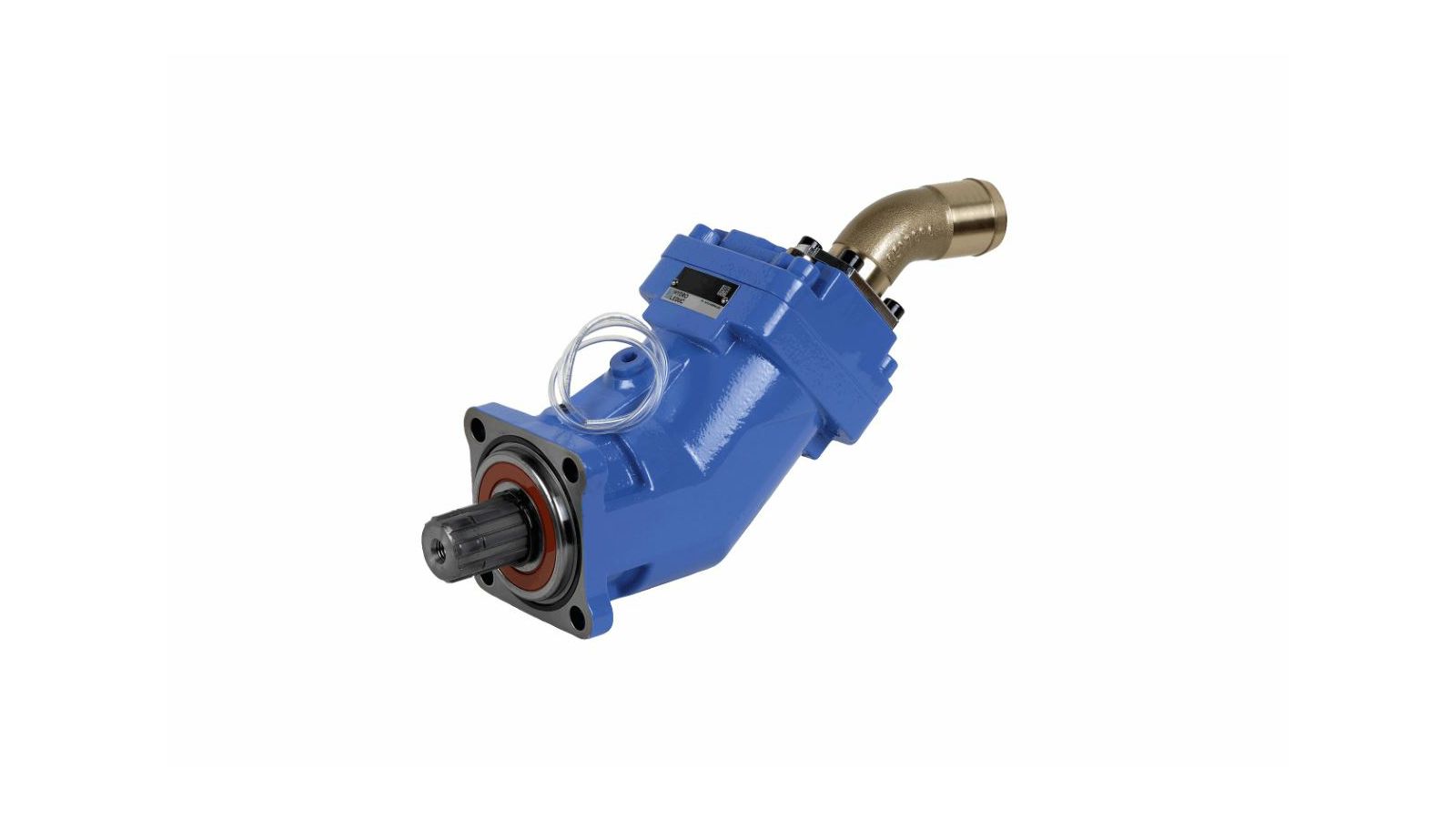

PUMPA XPI 108, 108cm3/r (SA USISNIM PRIKLJUČKOM) - HYDRO LEDUC

0523750
XPI108
EP1402 PALFINGER
desno SCP-108R-N-DL4-L35-S0S-000
lijevo SCP-108L-N-DL4-L35-S0S-000
desno SCP-108R-N- DL4-H35-S0S-000
lijevo SCP-108L-N-DL4-H35-S0S-000
Parker: desno F1-101-R 3781100
lijevo F1-101-L 3781101
Rexroth: R902162398
desno A17FO107/10NRWK0E81-0
lijevo A17FO107/10NLWK0E81 -0
61100351800

-----------------------------

Max. revolution (rpm): 1900
Direction of rotation changeable: yes
Delivery rate (cm3/r): 108
Direction of rotation: Left/right
Standard drive DIN 5462
Pressure connection: G 1 inch internal thread
Type XPI 108
Weight (kg): 16,108
Operating pressure (bar): 380
Brand Leduc
Suction connection: plugged in
Max. pressure (bar): 420
Material housing: cast steel
Construction: inclined axis
Specification drive: shaft 8x32x36
Assembly flange drive: 4-hole 80x80 mm

------------------------------

201FL108S7E, 201FL108S7E, 201FX108DSE, 201FX108SSE, SAP108 23108 23108R, SCP108
ABER BI110P7, R902162398 AXIAL-PISTON PUMP A17FO107/10NLWK0E81-0,
Hydro Leduc XPi108, 0523750, Parker F1-101-R 3781100, F1-101-L 3781101,
OMFB HDS108 60100111083, 60100111089, HDT108 60200111083, 60200111089, RGC RXP108, PBF20T.107
4691005
