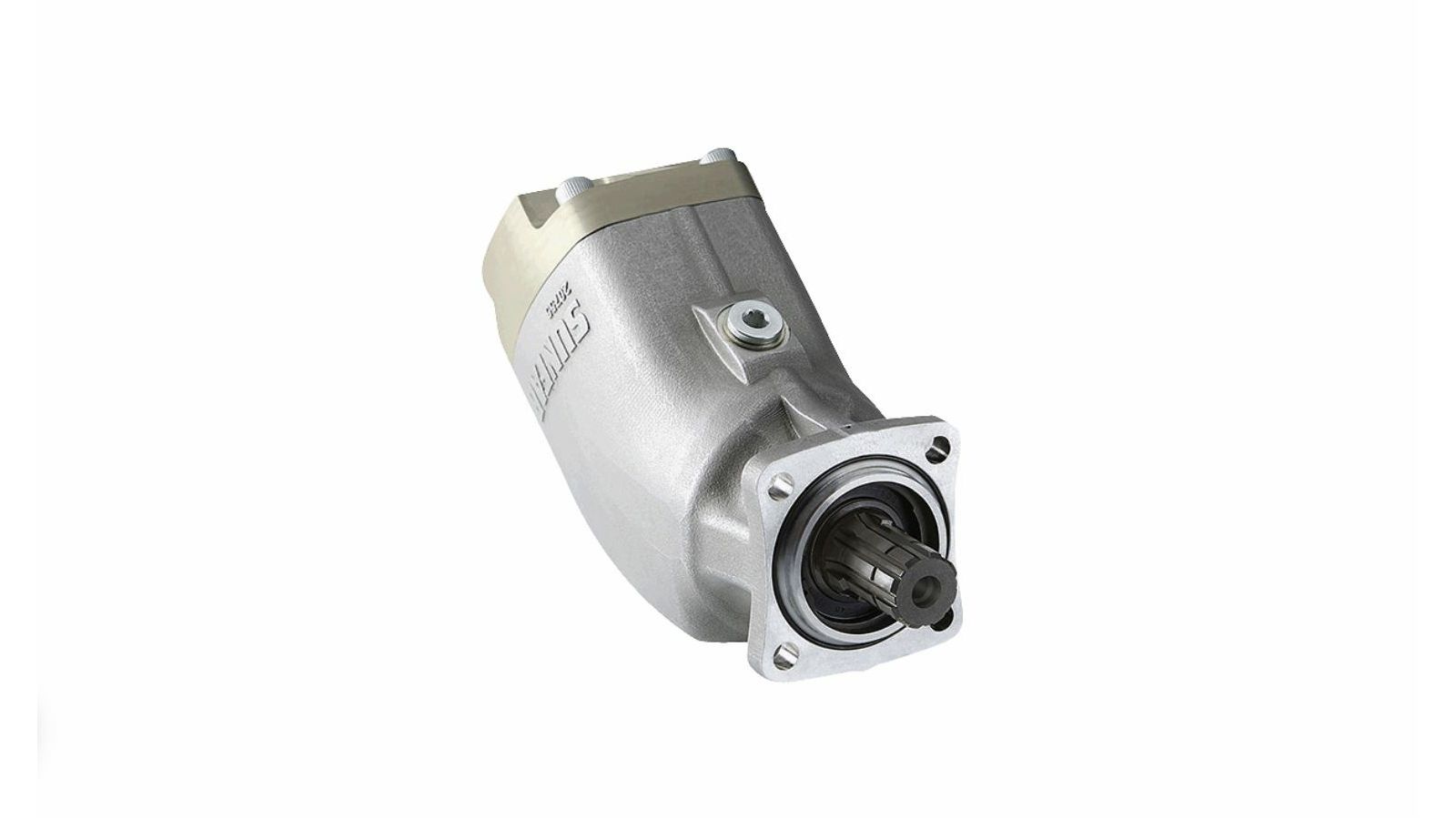

PUMPA SAP 012, 12,6cm3/r, LIJEVA - SUNFAB

SAP-012L-N-DL4-L35-S0S-000
61100361900
SAP-012R-N-DL4-L35-S0S-000
SAP012

----------------------

Weight (kg)
9,5

Brand
Sunfab

Operating pressure (bar)
400

Max. revolution (rpm)
2300

Direction of rotation changeable
yes

Max. pressure (bar)
400

Delivery rate (cm3/r)
12,6

Direction of rotation
left

Standard drive DIN
5462

Material housing
aluminum

Construction form
inclined axis

Type
SAP 012

Specification drive
shaft 8x32x35

Assembly flange drive
4-hole 80x80 mm

Suction connection
plugged in

Pressure connection
G 3/4 inch internal thread
