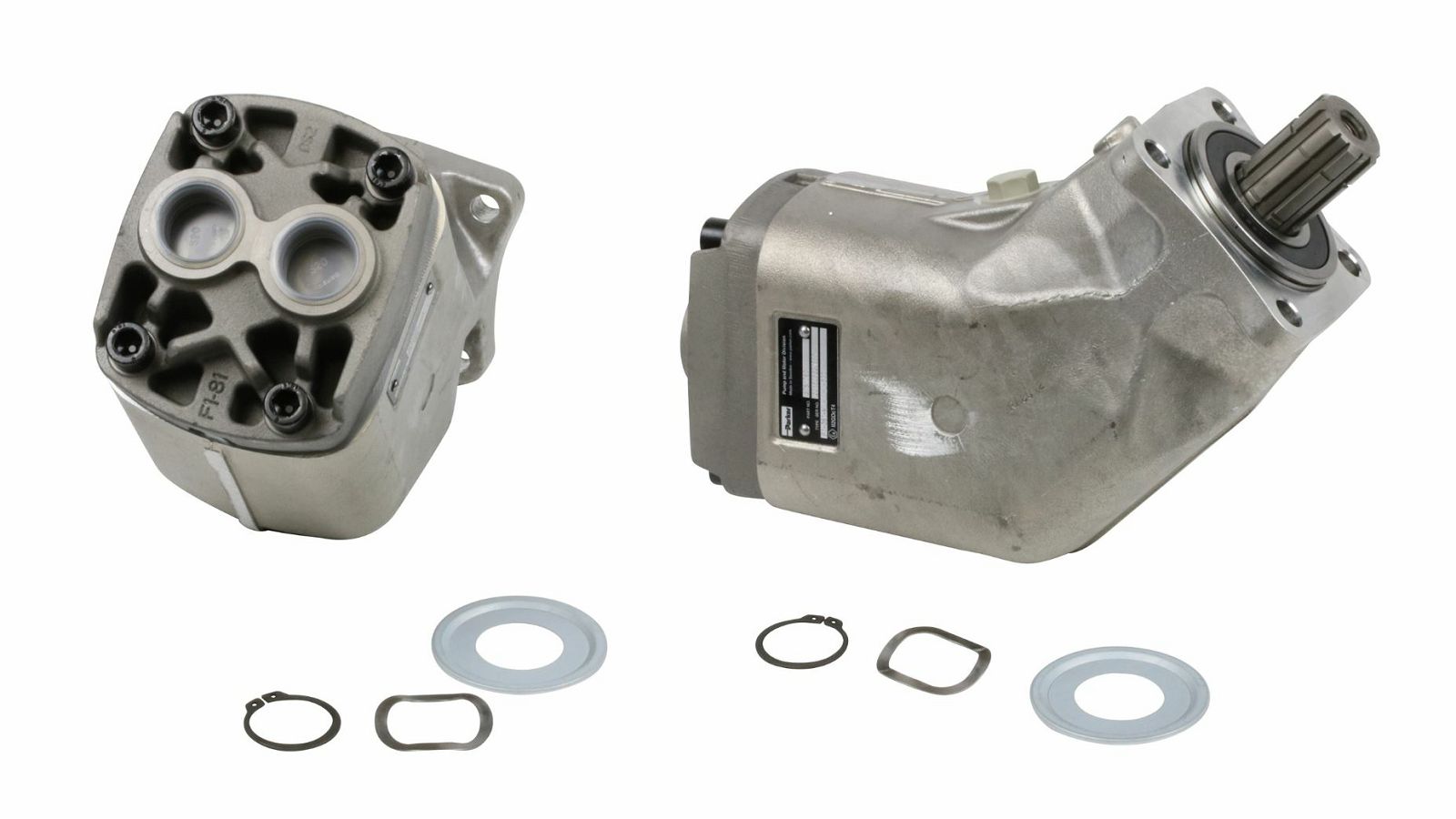

PUMPA PARKER F1-61, 59,5cm3/r - PARKER

3781760
F1-061-M
F1-61-M
F1061M
201-001-01064
ALTERNATIVE - 20100101064 - OMFB
SF36638 - SUNFAB - SAM-064W-N-DL4-L35-S3G-100
61100173000

--------

FI shaft/hub (mm)
34,9

Weight (kg)
8,5

Power (kW)
34

Brand
Parker

Operating pressure (bar)
250

Max. torque (Nm)
331

Max. revolution (rpm)
2200

Max. pressure (bar)
350

Displacement (cm3/r)
59,5

Material housing
aluminum

Type
F1-61

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm

Oil connection A
3/4 inch internal thread

Oil connection B
3/4 inch internal thread

Leakage oil connection
1/2 inch internal thread
