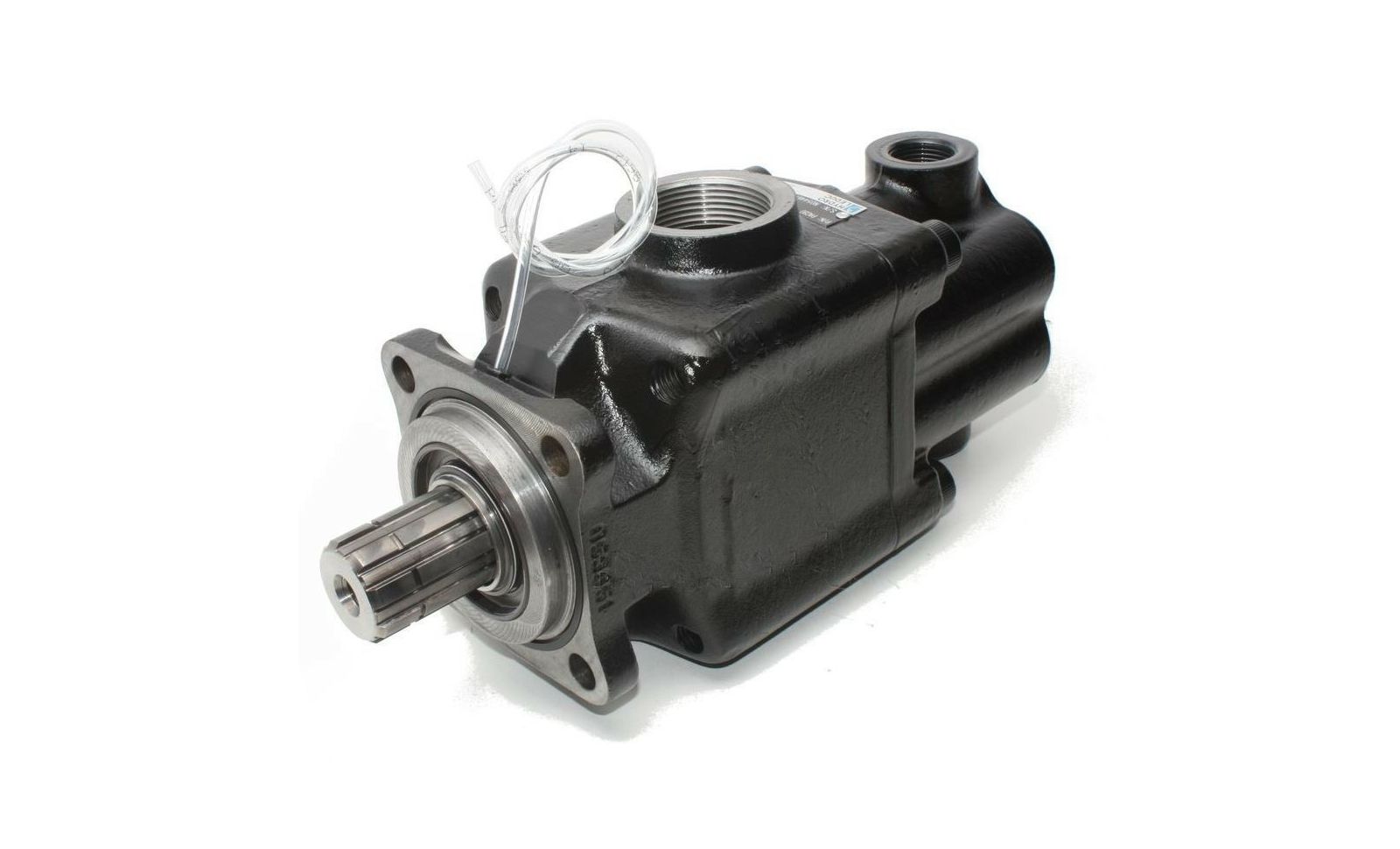

0511485
PAC2-32
61100011700
Max. revolution (rpm)
2000
Direction of rotation changeable
yes
Direction of rotation
left
Direction of rotation
right
Standard drive DIN
5462
Delivery rate 1 (cm3/r)
32
Delivery rate 2 (cm3/r)
32
Pressure connection 1
3/4 inch internal thread
Pressure connection 2
3/4 inch internal thread
Type
PAC 2-32
Weight (kg)
17,12
Operating pressure (bar)
350
Suction connection
1 1/2 inch internal thread
Max. pressure (bar)
500
Material housing
cast steel
Construction
straight
Specification drive
shaft 8x32x36
Assembly flange drive
4-hole 80x80 mm
