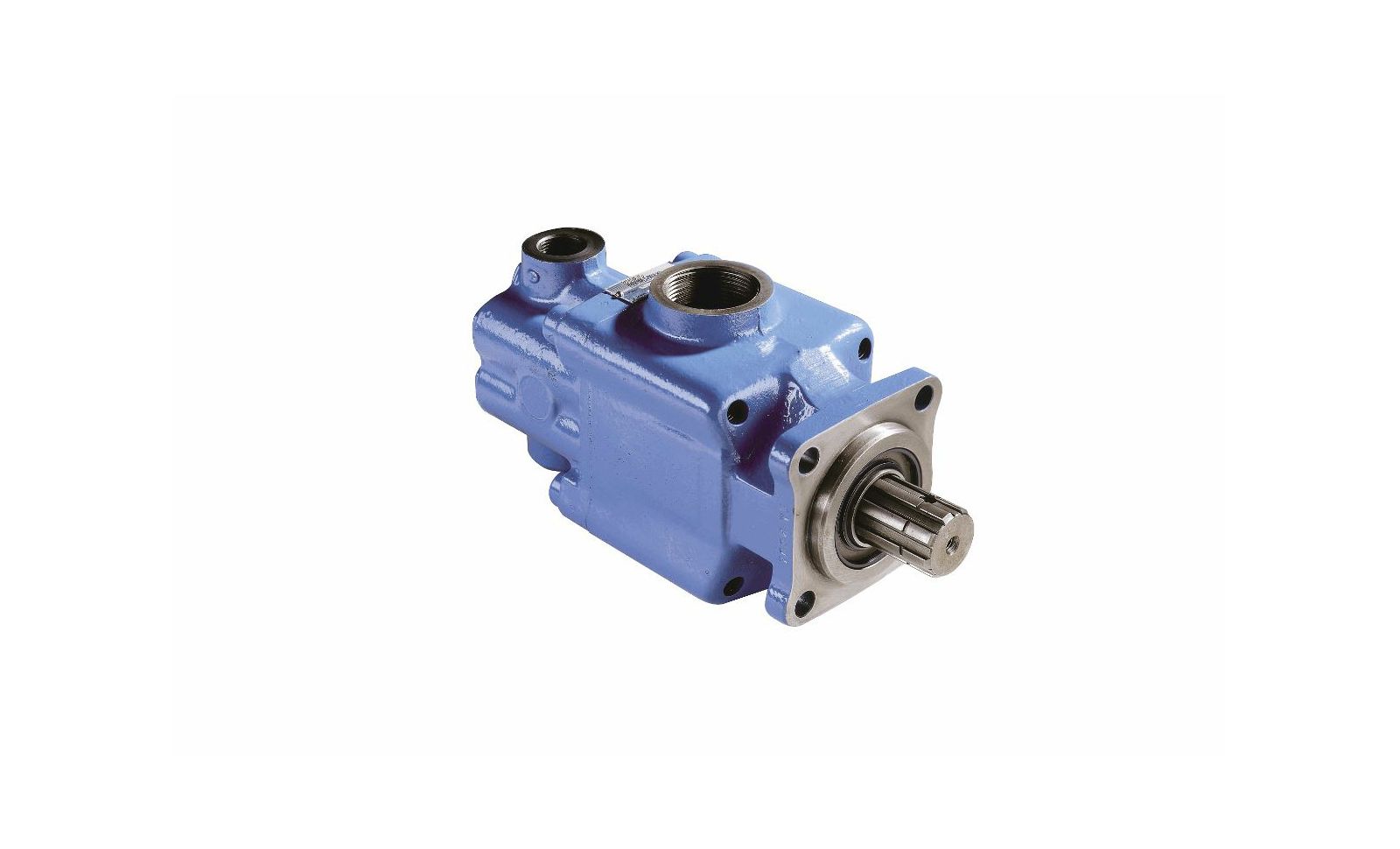

PUMPA PAC 2-40, 39cm3/r, 39cm3/r - HYDRO LEDUC

0511710
61100011900
PAC2-40

Max. revolution (rpm)
1700

Direction of rotation changeable
yes

Direction of rotation
left

Direction of rotation
right

Standard drive DIN
5462

Delivery rate 1 (cm3/r)
39

Delivery rate 2 (cm3/r)
39

Pressure connection 1
3/4 inch internal thread

Pressure connection 2
3/4 inch internal thread

Type
PAC 2-40

Weight (kg)
17,297

Operating pressure (bar)
350

Suction connection
1 1/2 inch internal thread

Max. pressure (bar)
500

Material housing
cast steel

Construction
straight

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm
