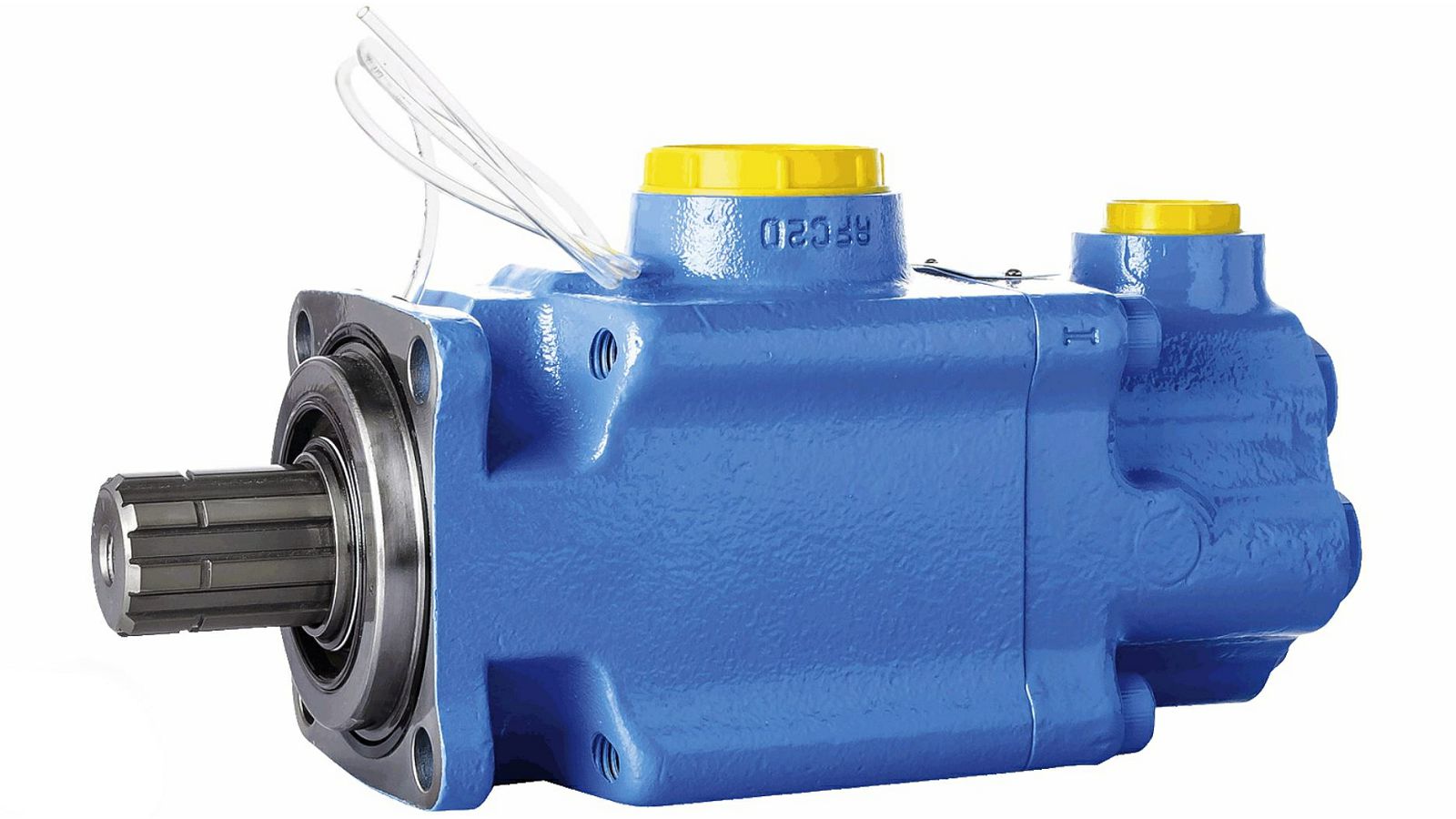

PUMPA PA80, 1500rpm, cm3/r:82 - HYDRO LEDUC

0511535
61100011100
PA80

5-piston pump
Operating pressure (bar): 350
Max. revolution (rpm) :1500
Direction of rotation changeable: no
Max. pressure (bar): 500
Delivery rate (cm3/r): 82
Direction of rotation: left/right
Standard drive DIN: 5462
Material housing: cast steel
Construction: straight
Type: PA 80
Specification drive: shaft 8x32x36
Assembly flange drive: 4-hole 80x80 mm
Suction connection: 2 inch internal thread
Pressure connection: G 3/4 inch internal thread
