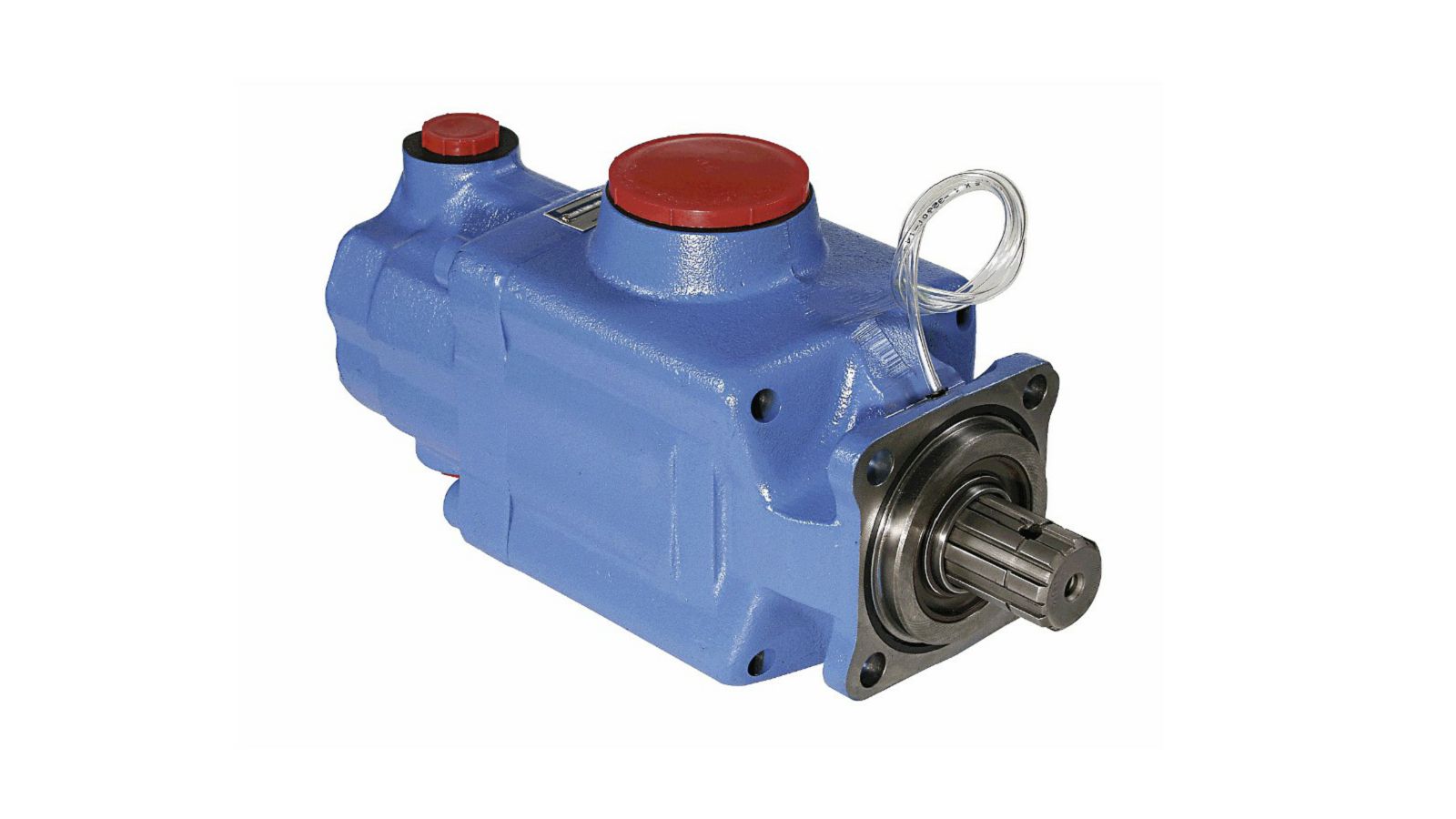

PUMPA PA 2-50 PROMJENJIVI SMJER - HYDRO LEDUC

0511555
61100012000

-----------

Assembly flange drive
4-hole 80x80 mm

Brand
Leduc

Construction form
straight

Delivery rate 1 (cm3/r)
52

Delivery rate 2 (cm3/r)
52

Direction of rotation
left=right

Material housing
cast steel

Max. pressure (bar)
500

Max. revolution (rpm)
1400

Operating pressure (bar)
400

Pressure connection 1
3/4 inch internal thread

Pressure connection 2
3/4 inch internal thread

Specification drive
shaft 8x32x36

Standard drive
DIN 5462

Suction connection
2 inch internal thread

Type
PA 2-50

Weight (kg)
23,5
