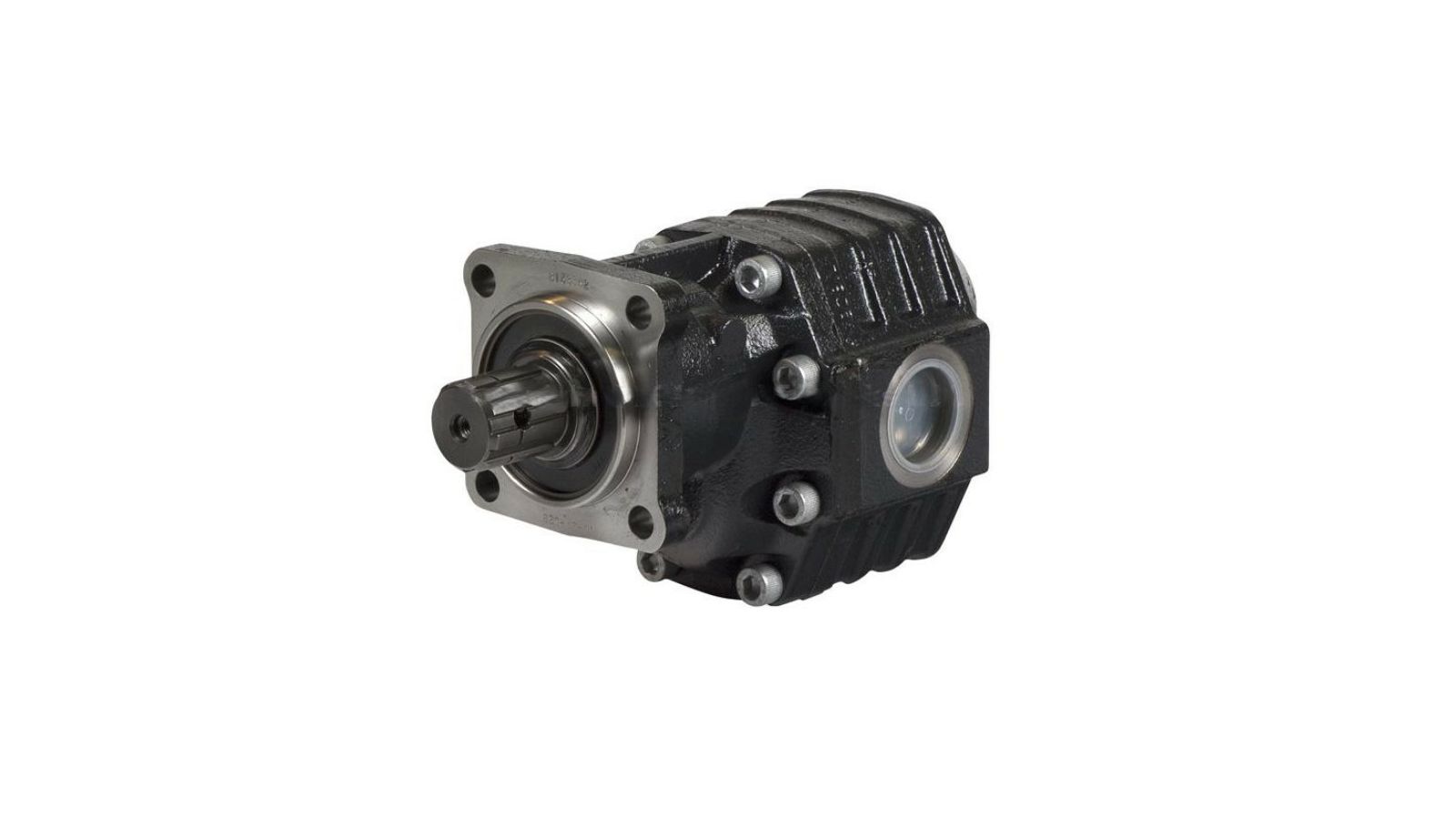

PUMPA NPH 82 ISO, LIJEVA - OMFB

10501110833
1527304 DAF
22247082 LIWA
DPA30-82CCW
NPH82SX

--------------

Max operating pressure (bar)
200.0

Pump type
Gear

Pump type
NPH 82

Rotation direction
Anti-clockwise, Left-hand drive

Max flow (L/min)
82

Displacement (cc)
81.08

ISO approval type
NPH 82

Flange type
4 holes flange

Shaft type
14 splined shaft

Maximum pressure (bar)
220.0

Weight (kg)
14.64

Suction hole size
G 1-1/4" (5/4")

Pressure hole size
2x G 3/4"

Shaft dimension
ISO 8x32x36

Flange
ISO

Maximum working/short-term pressure
205/230 bar

Maximum working/short-term speed
1900/2500 rpm

Product weight
15.50 kg
