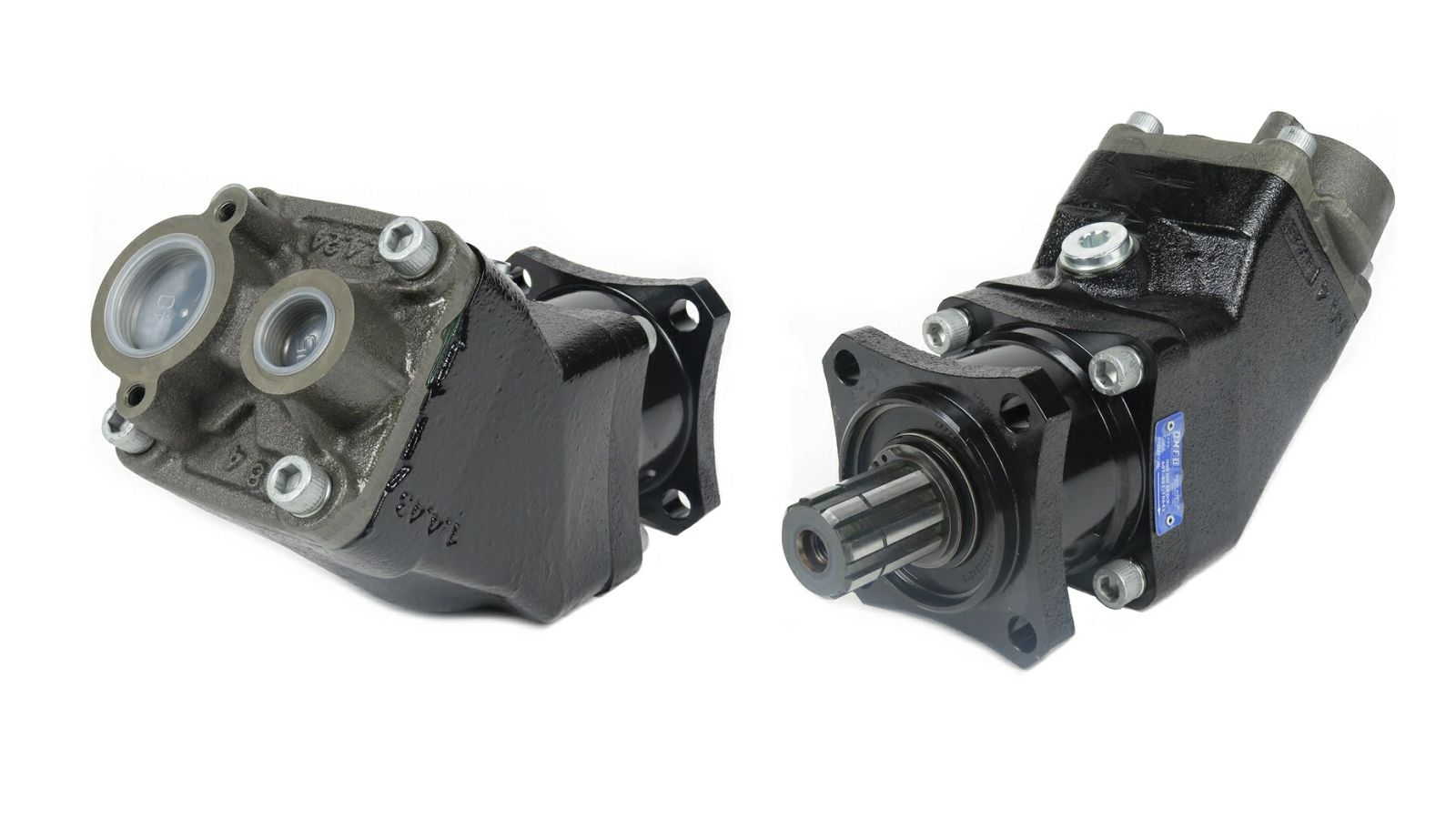

PUMPA HDS-64, DESNA - OMFB

60100110643
201FX064D7E
201FX064DXE
BI60M7
R902162394
31700642200
3.1.7.0.064.2.2.00
PZB EOS
1536602 DAF
HDS-64
108-015-06035
10801506035
A17FO063/10MLWK0E81-0
XPI63
0523760

---------------

Geometric volume
64 cm3

Shaft dimension
ISO 8x32x36

Direction of rotation
Right-handed , Clockwise

Flange
ISO

Maximum working/short-term pressure
350/400 bar

Suction hole size
G 1-1/4" (5/4")

Pressure hole size
G 3/4"

Maximum working/short-term speed
2700 rpm

Series
HDS

Manufacturer
OMFB

Product weight
12.20 kg

Pump type
HDS-64

Displacement (cc)
63.56

Flange type
4 holes flange

Shaft type
14 splined shaft

Maximum pressure (bar)
400.0
