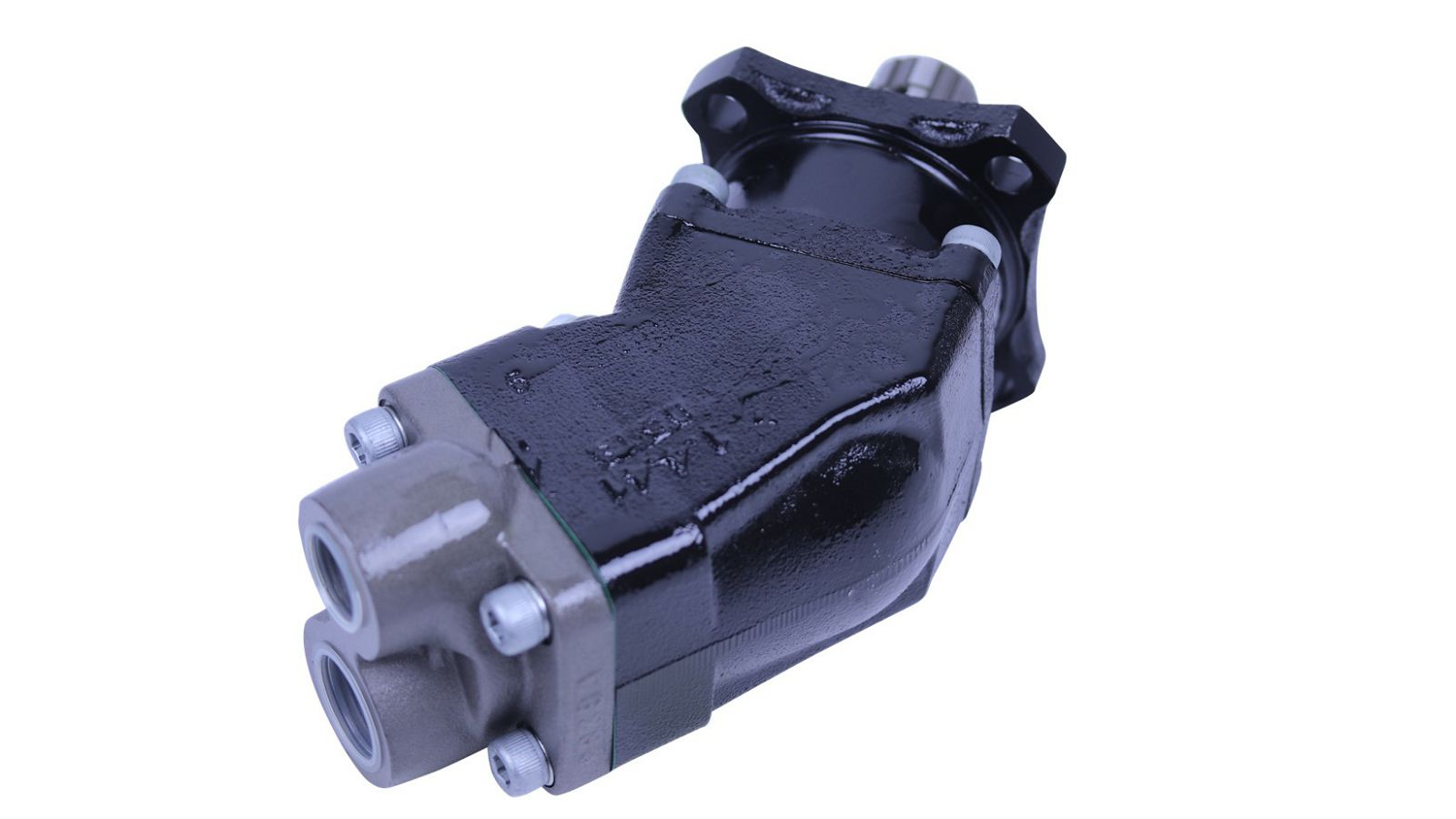

PUMPA HDS-12, 12,62cm3/r, DESNA - OMFB

60100110123
HDS12
1536590
0523820
Palfinger - EP1394
HDS12
Hydroleduc XPi12 0523820
SCP012 20472
SCP012 20472R
SAP012 23012
23012R
EP1394A
SUNFAB: SCP-012R-N-DL4-L35-S0S-000
SCP-012L-N-DL4-L35-S0S-000 SCP-012R-N-DL4-H35-S0S-000
SCP- 012L-N-DL4-H35-S0S-000,
PARKER:
F1-12-R
3782212
F1-12-L
3782211

------------------

Pump type
HDS-12

Rotation direction
Clockwise

Displacement (cc)
12.62

Flange type
4 holes flange

Shaft type
14 splined shaft

Maximum pressure (bar)
400.0

Weight (kg)
8.75

Thread O, inlet (inch)
1

Thread O, outlet (inch)
3/4

Max. continuous speed
2300rpm
