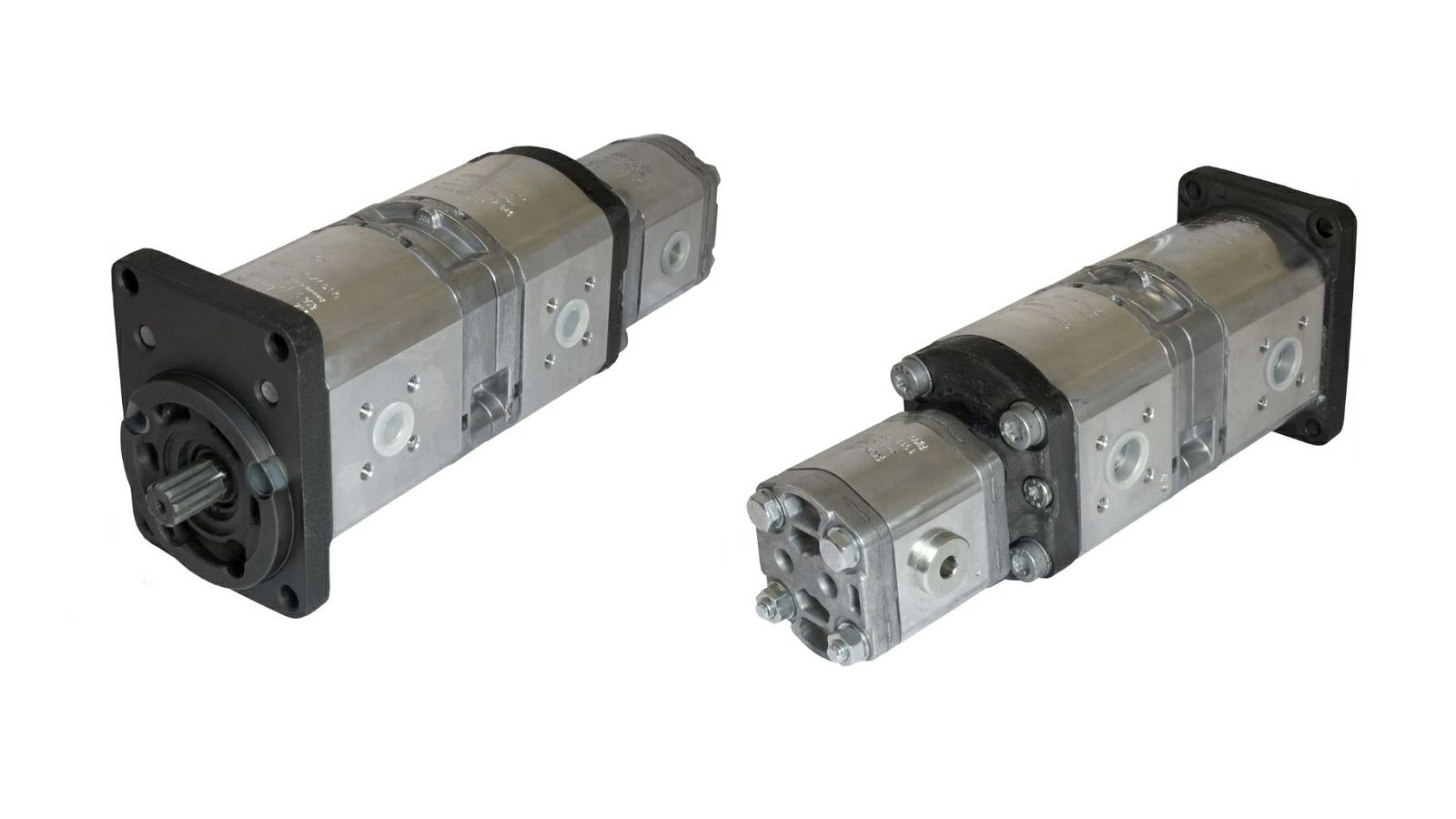

PUMPA FENDT, 19/11/2cm3/r, LIJEVA - BOSCH REXROTH

0510666303
514100490160 FENDT
F180860010030 FENDT
G385940100010
AZPFFB-10-019/011/2,0LFB202002MB-S0218
62000005300

---------

Weight (kg)
7,164

Brand
Bosch-Rexroth

Operating pressure (bar)
210

Manufactured size
F

Max. revolution (rpm)
3000

Max. pressure (bar)
250

Material housing
aluminum

o shaft/hub (mm)
16,5

Center o flange (mm)
80

Direction of rotation
left

Version
triple pump

Delivery volume (cm3/r)
19/11/2

Specification drive
shaft DIN 5482 B 17x14

o suction connection (mm)
20

Mounting suction connection
hole circle 40 mm M 6

o pressure connection (mm)
15

Mounting pressure connection
hole circle 35 mm M 6

Optional equipment valve
without valve

Assembly flange drive
4-hole 72x100 mm M 8
