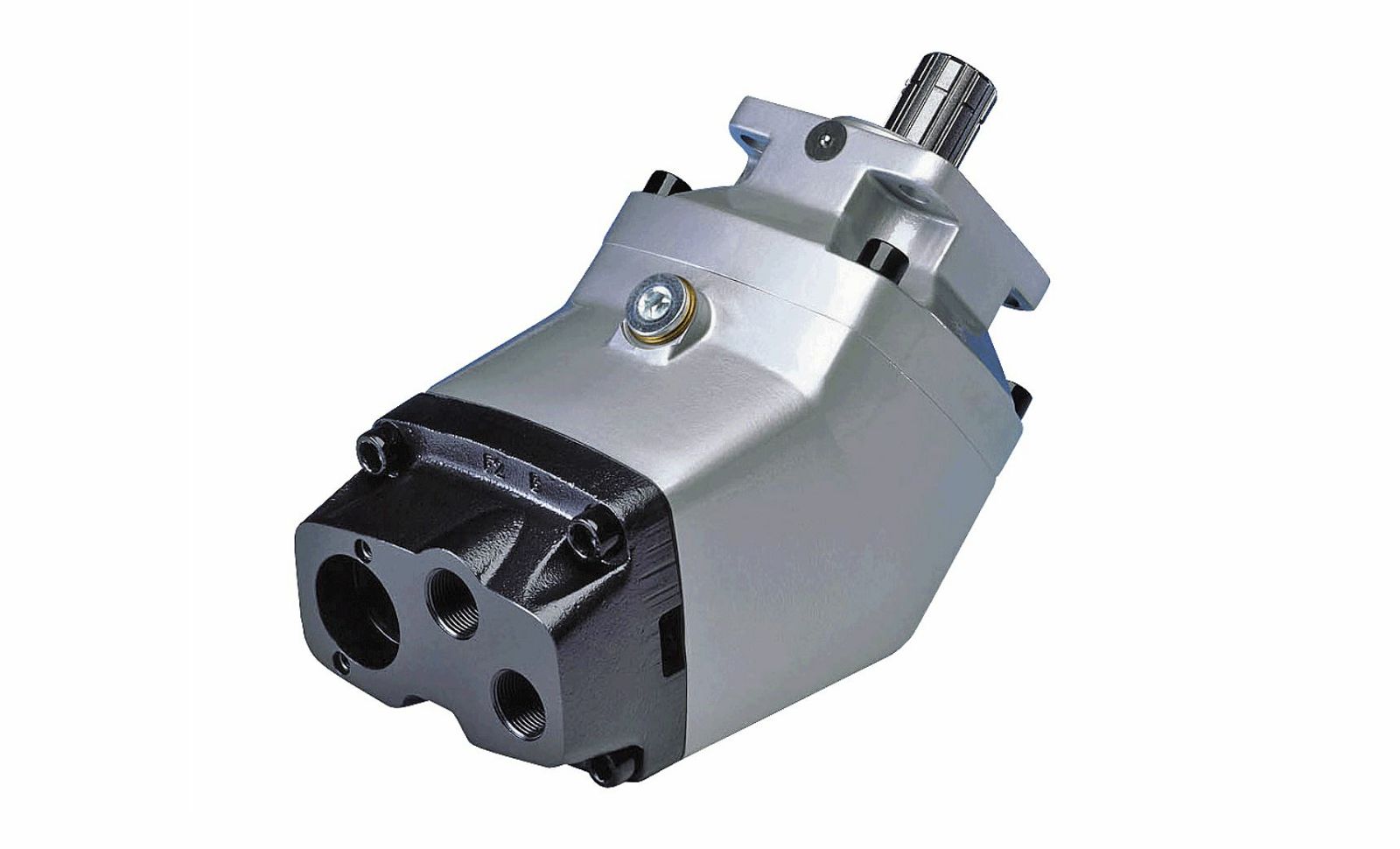

PUMPA F2-70/70-R, 68cm3/r - PARKER

3784070
F2-70/70-R
F27070R
0516100 LEDUC
60400117073 - OMFB Twin-Flow 70/70R ISO
60400117673
23334 - Sunfab
SCPD-76/76R-N-DL4-L35-S0S-200
61100150600

--------------

Max. revolution (rpm)
1650

Direction of rotation changeable
no

Direction of rotation
right

Standard drive DIN
5462

Delivery rate 1 (cm3/r)
68

Delivery rate 2 (cm3/r)
68

Pressure connection 1
3/4 inch internal thread

Pressure connection 2
3/4 inch internal thread

Type
F2-70/70-R

Assembly flange drive
4-hole 80x80 mm

Weight (kg)
18

Operating pressure (bar)
300

Brand
Parker

Suction connection
clamped

Max. pressure (bar)
350

Material housing
aluminum

Construction
inclined axis

Specification drive
shaft 8x32x36
