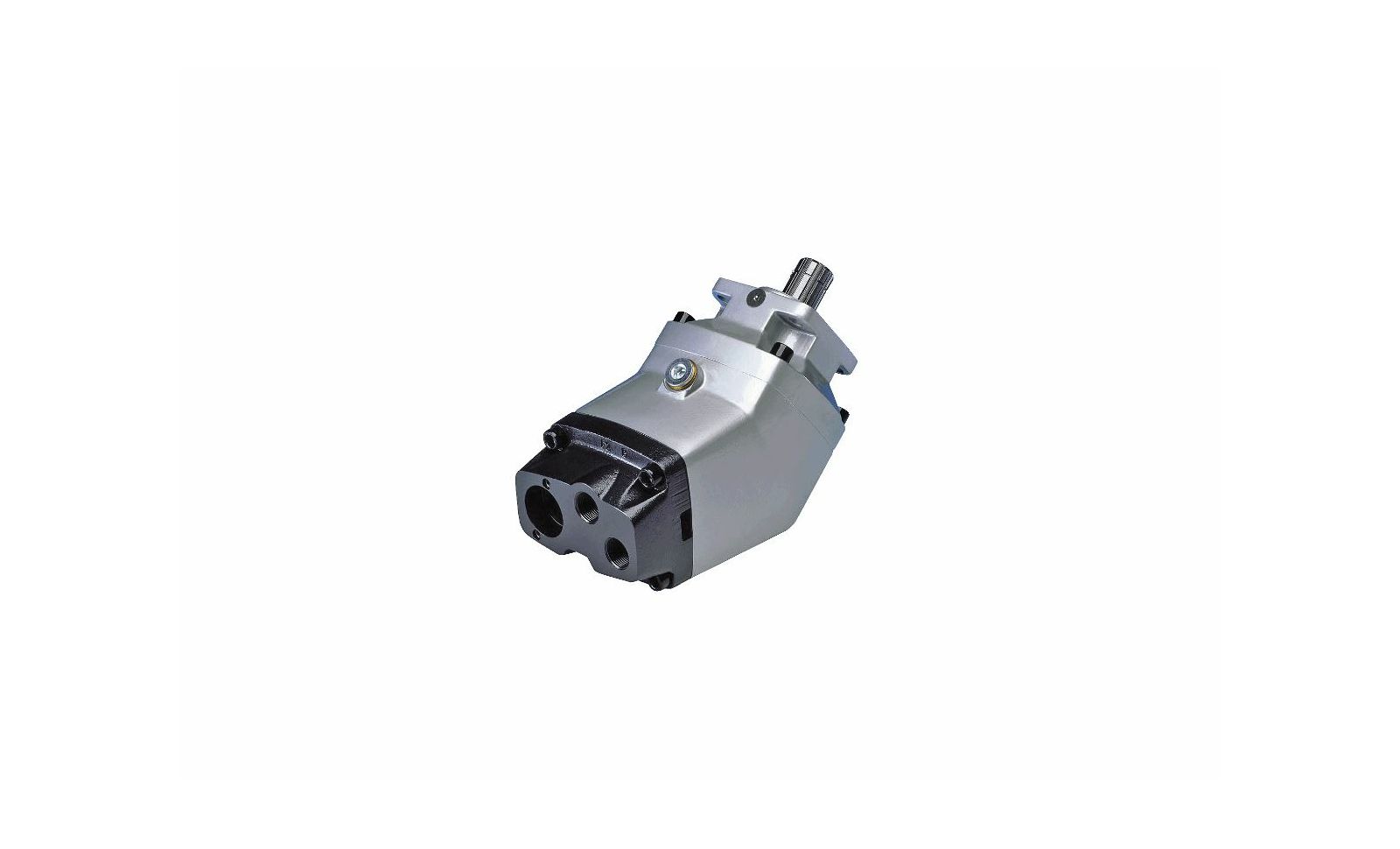

PUMPA F2-70/35-L, 69cm3/r - PARKER

3781471
F2-70/35-L
61192590200



Max. revolution (rpm)
1800

Direction of rotation changeable
no

Direction of rotation
left

Standard drive DIN
5462

Delivery rate 1 (cm3/r)
69

Delivery rate 2 (cm3/r)
36

Pressure connection 1
3/4 inch internal thread

Pressure connection 2
3/4 inch internal thread

Type
F2-70/35-L

Assembly flange drive
4-hole 80x80 mm

Weight (kg)
18,5

Operating pressure (bar)
350

Brand
Parker

Suction connection
clamped

Max. pressure (bar)
400

Material housing
aluminum

Construction
inclined axis

Specification drive
shaft 8x32x36
