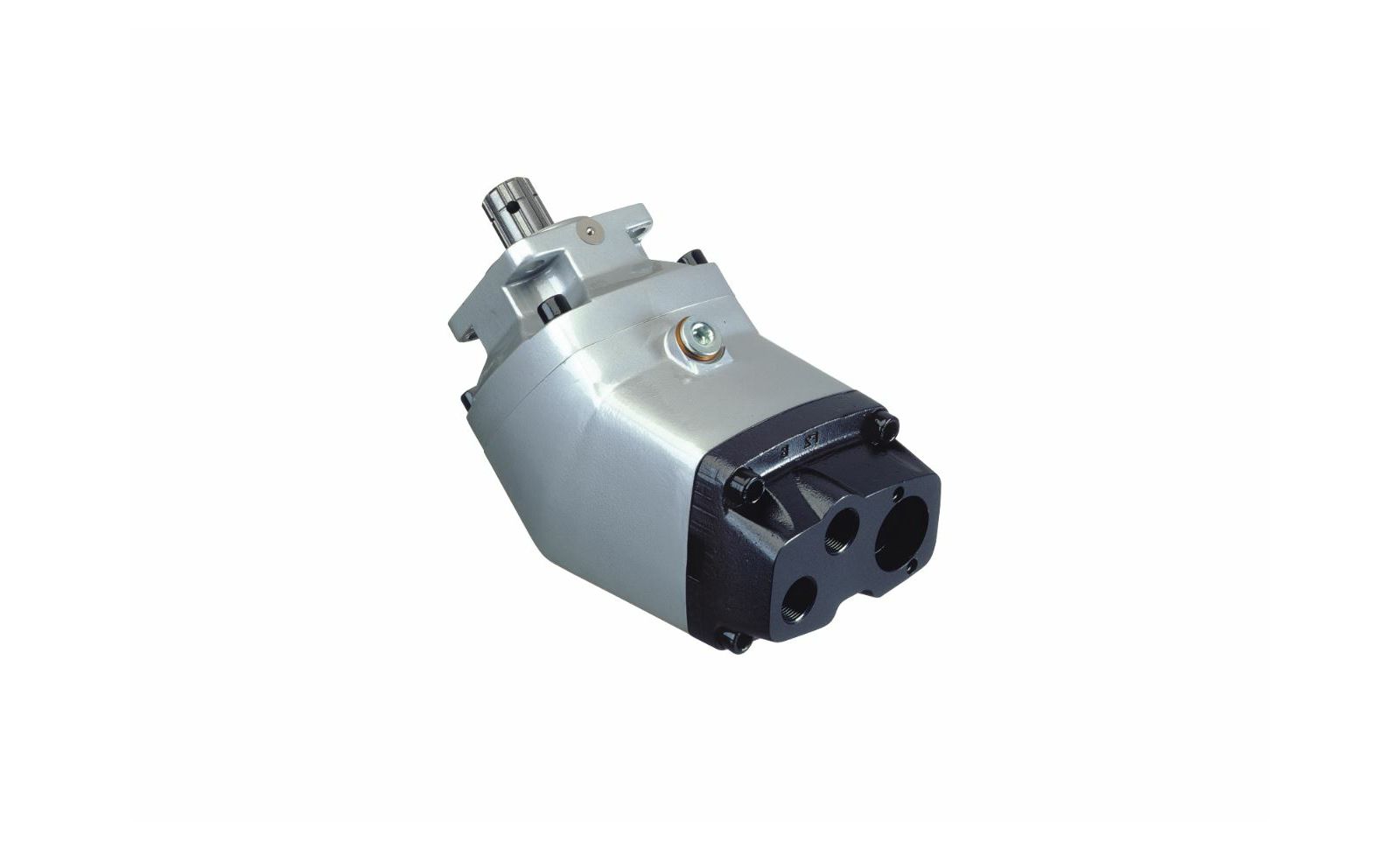

PUMPA F2-42/42-R, 42cm3/r - PARKER

3784042
F2-42/42-R
F24242R



Max. revolution (rpm)
1800

Direction of rotation changeable
no

Direction of rotation
right

Standard drive DIN
5462

Delivery rate 1 (cm3/r)
42

Delivery rate 2 (cm3/r)
42

Pressure connection 1
3/4 inch internal thread

Pressure connection 2
3/4 inch internal thread

Type
F2-42/42-R

Assembly flange drive
4-hole 80x80 mm

Weight (kg)
19

Operating pressure (bar)
350

Brand
Parker

Suction connection
clamped

Max. pressure (bar)
400

Material housing
aluminum

Construction
inclined axis

Specification drive
shaft 8x32x36
