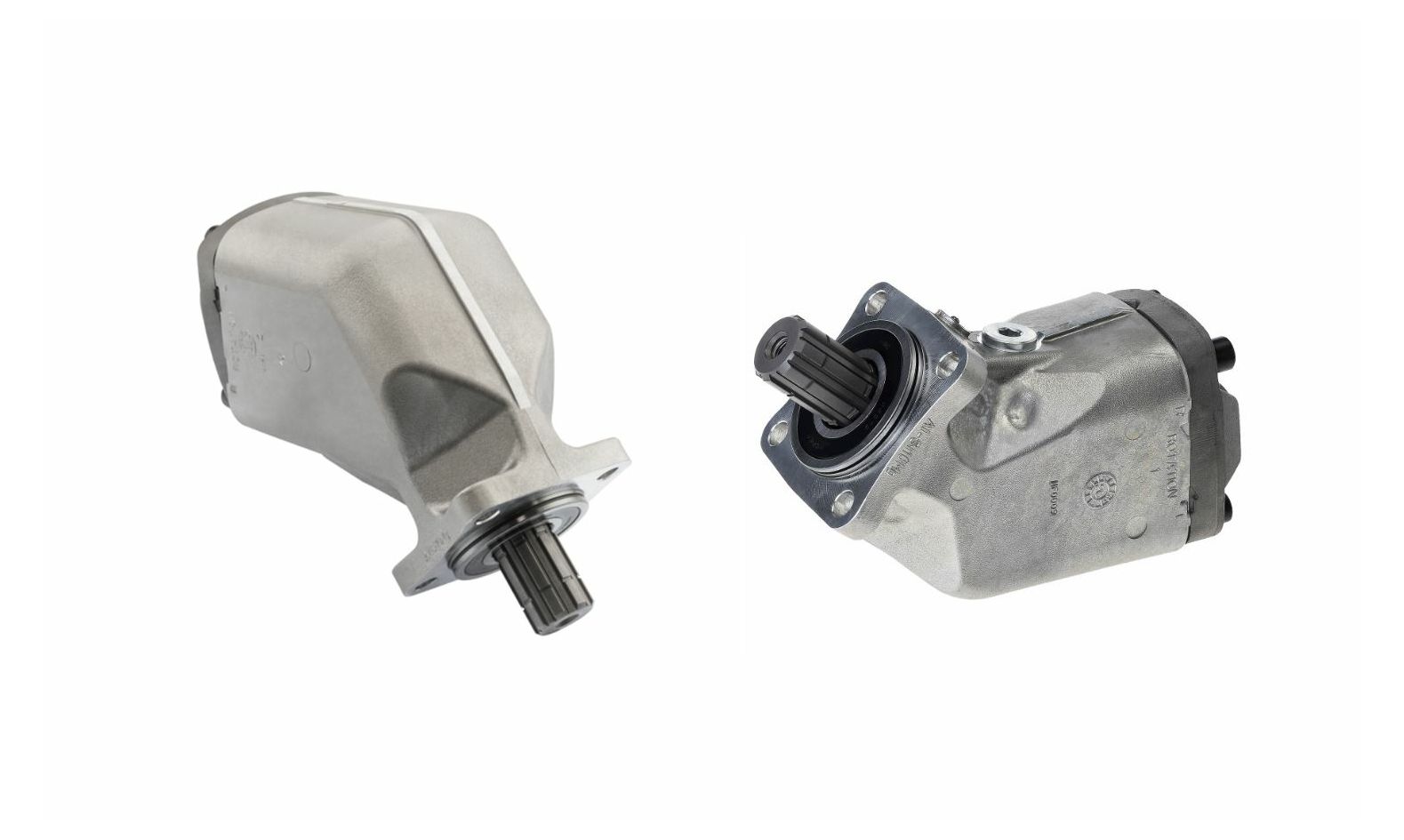

PUMPA F1-61-L,59,5cm3/r, RPM 2400, rupe 80x80, LIJEVA - PARKER

F1-61-L
3781061
XPI63
0523760
61100352500
EP1400A (U)
desno SCP-064R-N-DL4-L35-S0S-000
lijevo SCP-064L-N-DL4-L35-S0S-000
desno SCP-064R-N-DL4-H35 -S0S- 000
lijevo SCP-064L-N-DL4-H35-S0S-000
Parker: desno F1-61-R 3781060
lijevo F1-61-L 3781061
Rexroth: desno A17FO063/10NRWK0E81-0
lijevo A17FO063/10NLWK0E81-0
EP872
R902162394
F161L



Max. revolution (rpm): 2400
Direction of rotation changeable: yes
Delivery rate (cm3/r): 59.5
Direction of rotation: left
Standard drive DIN: 5462
Pressure connection: G 3/4 inch internal thread
Type: F1-61-L
Assembly flange drive: 4-hole 80x80 mm
Weight (kg): 10.368
Brand Parker
Suction connection: plugged in
Material housing: aluminum
Construction: inclined axis
Specification drive: shaft 8x32x36
