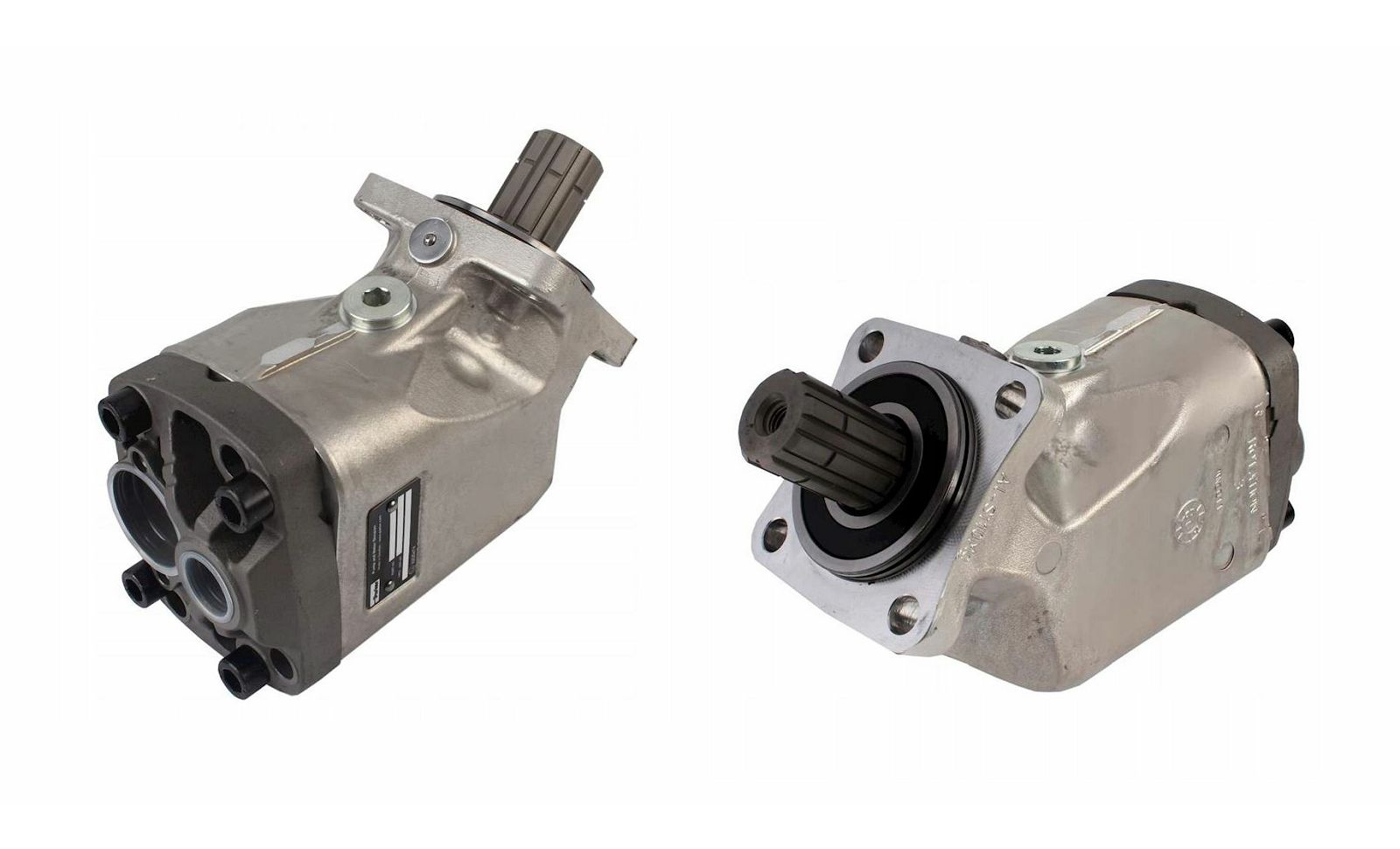

PUMPA F1-51-L, 51,1cm3/r, LIJEVA - PARKER (SCH)

3781051
F1-51-L
F01-51-L
F151L
0523770
EP1399A
EP1401A
lijevo F1-51-L, 3781051
F1-51-R 3781050
desno A17FO45/10NRWK0E81-0, lijevo A17FO45/10NLWK0E81-0
desno SCP-047R-N-DL4-L35-S0S-000, lijevo SCP-047L-N-DL4-L35-S0S-000
desno SCP-047R-N-DL4-H35- S0S-000 lijevo SCP-047L-N-DL4-H35-S0S-000
desno SCP-056R-N-DL4-L35-S0S-000 lijevo SCP-056L-N-DL4-L35-S0S-000
desno SCP-056R- N -DL4-H35-S0S-000, lijevo SCP-056L-N-DL4-H35-S0S-000
F01051L
F1051L
42332 SCHWARZMULLER


Max. revolution (rpm)
2450

Direction of rotation changeable
yes

Delivery rate (cm3/r)
51,1

Direction of rotation
left

Standard drive DIN
5462

Pressure connection
G 3/4 inch internal thread

Type
F1-51-L

Assembly flange drive
4-hole 80x80 mm

Weight (kg)
8,5

Operating pressure (bar)
350

Brand
Parker

Suction connection
plugged in

Max. pressure (bar)
400

Material housing
aluminum

Construction
inclined axis

Specification drive
shaft 8x32x36
