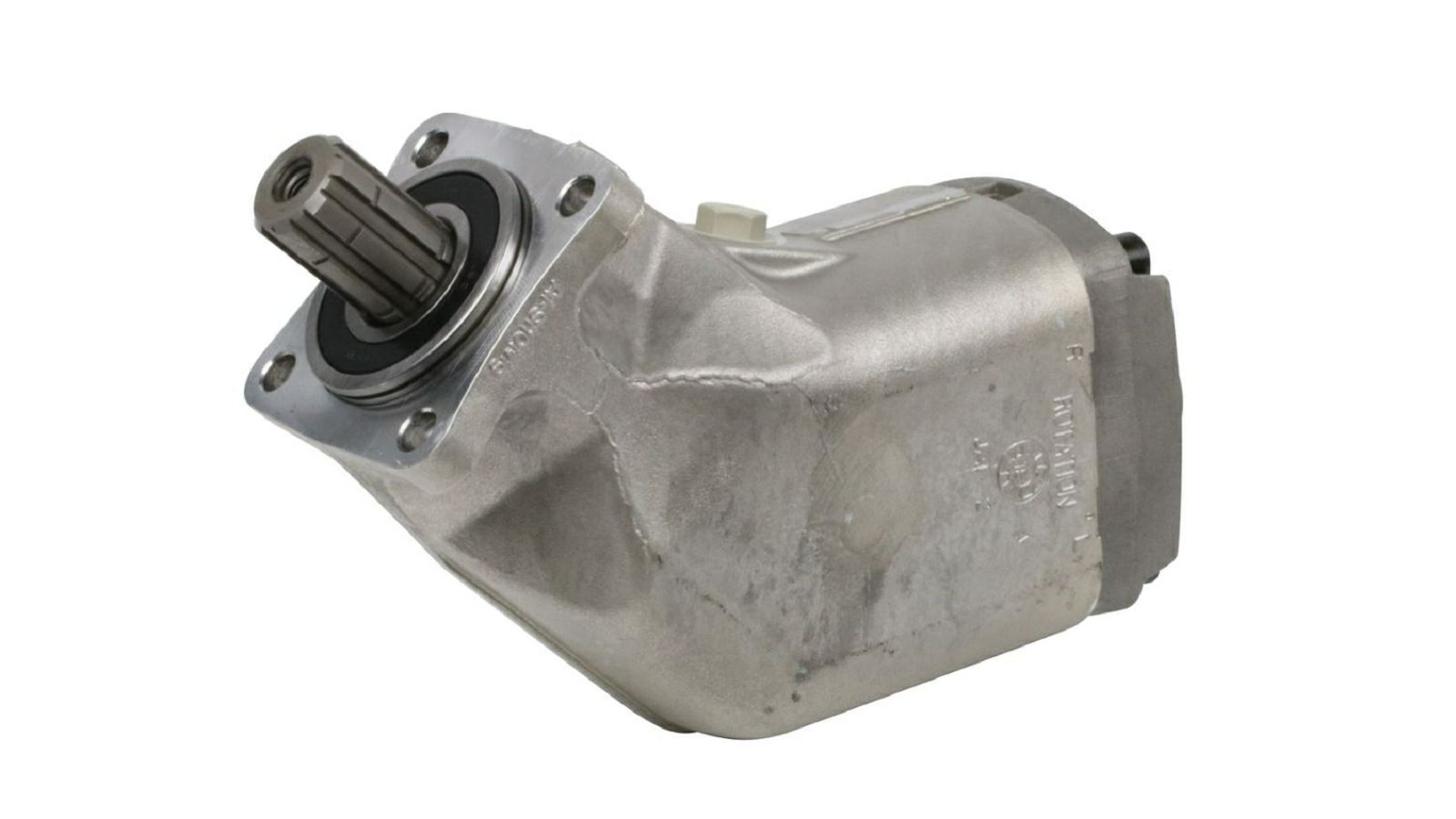

PUMPA F1-121, 118,5cm3/r - PARKER

3784120
F1-121
F1121
F1-121-M
61100173300


FI shaft/hub (mm)
34,9

Weight (kg)
13,296

Power (kW)
51

Brand
Parker

Operating pressure (bar)
250

Max. torque (Nm)
658

Max. revolution (rpm)
1700

Max. pressure (bar)
350

Displacement (cm3/r)
118,5

Material housing
aluminum

Type
F1-121

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm

Oil connection A
1 inch internal thread

Oil connection B
1 inch internal thread

Leakage oil connection
1/2 inch internal thread
