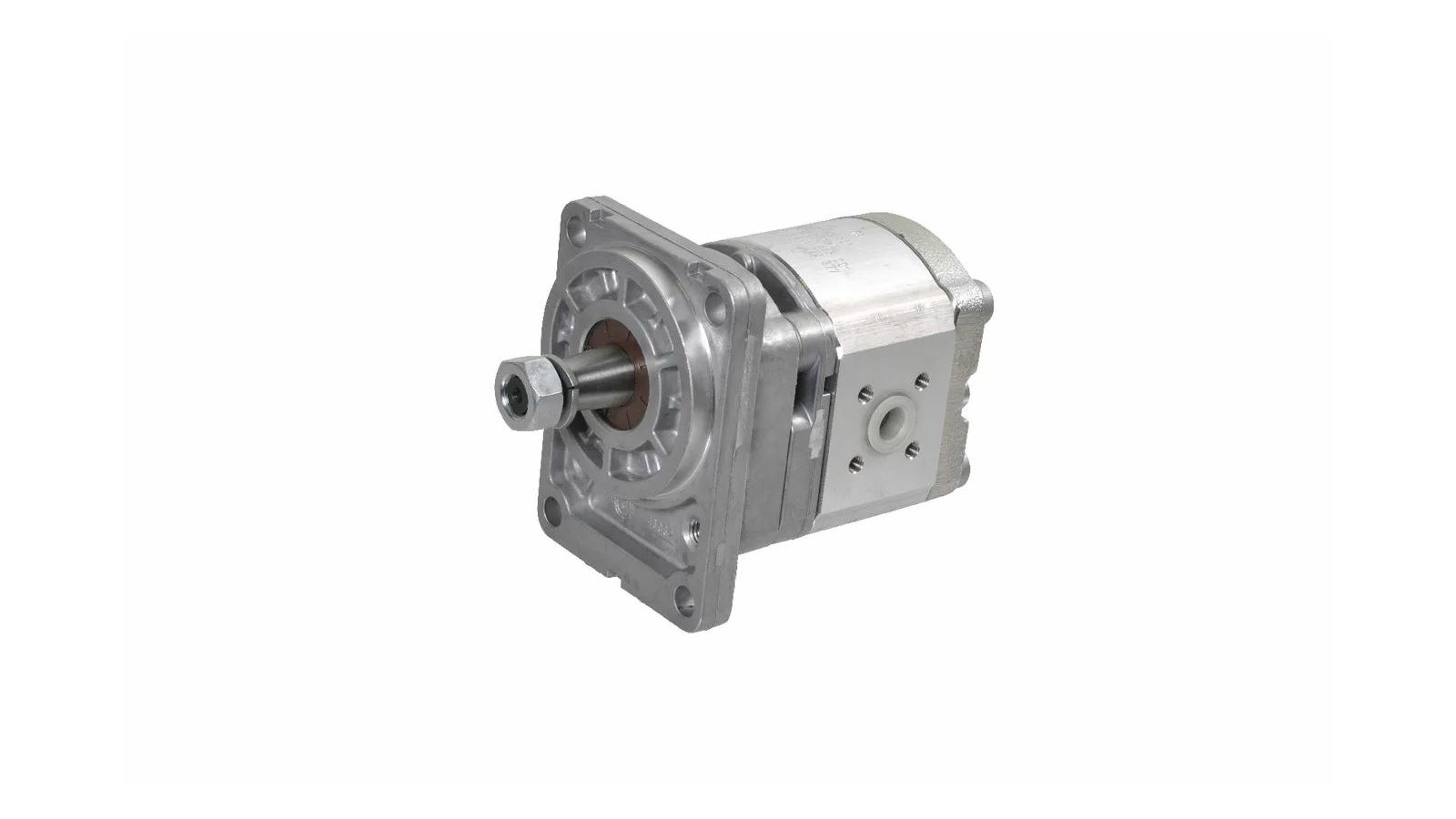

PUMPA DEUTZ, 8cm3/r, DESNA - BOSCH REXROTH

0510445001
0510345001
AZPF-12-008RSA20MB
62000037200

--------------

Weight (kg)
3,319

Brand
Bosch-Rexroth

Operating pressure (bar)
250

Manufactured size
F

Max. revolution (rpm)
4000

Max. pressure (bar)
280

Material housing
aluminum

o shaft/hub (mm)
20

Center o flange (mm)
80

Direction of rotation
right

Version
single pump

Delivery volume (cm3/r)
8

Specification drive
conical 1:5 for flange A

o suction connection (mm)
20

Mounting suction connection
hole circle 40 mm M 6

o pressure connection (mm)
15

Mounting pressure connection
hole circle 35 mm M 6

Optional equipment valve
without valve

Assembly flange drive
quadratic flange for ISO8434-1 screw connection
