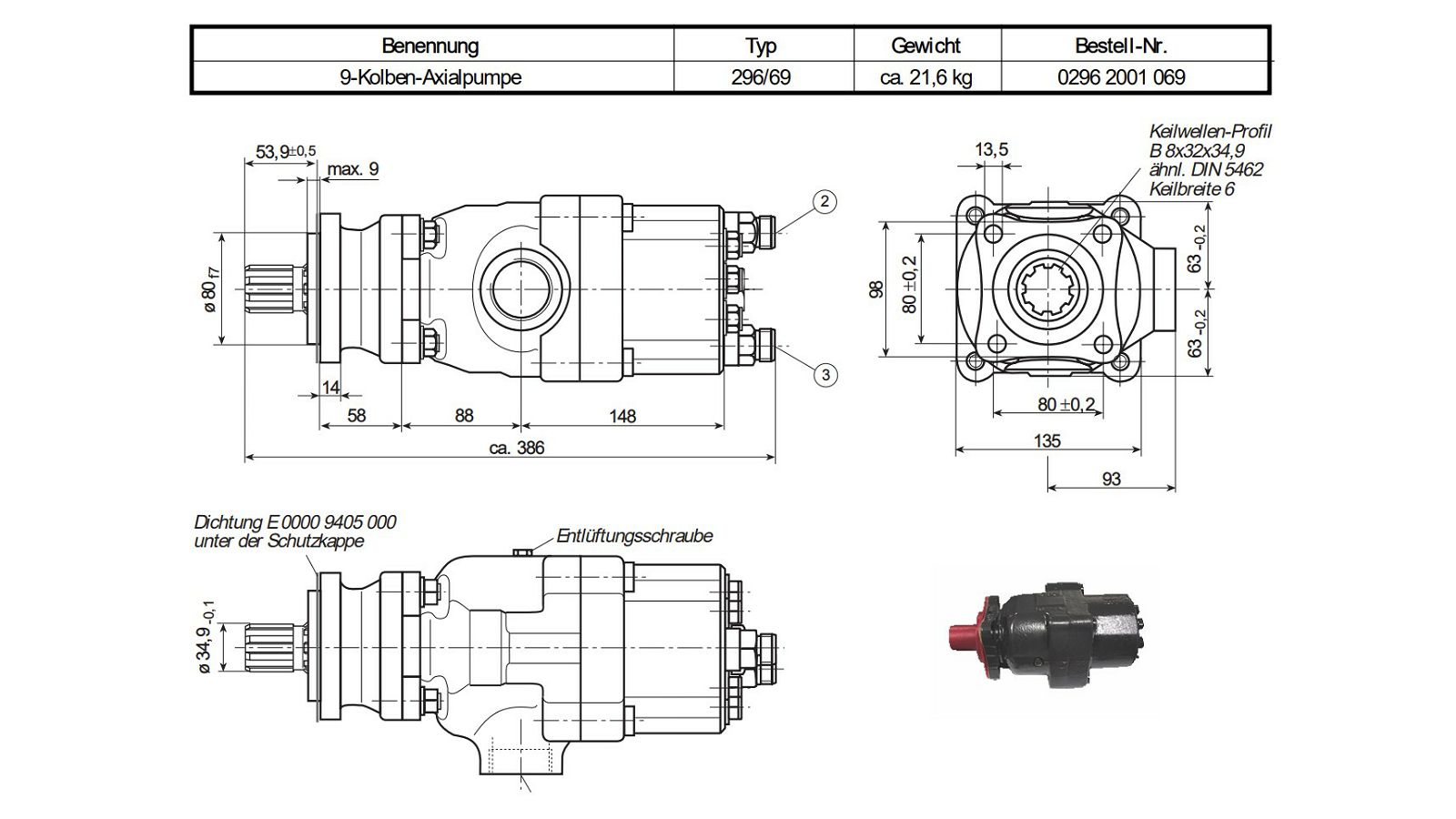

PUMPA 296/69, 77cm3/r, 38,5cm3/r - MEILLER

02962001069
296/69
61102598500

-----------

Assembly flange drive
4-hole 80x80 mm

Brand
Meiller

Construction form
straight

Delivery rate 1 (cm3/r)
77

Delivery rate 2 (cm3/r)
38,5

Direction of rotation
left
right

Direction of rotation changeable
yes

Info 1
self-priming

Material housing
cast steel

Max. pressure (bar)
350

Max. revolution (rpm)
1600

Operating pressure (bar)
275

Pressure connection 1
M 24x1.5 external thread

Pressure connection 2
M 24x1.5 external thread

Specification drive
shaft 8x32x36

Standard drive
DIN 5462

Suction connection
M 45x2 internal thread

Weight (kg)
21,6
