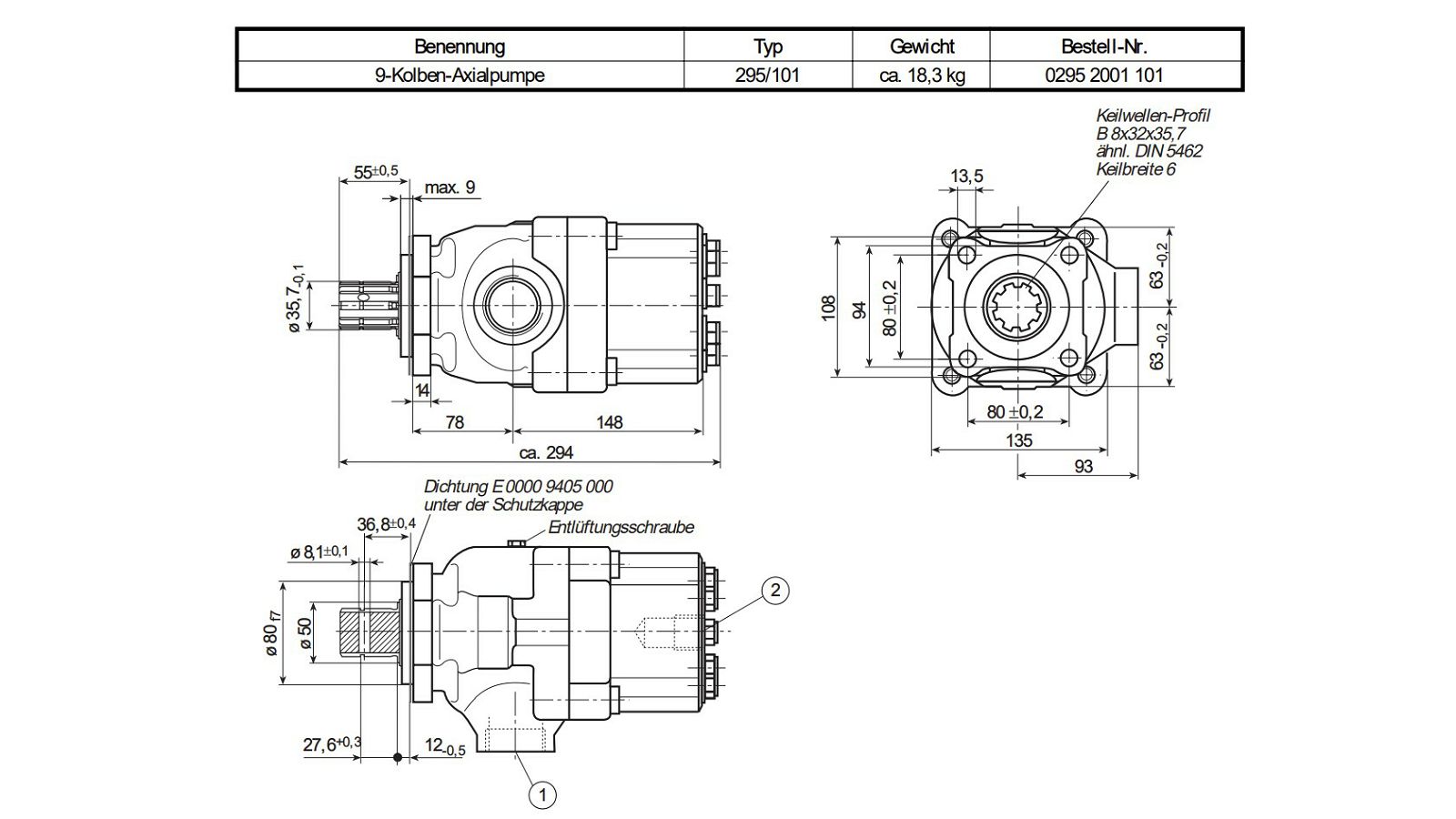

PUMPA 295/101, 78cm3/r - MEILLER

02952001101
295/101
61102597500

----------

Assembly flange drive
4-hole 80x80 mm

Brand
Meiller

Construction form
straight

Delivery rate (cm3/r)
78

Direction of rotation
left
right

Direction of rotation changeable
no

Info 1
self-priming

Material housing
cast steel

Max. pressure (bar)
350

Max. revolution (rpm)
2400

Operating pressure (bar)
350

Pressure connection
M 27x2 internal thread

Specification drive
shaft 8x32x36

Standard drive
DIN 5462

Suction connection
M 45x2 internal thread

Weight (kg)
18,3
